Automatic digital battery charger SMART NC-SC6E 12V-24V 1A/3A/6A 42909

Universal automatic digital charger for various batteries (acid Wet, MF, Gel, AGM, deep cycle), which greatly extends the service life of batteries, especially in the winter period.
Made using the latest technology, the charger can practically charge the battery to 100% of its original capacity.
The charger also has a regeneration (desulphation) program. This program is used to remove sulphates from the lead plates and restore the battery capacity, if possible (without the plates collapsing and falling to the bottom), when the normal charging program does not work.
Using a regular charger often overcharges (overcharges) the battery, which greatly shortens its lifespan. Using this charger correctly will never overcharge the battery, which will help it last longer.

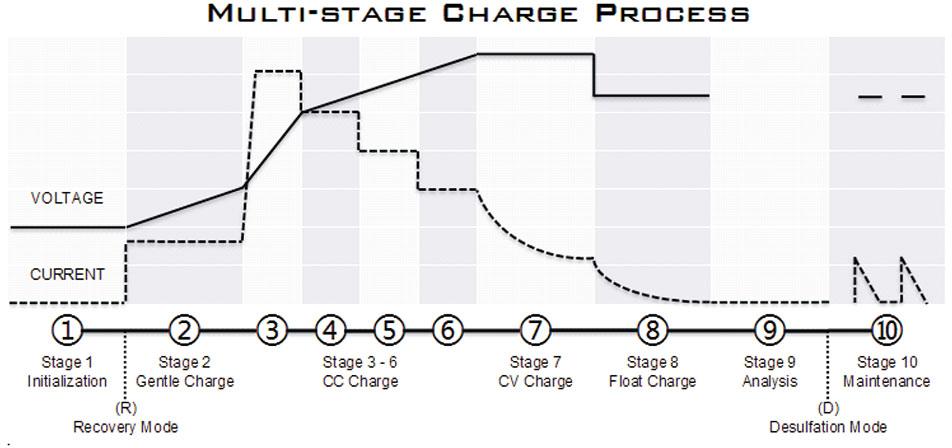

A 10-phase system operates when charging the battery:

Phase 1 - initialization. Battery condition is checked, charging process selection. If it is determined that the battery is deeply discharged, the recovery mode (R) is activated.
Phase 2 - gentle charge, starting a charge mode with a low current to excite the battery and avoid sudden charging.
Phases 3-6 – Constant Current (CC) charging. Charges up to 85% capacity. A separate charging current is selected for each phase.
Phase 7 – Constant Voltage (CV) charging. Charges to 95% capacity, gradually reducing the charging current, preventing boiling and extending the battery's lifespan.
Phase 8 – Slow (floating) constant voltage charge. Fully charges the battery.
Phase 9 – Analysis. It is checked whether the battery can hold a charge. If everything is in order, the charger moves to phase 10. If it is determined that the battery cannot hold a charge, the charger goes into desulfation mode, attempting to restore the battery’s condition.
Phase 10 – storage, maintenance mode. The battery condition is constantly monitored. If the voltage drops below a set level, a short-term charge is automatically activated, which charges the battery, but protects against overload.
This charger is especially suitable for rarely used batteries - you can simply connect the charger in the garage and leave it - when you want to drive - you can be sure that the car will start.

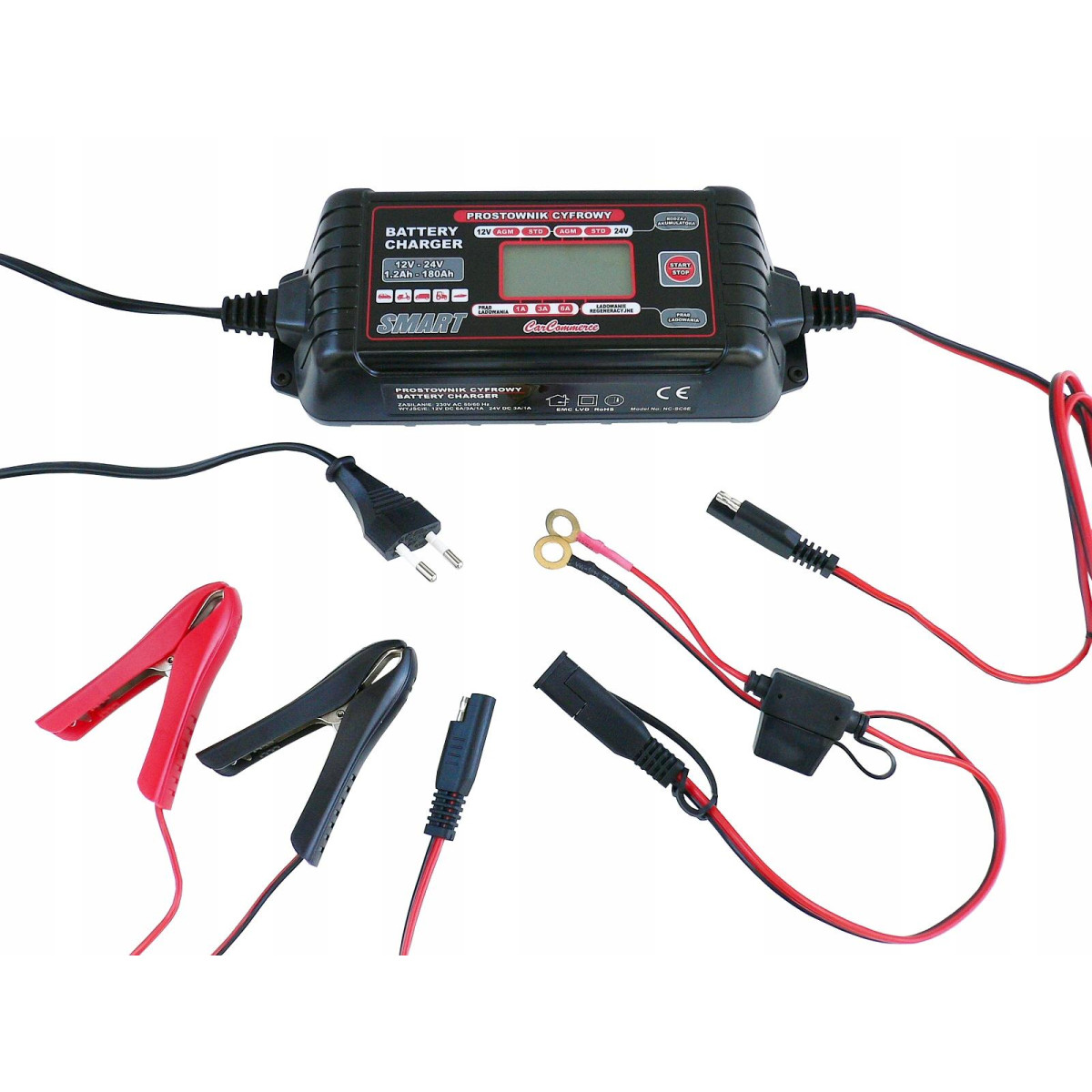

The charger has two types of quick-change cables: clips (crocodile clips) and round contacts for batteries with screw terminals.

Technical data:
Power supply voltage: 220-240V AC 50Hz.
Power supply: 110W.
Charging voltage: 28.8V/29.4V or 14.4V/14.7V.
Charging current: 6A (12V), 3A/1A (12V/24V). The current is automatically reduced at high temperatures.
Charging type: Multi-phase, fully automatic.
Rechargeable battery capacity: 1.2-180Ah (12V), 1.2-90Ah (24V).
Battery type: 12V & 24V lead acid Wet, MF, AGM, Gel.
Support (storage) mode capacity: up to 240Ah (12V), 120Ah (24V).
Protection class: IP65
Attention! It is necessary to read the instructions before using!
