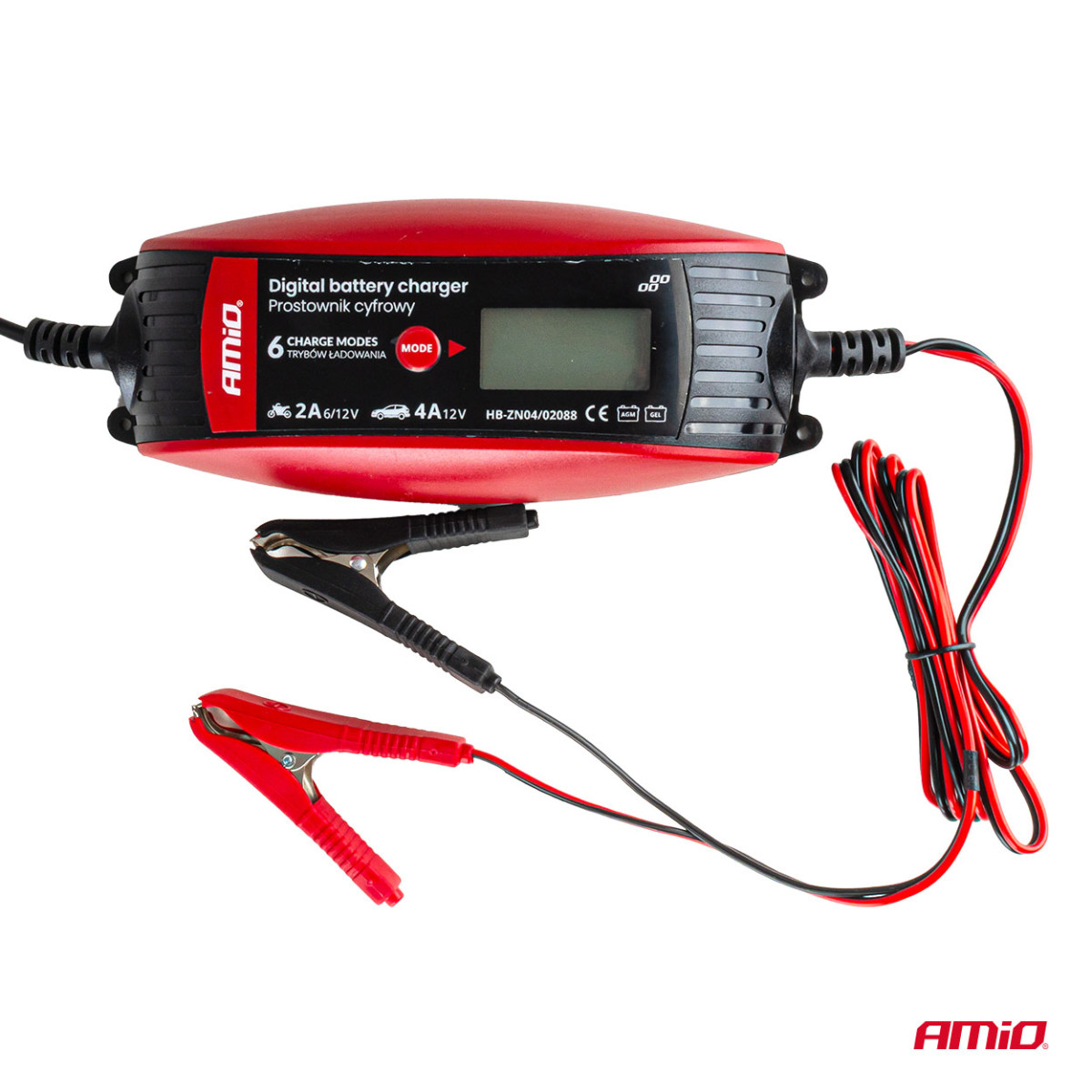

Digital battery charger DVL DBC 2A/4A 6V/12V AMIO-02088

Digital battery charger DVL DBC 2A/4A 6V/12V AMIO-02088

The DVL DBC 4A charger can charge various types of batteries:

• Lead acid (regular and MF)
• Ca/Ca
• AGM
• Gelinius

This is a microprocessor charger manufactured to the IP65 standard, making it resistant to dust ingress, splashes and low-pressure water jets.

The charger has protections against:

• short circuit
• incorrect battery connection (reverse polarity)
• open circuits
• sparking
• battery overcharge
• charger overload
• charger overheating

Charging modes:
6V batteries up to 14Ah

• 7.2V / 2A
• 7.4V/2A (low temperature charging)

12V batteries up to 14Ah or deeply discharged

• 14.3V / 2A
• 14.7V/2A (low temperature charging)

12V batteries over 14Ah

• 14.3V / 4A
• 14.7V/4A (low temperature charging)

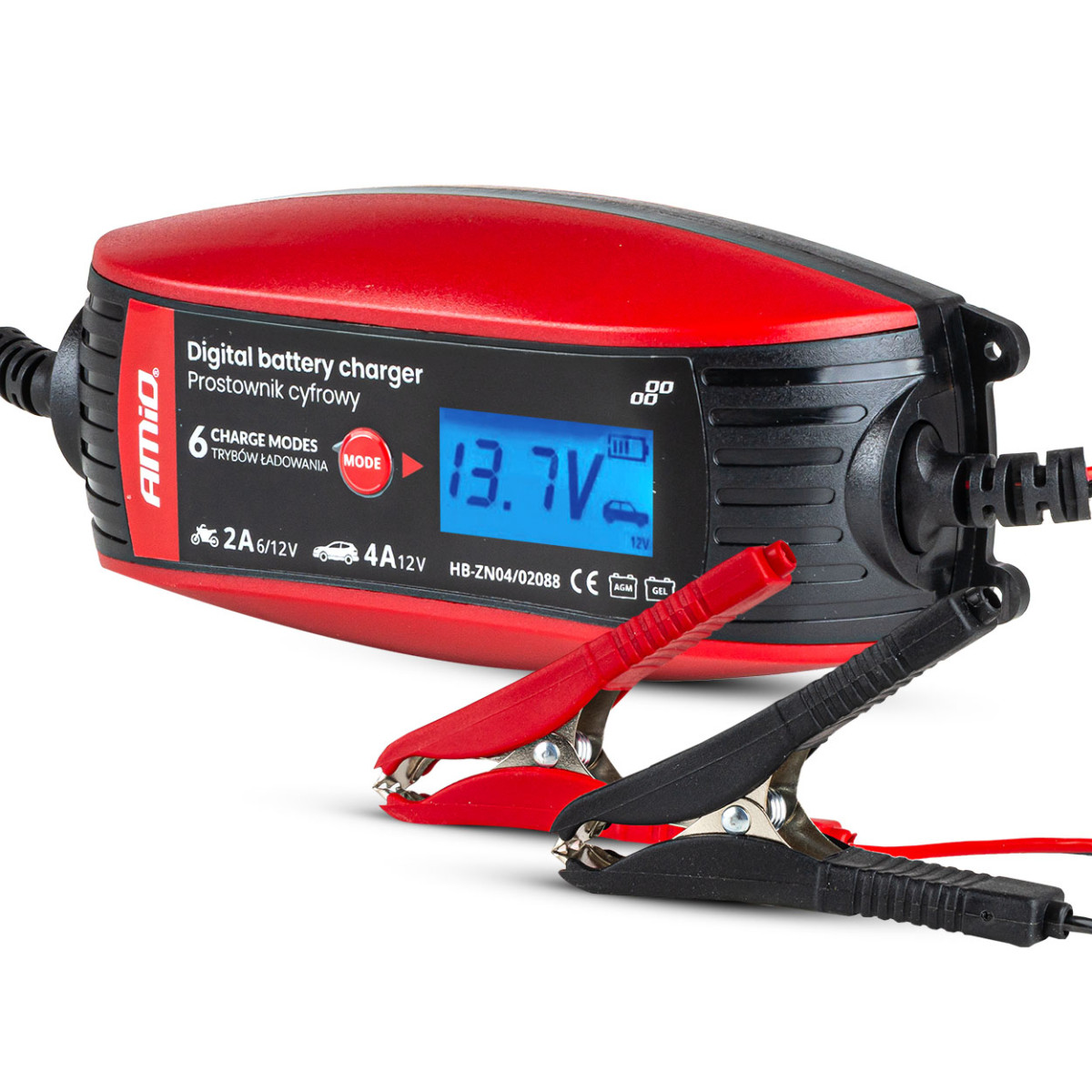

The charger continuously displays the battery voltage and charge level, automatically adjusting the charging current as needed. When the battery is charged, the message FULL appears on the display, and the voltage is maintained.

Specification:

• Input voltage: 230V / 50Hz
• Output voltage: 6V/12V
• Power consumption: approx. 60 W (standby 1 W)

Maximum charging voltage:

• 7.4V (for 6V batteries)
• 14.7V (for 12V batteries)

Maximum charging current:

• 2A ±10%
• 4A ±10%

Supported battery capacities:

• 6V: 1.2Ah – 14Ah
• 12V: 1.2Ah - 14Ah and 14Ah - 120Ah
• Protection class: IP65
• 6 charging programs, switched by the "TRYB PRACY" button
• Screen lighting
