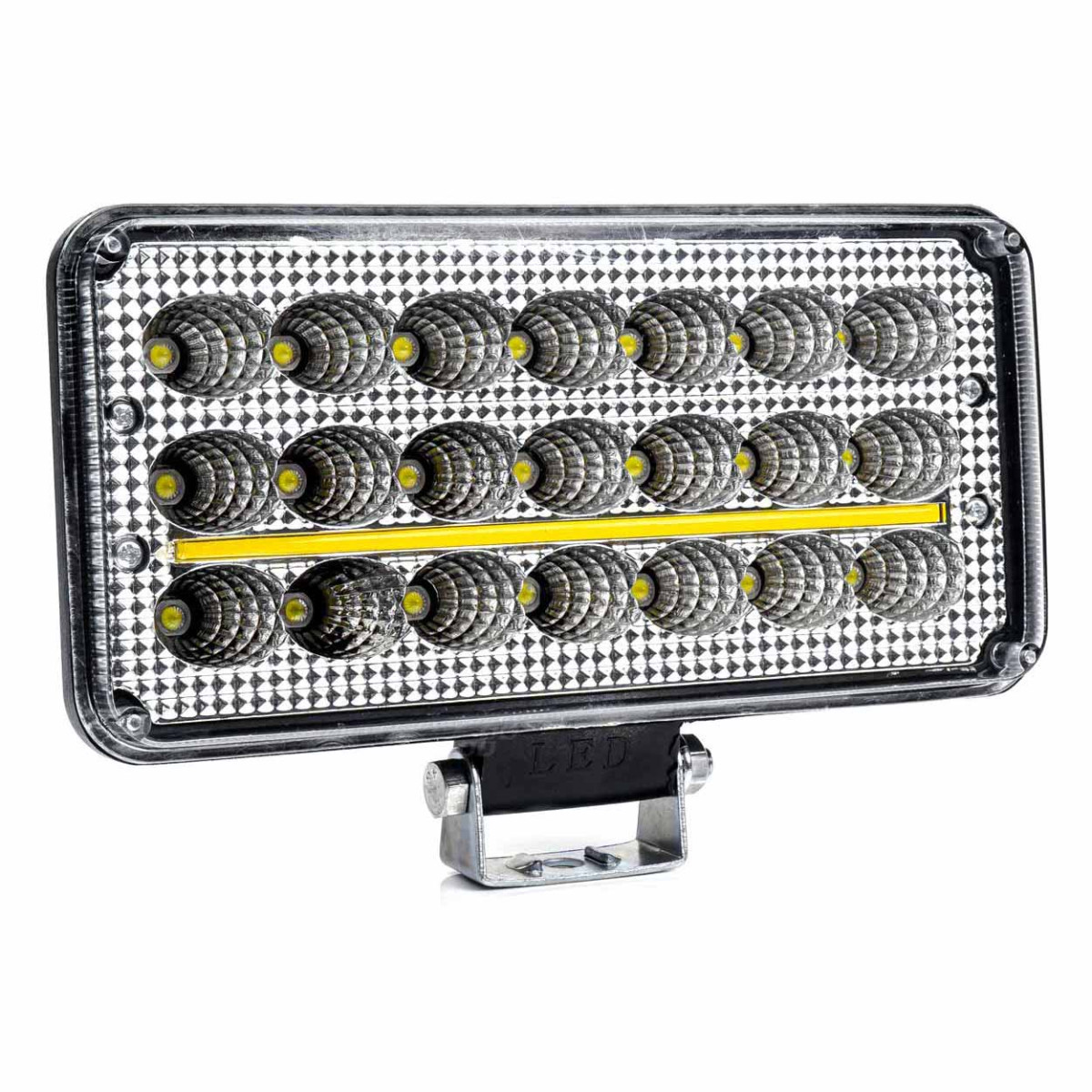

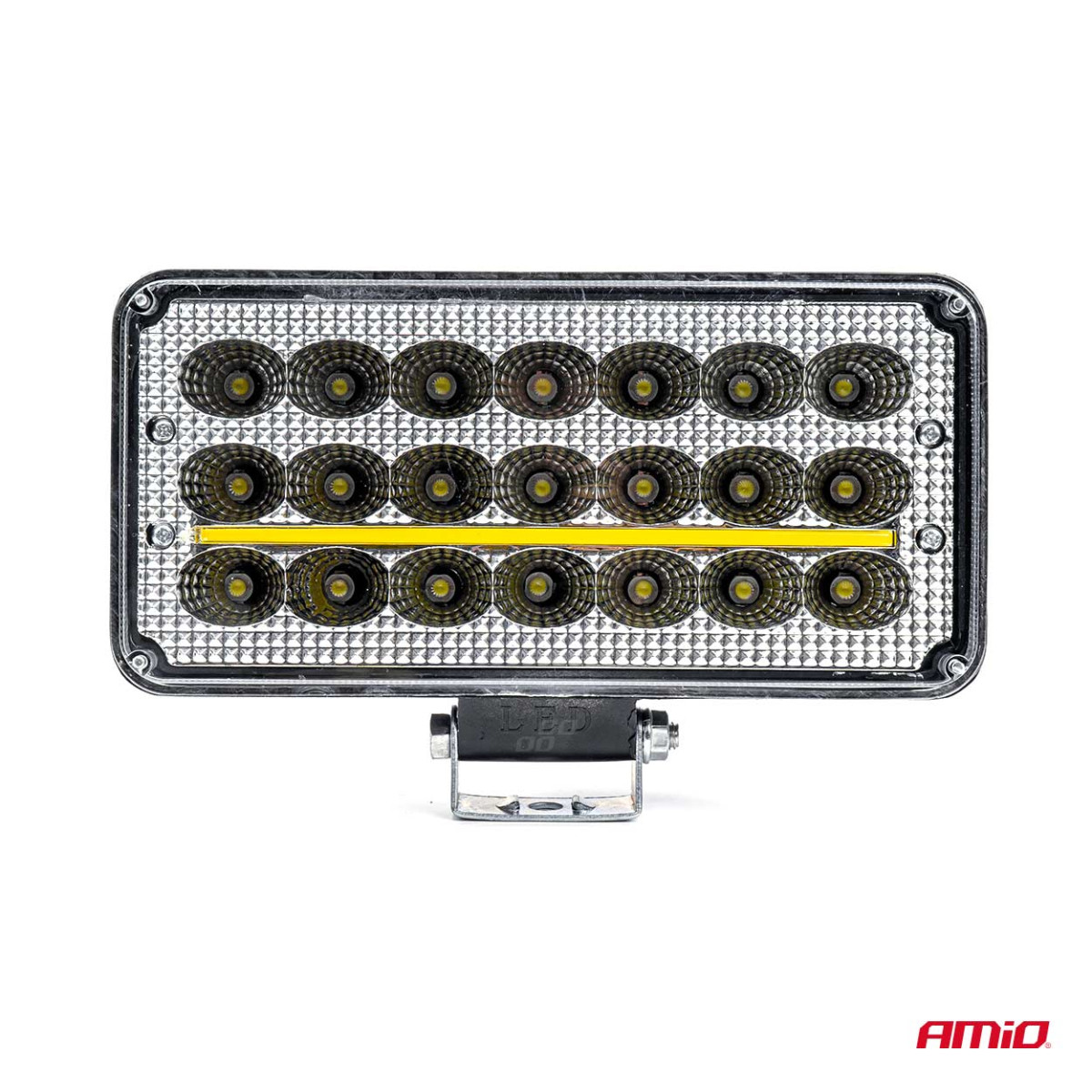

LED Work lamp, 81 W, 9-36 V, AWL43

Work lights are designed primarily for applications where professional, intense light sources are required, powered by batteries with voltages ranging from 9 to 36 V. These products have a very wide range of applications, e.g. for off-road vehicles, ATV and UTV vehicles, rescue, agriculture, automotive transport, helicopters, etc.
The lamp, due to its parameters and high light output, can replace up to 6 standard work lights.
Thanks to the LED technology used, the lamp has a very good ratio of power consumption to the amount of light emitted. It will also be perfect as additional lighting for a car or boat.

Application:

• Work lighting in agricultural and construction machinery
• Off-road lighting
• Lighting on boats, yachts and other floating devices
• Work lighting near the garage, outbuildings
• Additional lighting for trucks (TIR), buses, minibuses

Specification:

• Homologation: E9, ECE R10
• Power: 81W
• Light color: 6500 K
• Light output: 8100 lm
• Light flow type: diffused (flood)
• Operating temperature: –30 °C – +50 °C
• Voltage (DC): 9-36V
• Resistance class: IP67
• Housing: aluminum

Dimensions:

• height: 110 mm
• width: 225 mm
• depth: 60 mm

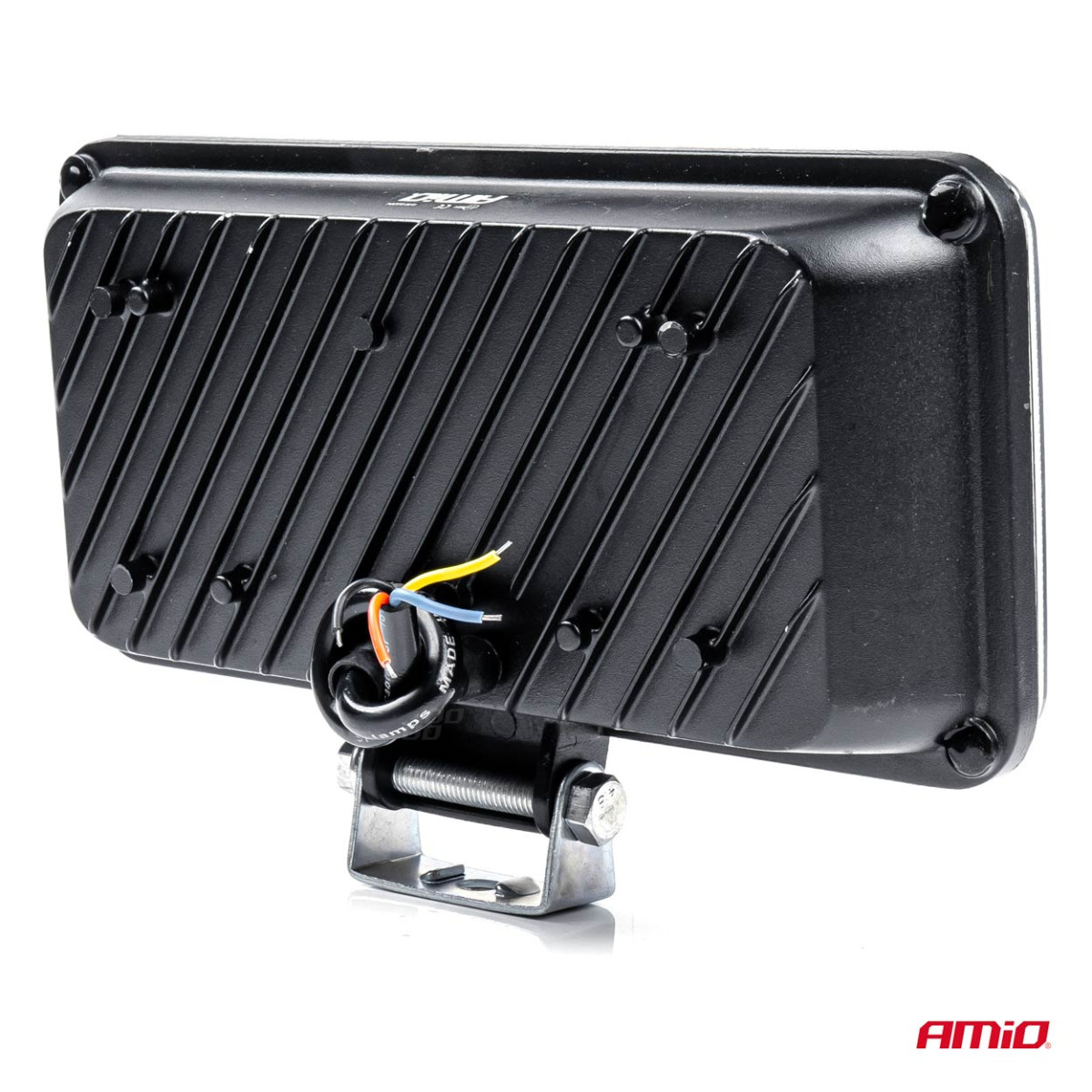

Connection:

• black – ground
• red – +12 V full power
• yellow – +12 V 50% power function
• blue – +12 V yellow bar function
