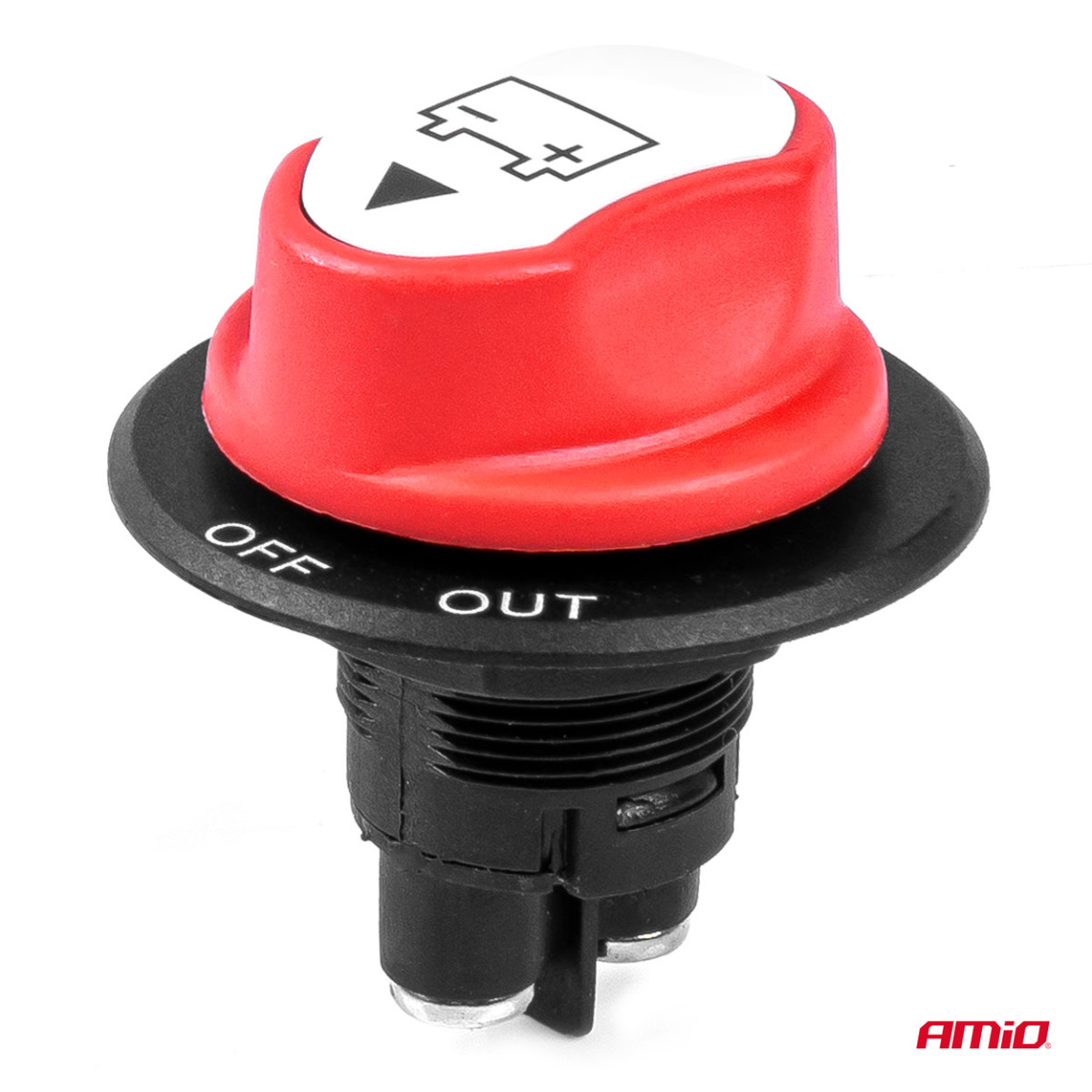

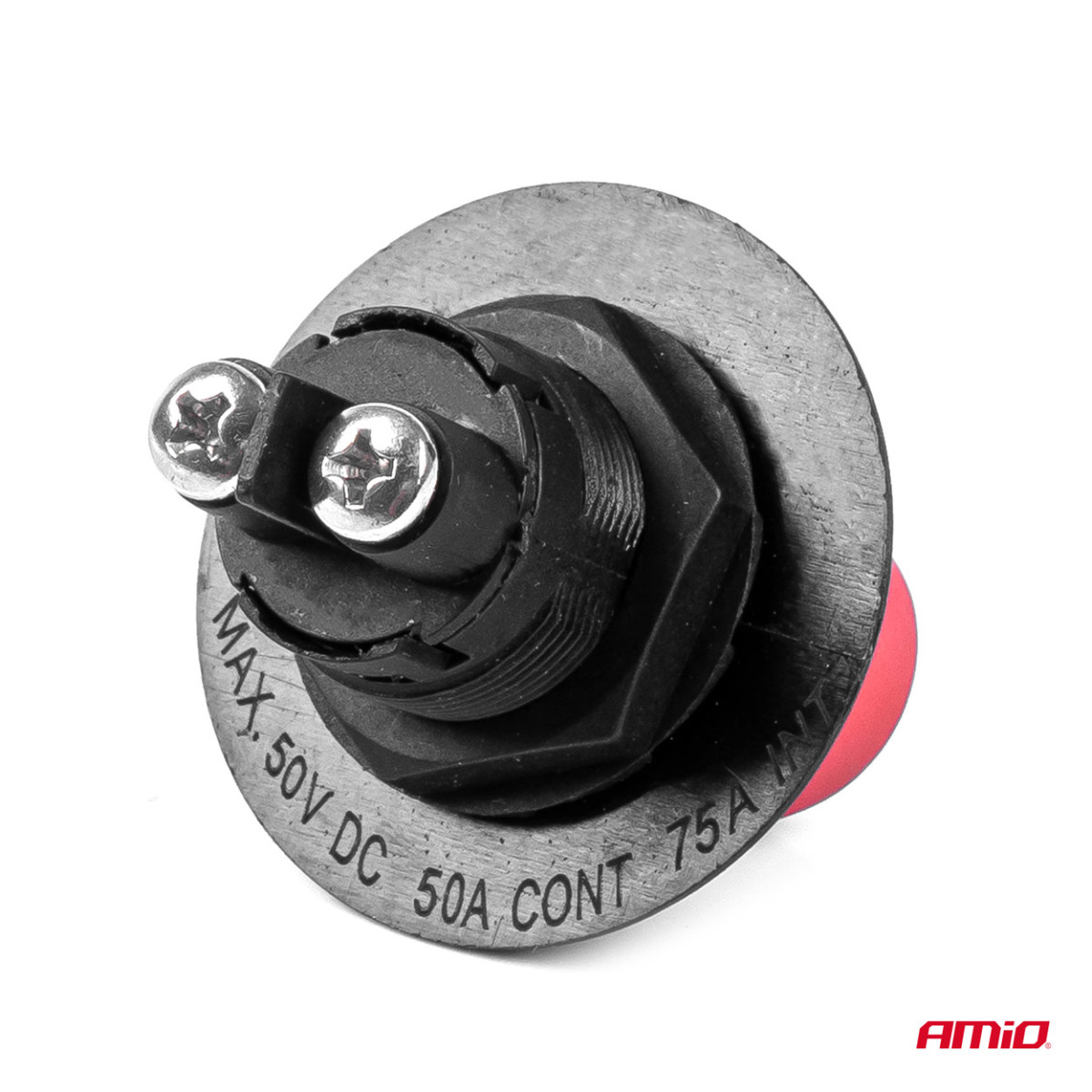

Main battery power switch 12/32V 50A / 300A AMIO-03025

Battery main power switch 12/50V – universal 3-position lever

Technical data:

• Operating current: 50A
• Short-time current: 75A
• Maximum current: 300A
• Lever type: 3-position universal (ON-OFF-OUT)
• Mounting hole: Ø22 mm
• Outer diameter: Ø45 mm
• Total height: 51 mm
• Height after installation: 20 mm
• Electrical connections: M4
• Max. voltage: 50V

Purpose:

The switch is intended for electrical installations in cars, trucks, agricultural and construction machinery, campers, motorboats and other vehicles where the ability to quickly disconnect power is required.

With one simple hand movement, the lever switches the ground circuit, for example:

• before carrying out any type of repair;
• during prolonged parking;
• charging the battery from the charger without removing it from the vehicle.

Advantages of use:

• Quick power disconnection in vehicles
• Can perform anti-theft function or quick emergency power cut-off function
• Useful during various car rally competitions
