Parking assistance system LED-GRAF 3D, 4 black sensors GOLD 18 mm AMIO-03186

Parking assistance system – a device that helps with parking and reversing. A universal and proven system for those who value safety on the road. The device is simple and functional, turns on automatically. Using ultrasonic sensors, you will never accidentally encounter obstacles.

When parking or reversing, the system accurately detects obstacles and warns the driver with an acoustic signal depending on the distance to the object. If equipped with a display, the information is also displayed visually.

Technical data

• Power supply: 12V DC
• Power consumption: <4 W
• Operating frequency rate: 40 kHz
• Operating temperature: -30 °C to +55 °C
• Obstacle detection range: 0.3 – 2.5 m
• Measurement error: ±5 cm
• Mounting hole diameter: 18 mm
• Outer diameter of sensors: 20 mm
• Sensor cable length: 2.2 m
• Display cable length: 5 m

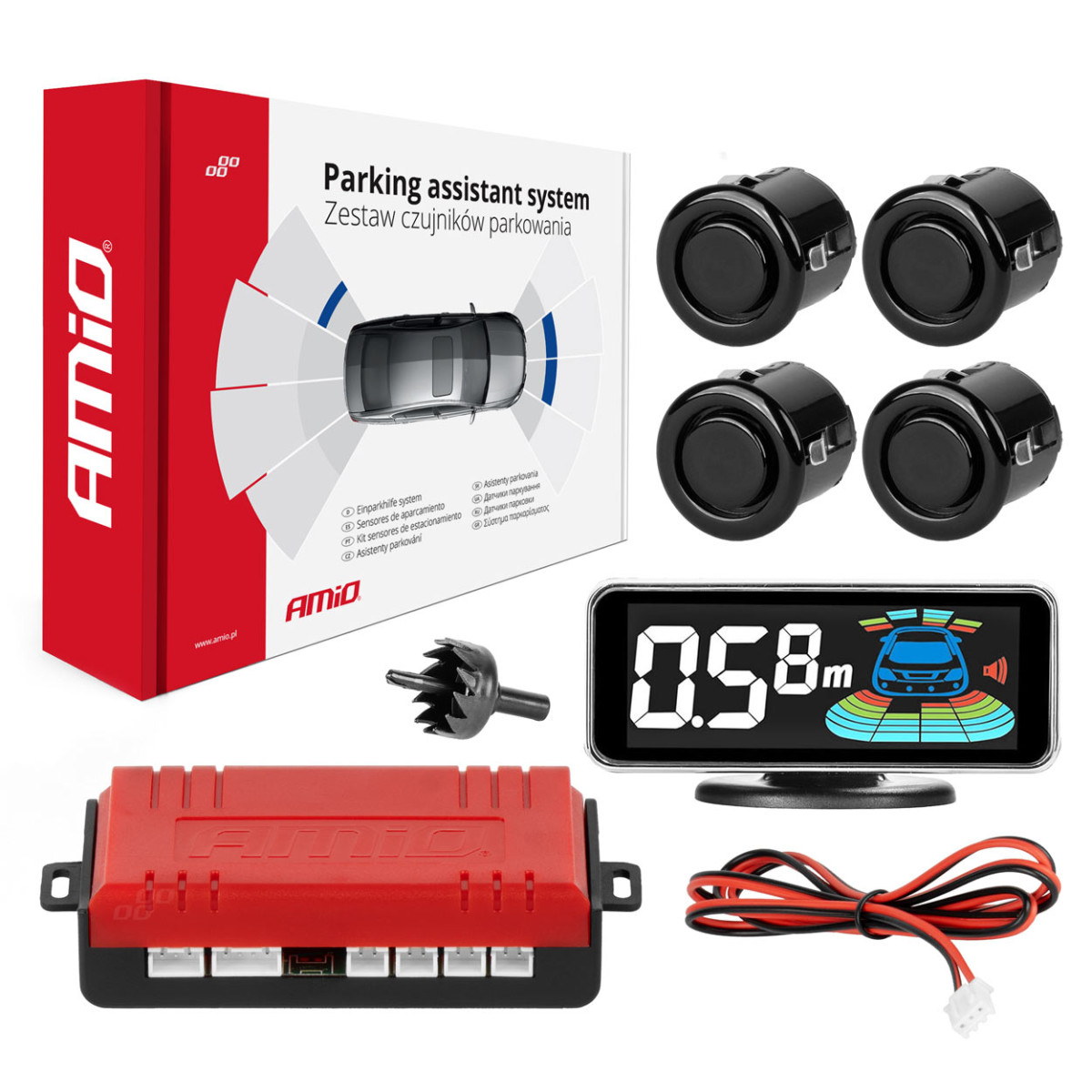

The set consists of

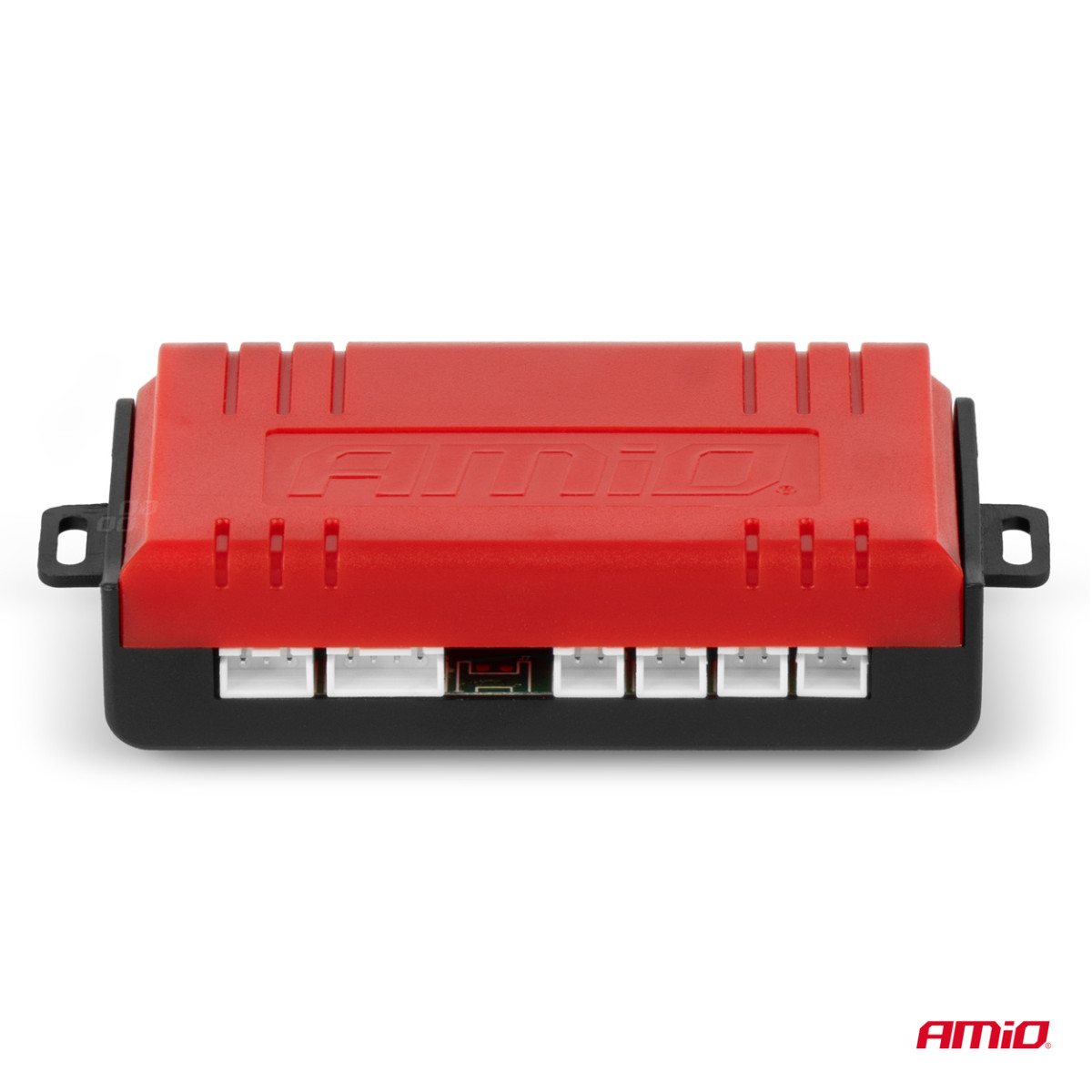

• Control unit

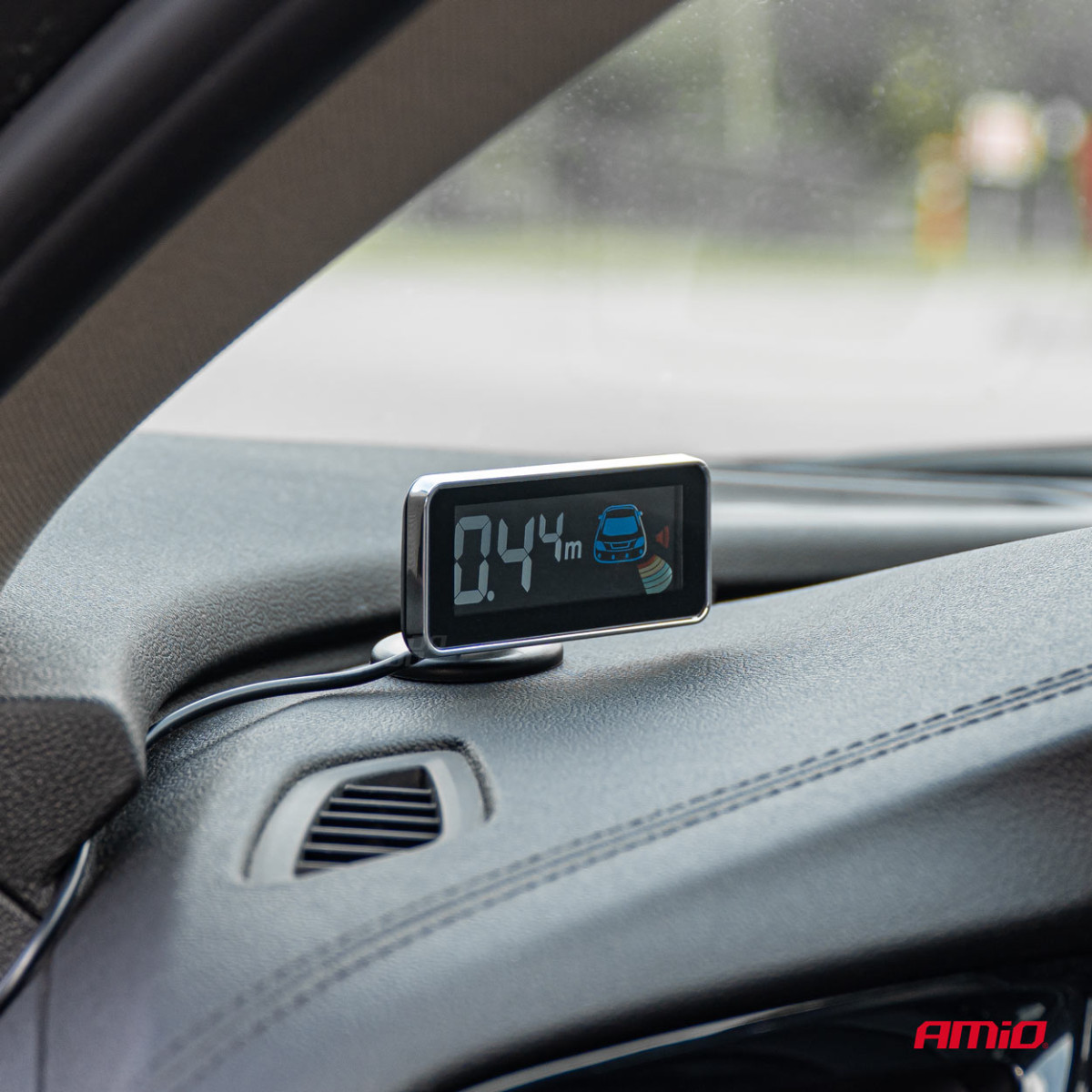

• LED-GRAPH 3D screen

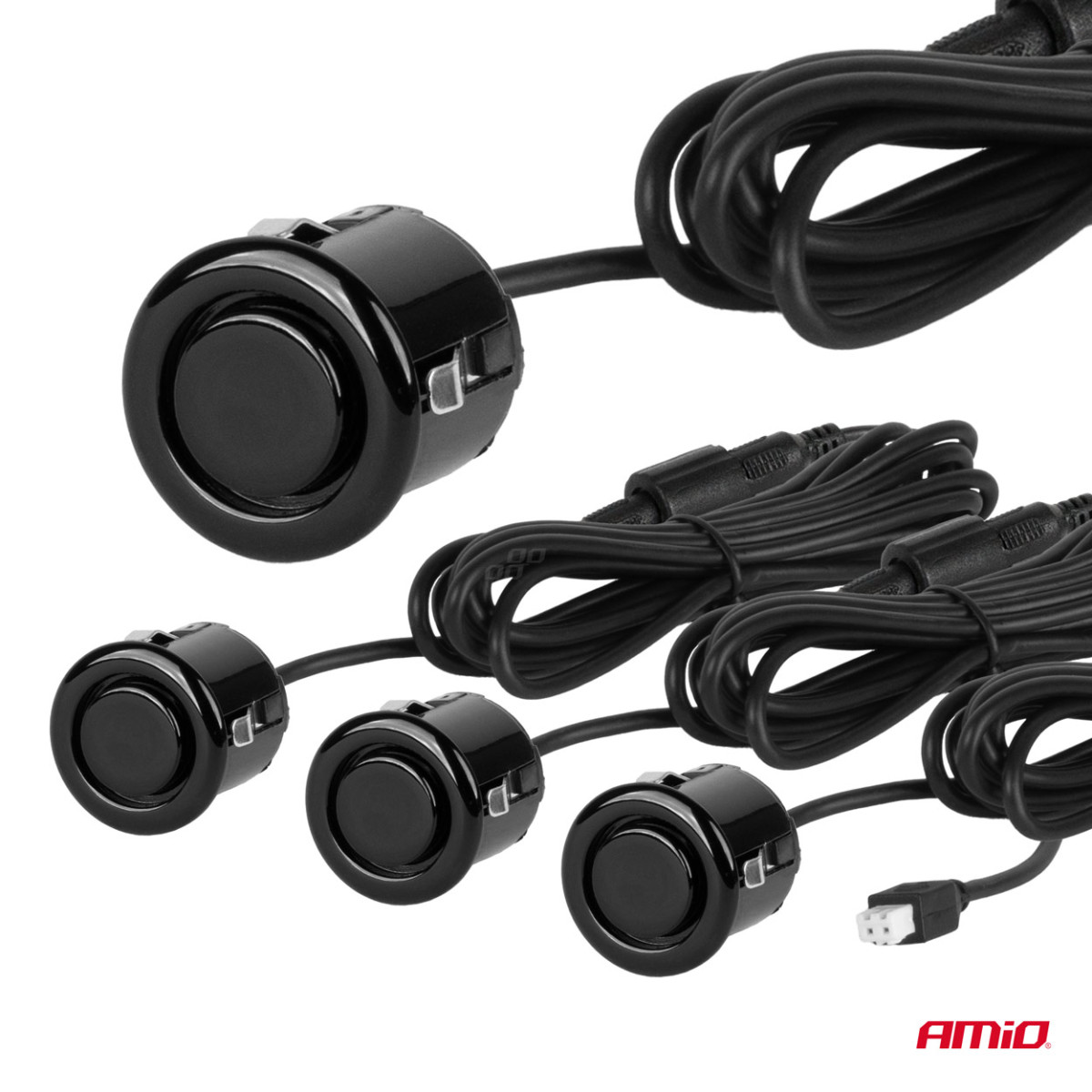

• 4 black removable sensors, 18 mm, GOLD version
• Cables and wires
• Installation drill
• User manual

Features and usage

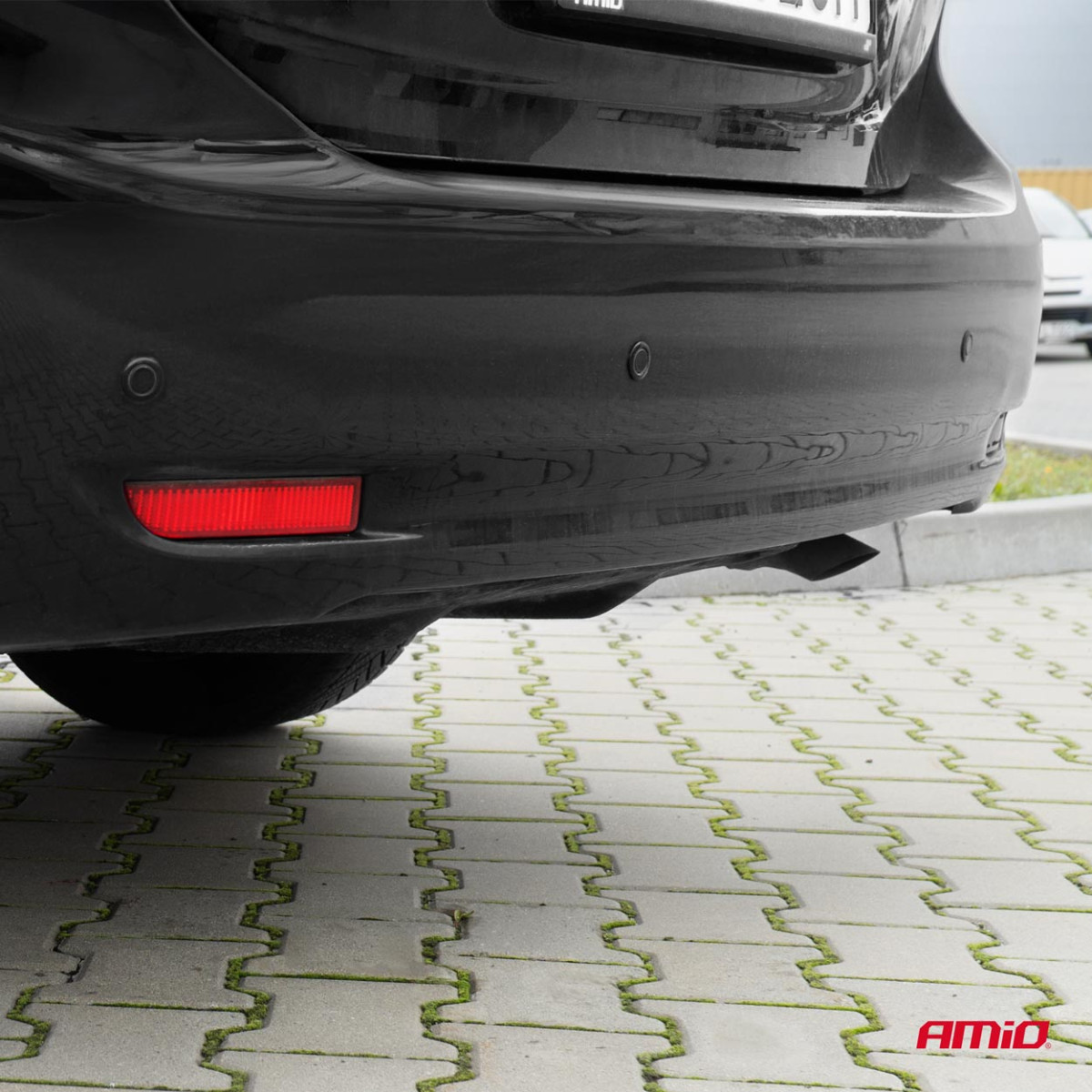

• Sensors can be installed in the front or rear of the car as needed.
• The rear sensors are activated automatically when reverse gear is engaged, the front sensors are activated when the brake pedal is pressed.
• The control unit is factory calibrated.
• When an obstacle is detected, the system informs about the distance, graphically and additionally with an audio signal through the built-in speaker.
• High-end sensors with flat bezel.
• The sensors are completely resistant to water and environmental influences (snow, rain, fog).
• It is possible to paint the sensors in 1-2 layers (independently).

Installation

• The kit includes all necessary installation elements: drill with crown, cables (power and sensor), control unit, sensors, display or buzzer, depending on the kit.
• Intuitive installation and included mounting elements allow you to quickly install the system yourself.

Versatility

• The system is universal, suitable for most cars.
• Extension cables are available for vans or vehicles with longer distances if the included cables are too short.
