Parking sensor set for camera and LCD display, 4 black sensors, internal mounting 16.5 mm AMIO-02990

The sensor kit with the option to connect a rear view camera is a basic kit that can be supplemented with one of our LCD screens (P/N: 01020 or P/N: 02484) and one camera from our wide range.

There is also the option to connect the system to a car radio that supports the PAL/NTSC video system.

Parking assistant is an auxiliary device designed to facilitate parking and reversing. A universal and proven solution for drivers who value road safety. The system is simple and functional, and works automatically. Thanks to ultrasonic sensors, the vehicle accurately detects obstacles, and the driver is warned about them with an audible signal (the intensity of which depends on the distance to the obstacle) and visual information on the screen.

Technical specification:

• Power supply: 12V DC
• Power consumption: < 4 W
• Operating frequency: 40 kHz
• Operating temperature: -30 °C to +55 °C
• Obstacle detection distance: 0.3-2.5 m
• Measurement error: ±5 cm
• Sensor cable length: 2.2 m
• Display cable length: 5 m

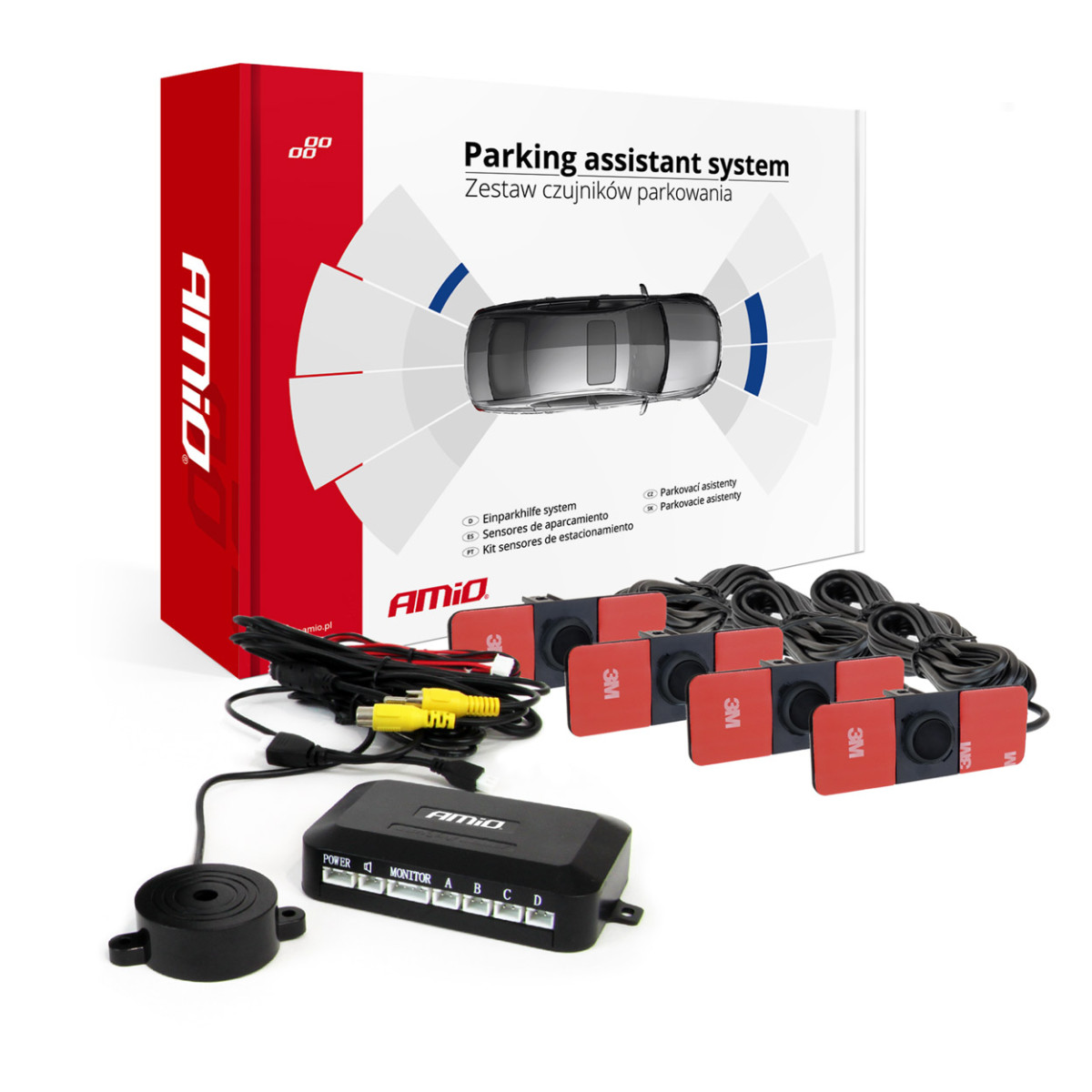

The set includes:

• TFT control unit with connection for display and camera
• Parking sensors
• Connecting wires
• Installation drill
• Instructions for use

The sensors included in the kit can be installed at the front or rear of the car, choosing the desired configuration, thus increasing safety when maneuvering.

The rear sensors are activated automatically when reverse gear is engaged, and the front sensors are activated when the brake pedal is pressed. The control unit is calibrated at the factory.

The front sensors are activated when the brake pedal is pressed (brake lights come on). The system operates for 15 seconds after the brake pedal is pressed and released. It also activates automatically if an obstacle is detected within 80 cm of the car.

Obstacle detection is signaled by:

• at the displayed distance,
• graphical indication,
• with an audible signal through the integrated speaker.

The kit is equipped with high-quality sensors with a flat mounting edge, ensuring aesthetic installation.

The sensors are completely waterproof and work reliably in adverse weather conditions - rain, snow or fog.

If necessary, the sensors can be painted with 1-2 coats of paint (done independently).

The product is universal, suitable for most cars. We also offer cable extensions for commercial vehicles or trucks, if the included cables are too short.
