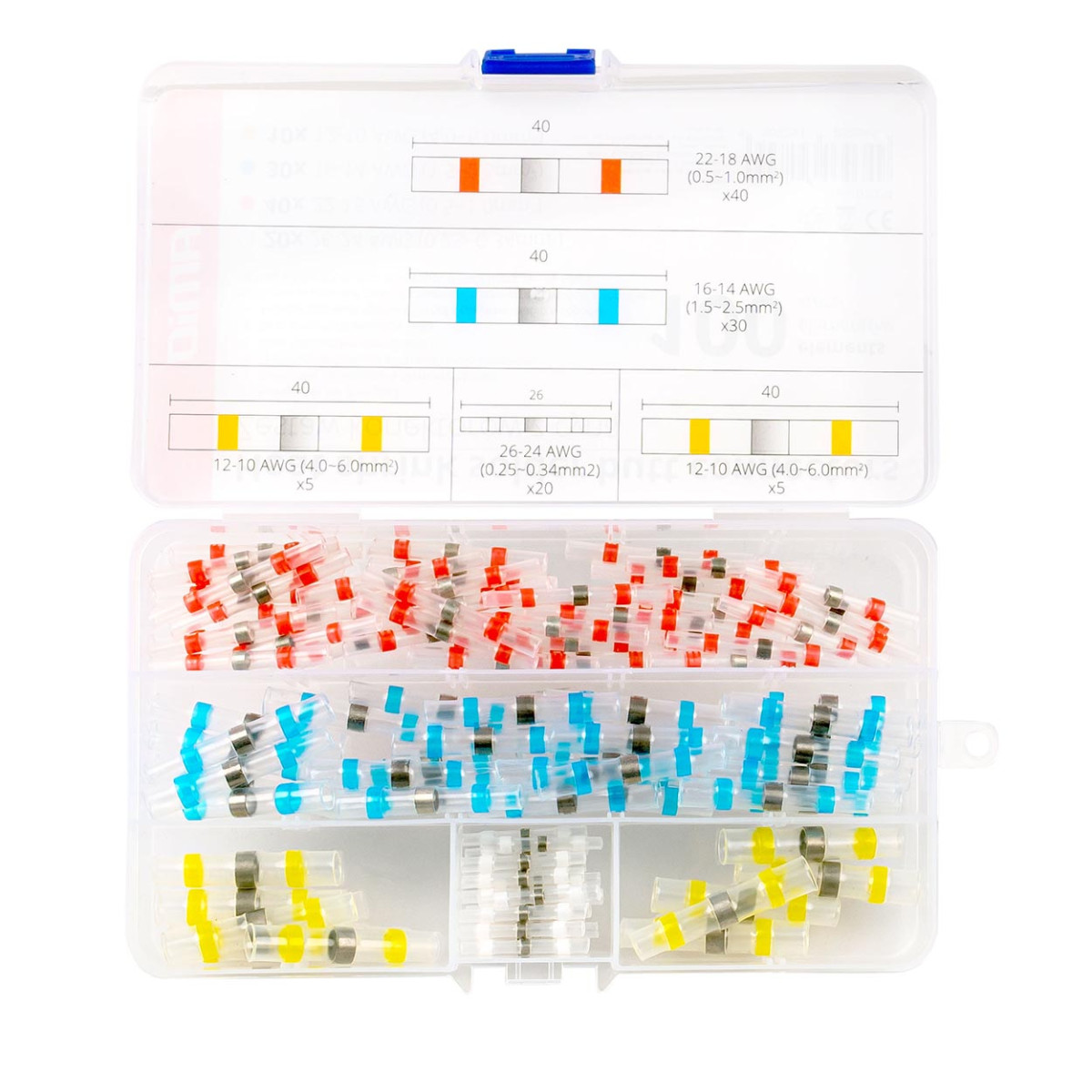

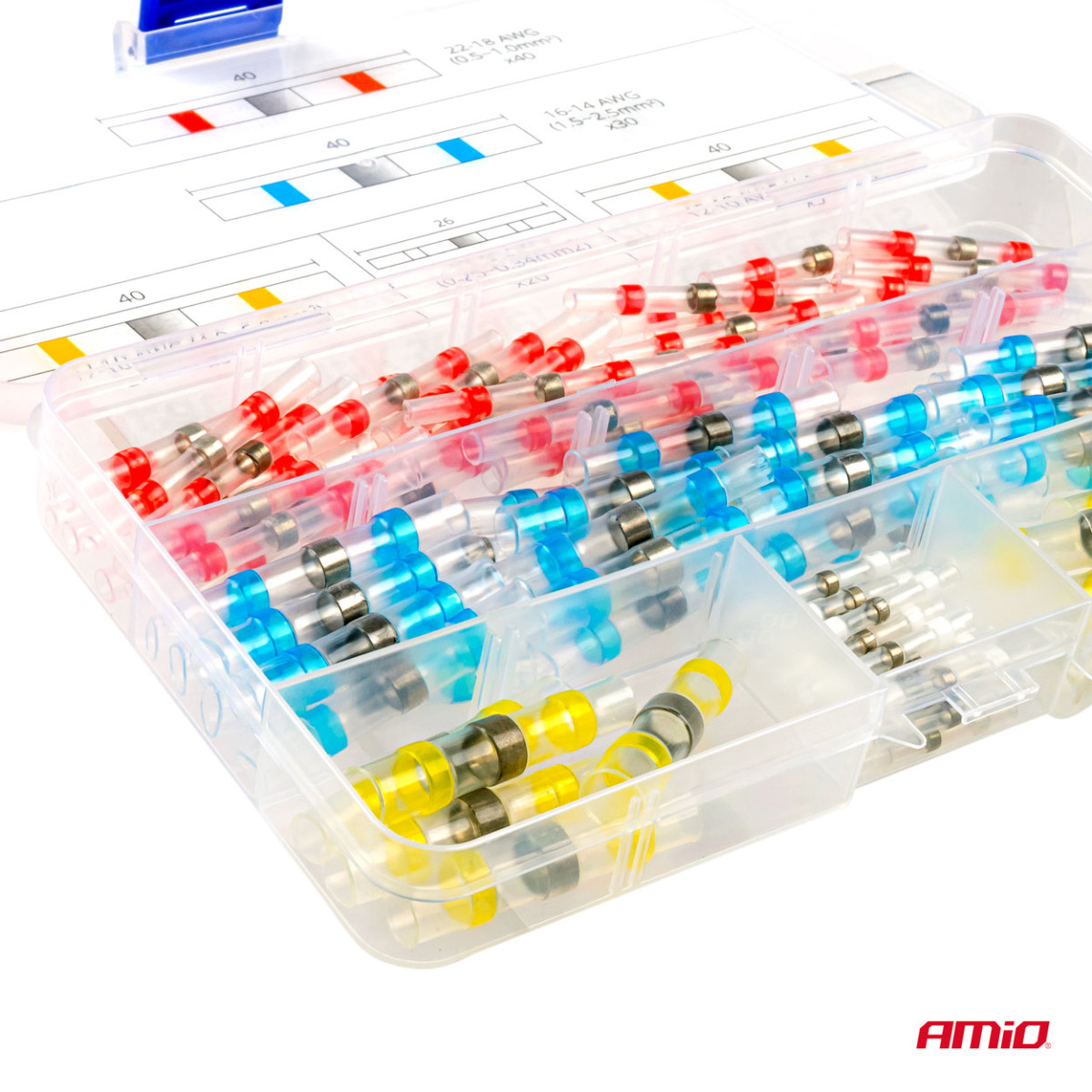

Heat shrinkable solder joints set with solder 100 pcs., AMIO-03034

Heat shrinkable connectors with solder – 100 pcs.

Advantages:

• Simple single-phase wiring
• 3 steps are performed at the same time: soldering, insulating and sealing
• Outside – polyolefin tube, inside – solder
• Solder, O-ring and advanced waterproof function
• Polyolefin heat shrinkable splice connectors increase tensile strength, provide tightness, mechanical release, wire control and insulation
• The set comes in a sturdy, shared packaging that makes sorting easier
• Long-lasting – excellent resistance to stretching and mechanical damage
• Transparent heat shrink tubing provides high tensile strength
• High elasticity

Usage:

Solder inside - For best results, use hot air until the joint shrinks and the melted adhesive fills the gaps in the tube. Rotate the joint continuously during heating to ensure the heat shrink sleeve is heated evenly.

Water resistance:

The outer polyolefin tube and inner thermo-adhesive layer provide an excellent waterproof seal. Perfect for marine, automotive, household and electronic applications.

Technical data:

• Minimum soldering temperature (to melt solder): 138 °C
• Minimum shrinkage temperature: 80 °C
• Operating temperature: –55 °C to +125 °C

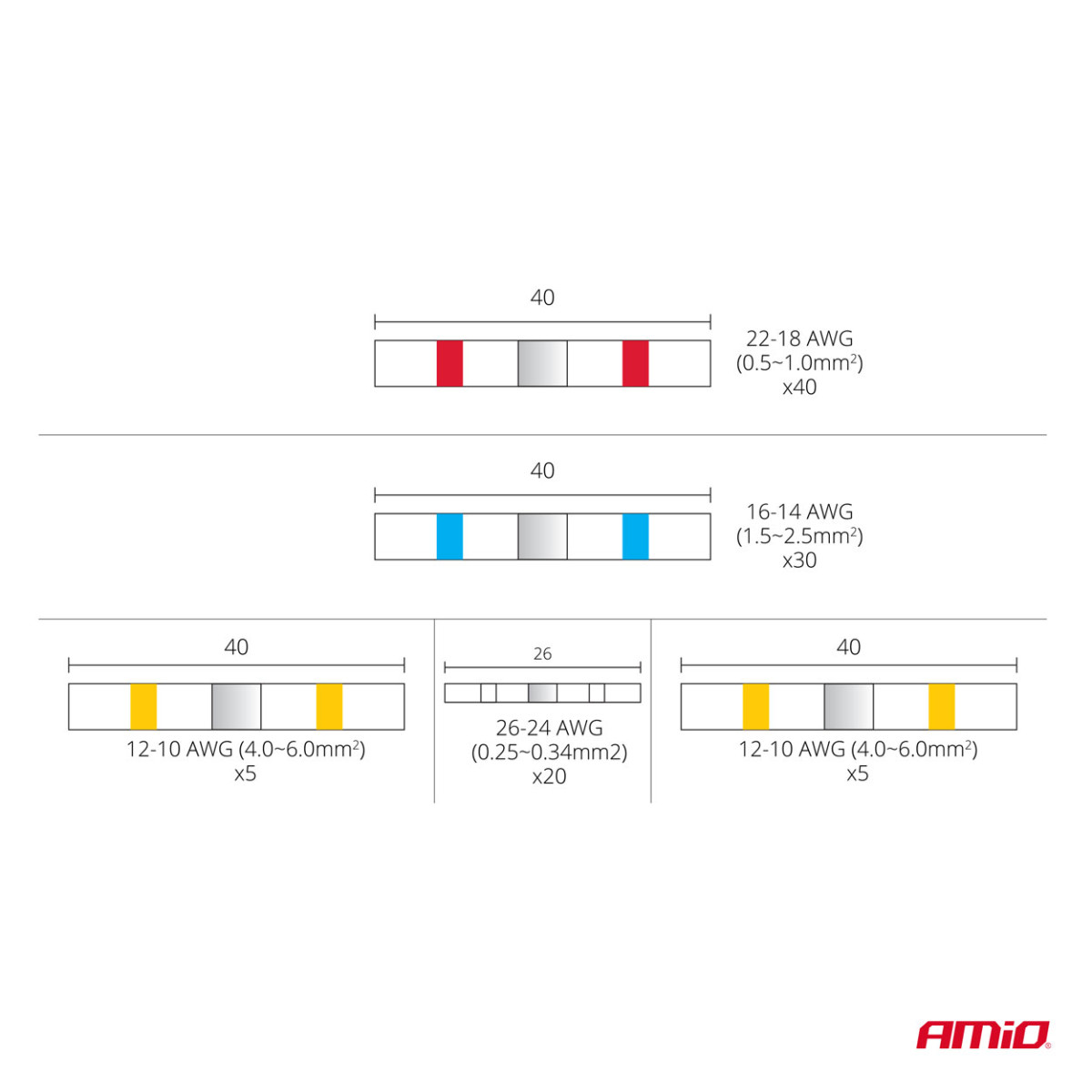

Electrical wire diameters:

• White: 0.25–0.34 mm² – 20 pcs.
• Red: 0.5–1.0 mm² – 40 pcs.
• Blue: 1.4–2.5 mm² – 30 pcs.
• Yellow: 4.0–6.0 mm² – 10 pcs.

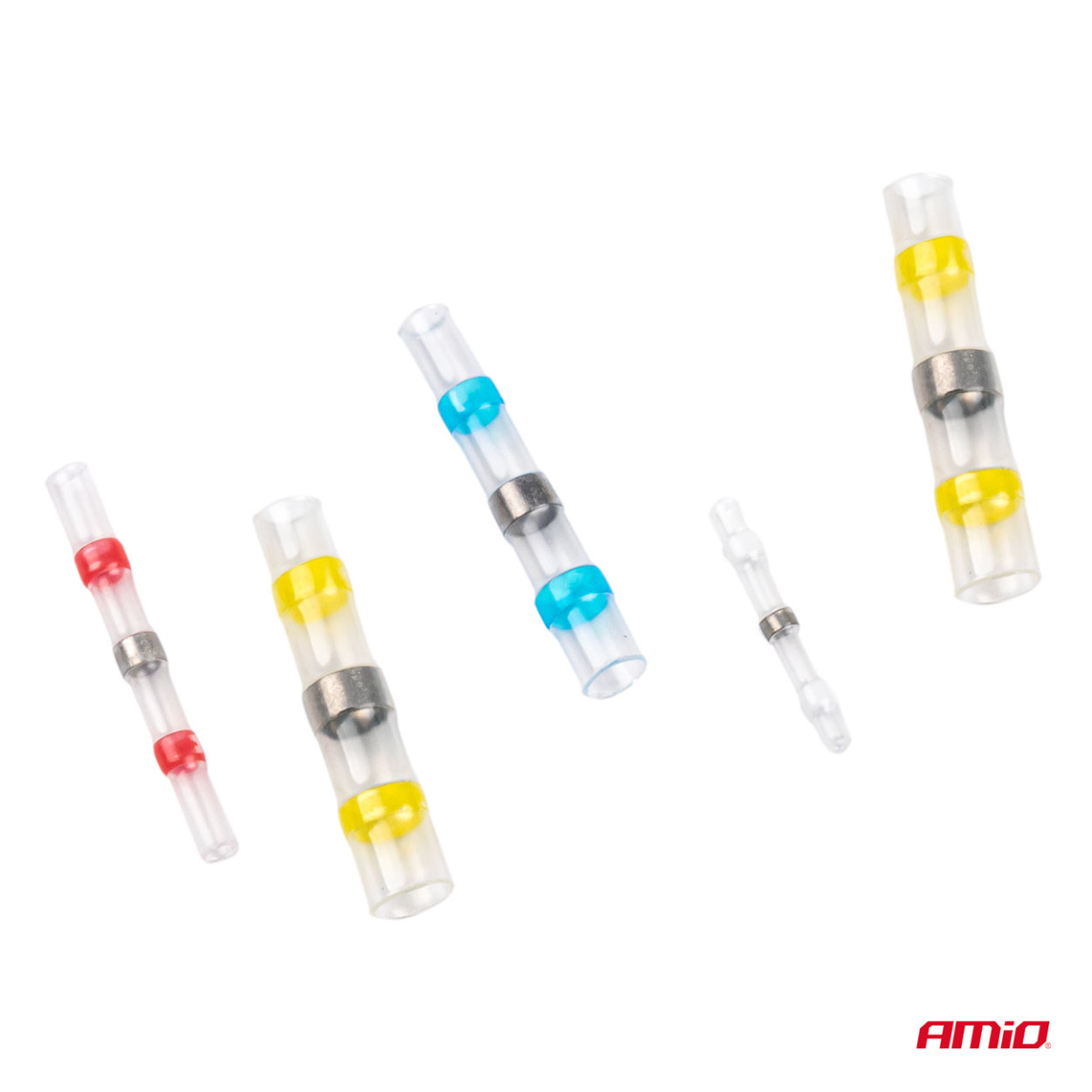

Heat shrinkable joint sizes:

• Red: Ø 3.0 mm
• Blue: Ø 5.0 mm
• White: Ø 1.5 mm
• Yellow: Ø 6.0 mm
