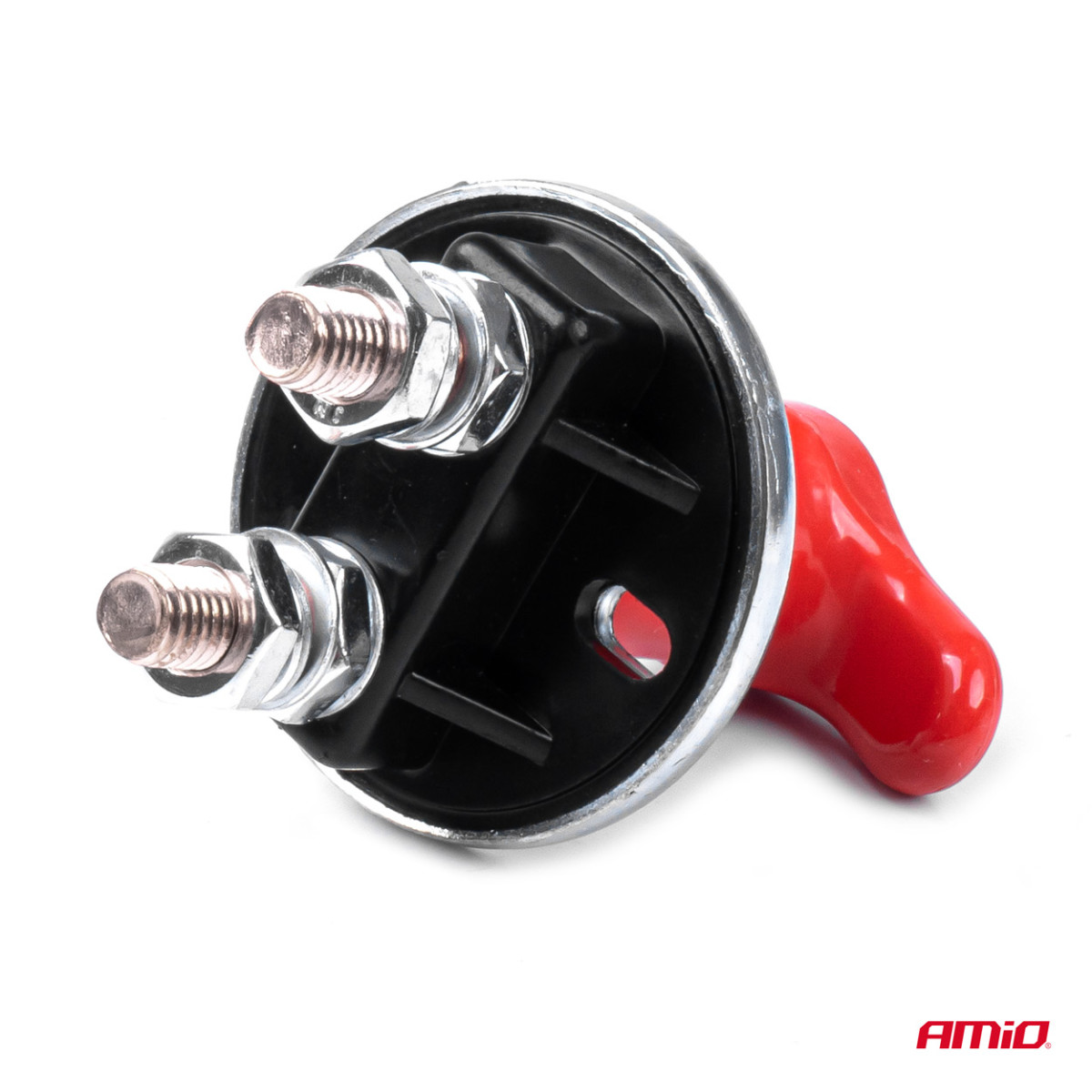

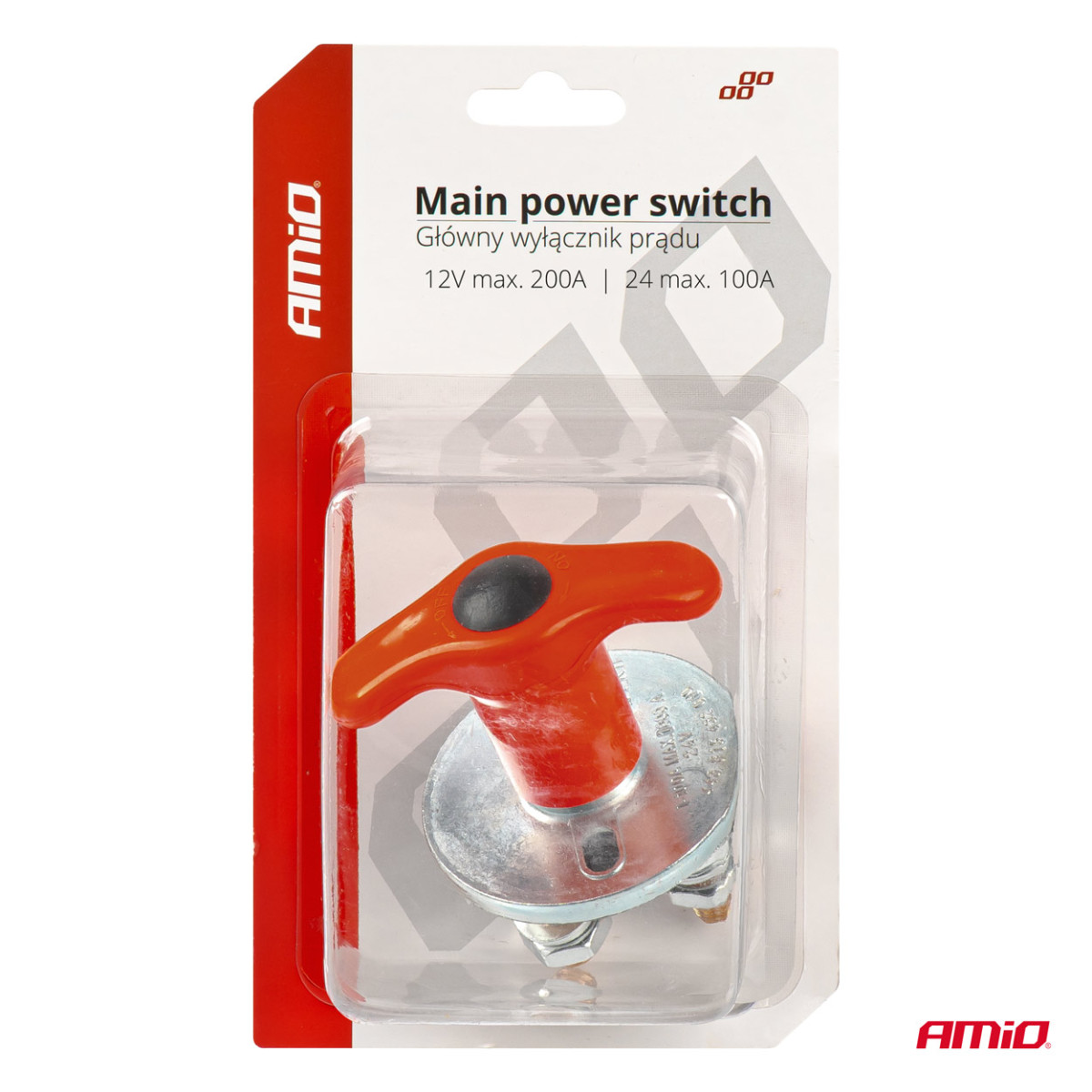

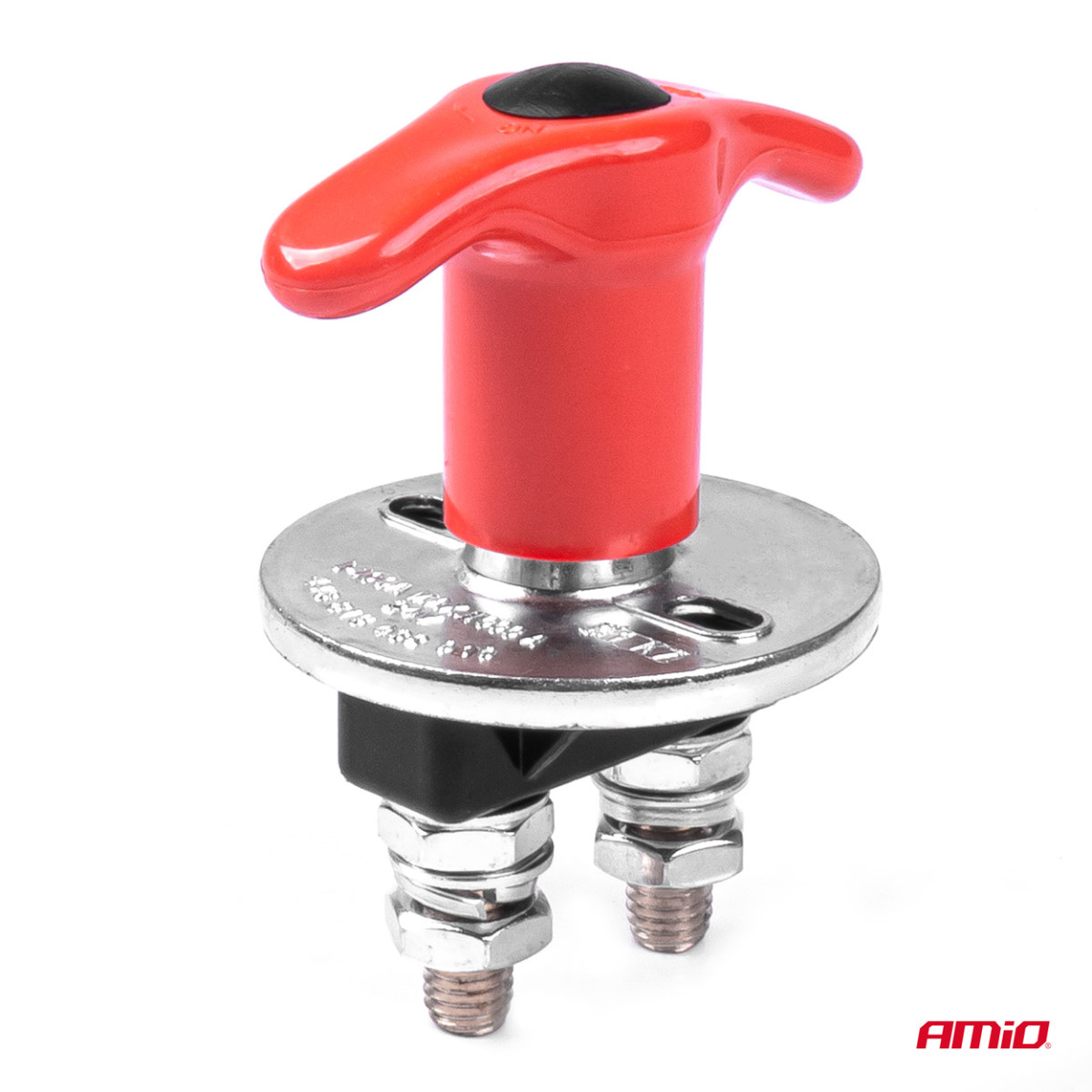

Main battery power switch 12/24V, 200A (max. 500A)

The switch is intended for electrical installations in cars, trucks, agricultural and construction machinery, campers, motorboats and other vehicles where the ability to quickly disconnect power is required.

Technical data:

• Max. voltage: 24V
• Operating current: 200A/12V, 100A/24V
• Short-time current: 500A
• Maximum current: 1000A

Quick disconnect:

• With one simple hand movement, by turning the plastic knob, the ground circuit is switched, for example:
• before carrying out any type of repair;
• during prolonged parking;
• charging the battery from the charger without removing it from the vehicle.

Advantages of use:

• Quick power disconnection in vehicles
• Can perform anti-theft function or quick emergency power cut-off function
• Useful during various car rally competitions

Specification:

• Max. current: 1000A
• Outer diameter: 80 mm
• Mounting hole: 55 mm
• Electrical connection: M10
• Total height: 102 mm
