Parking assistance system LED COB, 4 black sensors GOLD 18 mm AMIO-02284

Parking sensor – a device that helps you park and reverse your car. It works on the sonar principle: it emits ultrasonic signals that, when reflected from an obstacle, allow you to determine the distance to the object. During reversing, the device accurately detects obstacles and warns the driver with an audible signal.

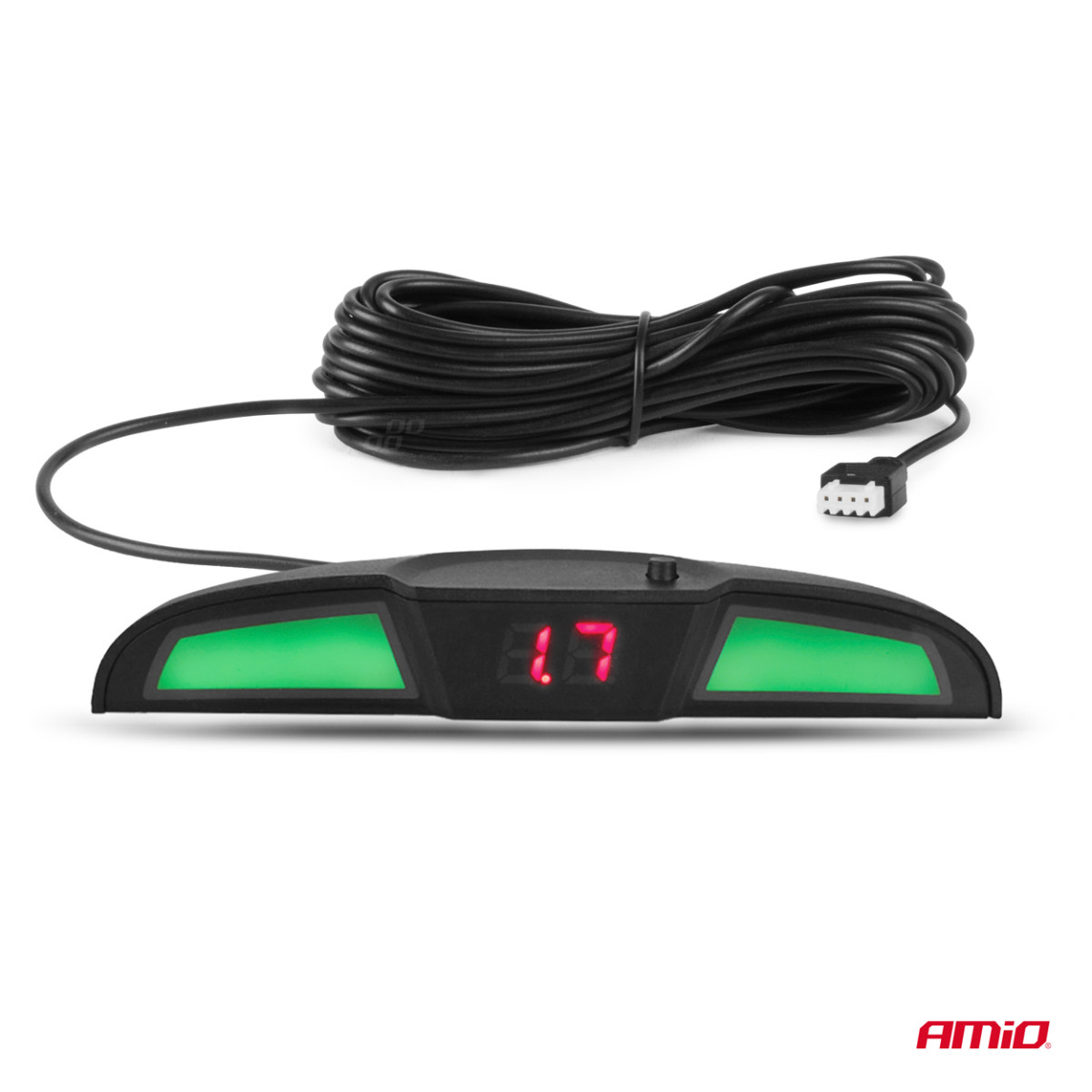

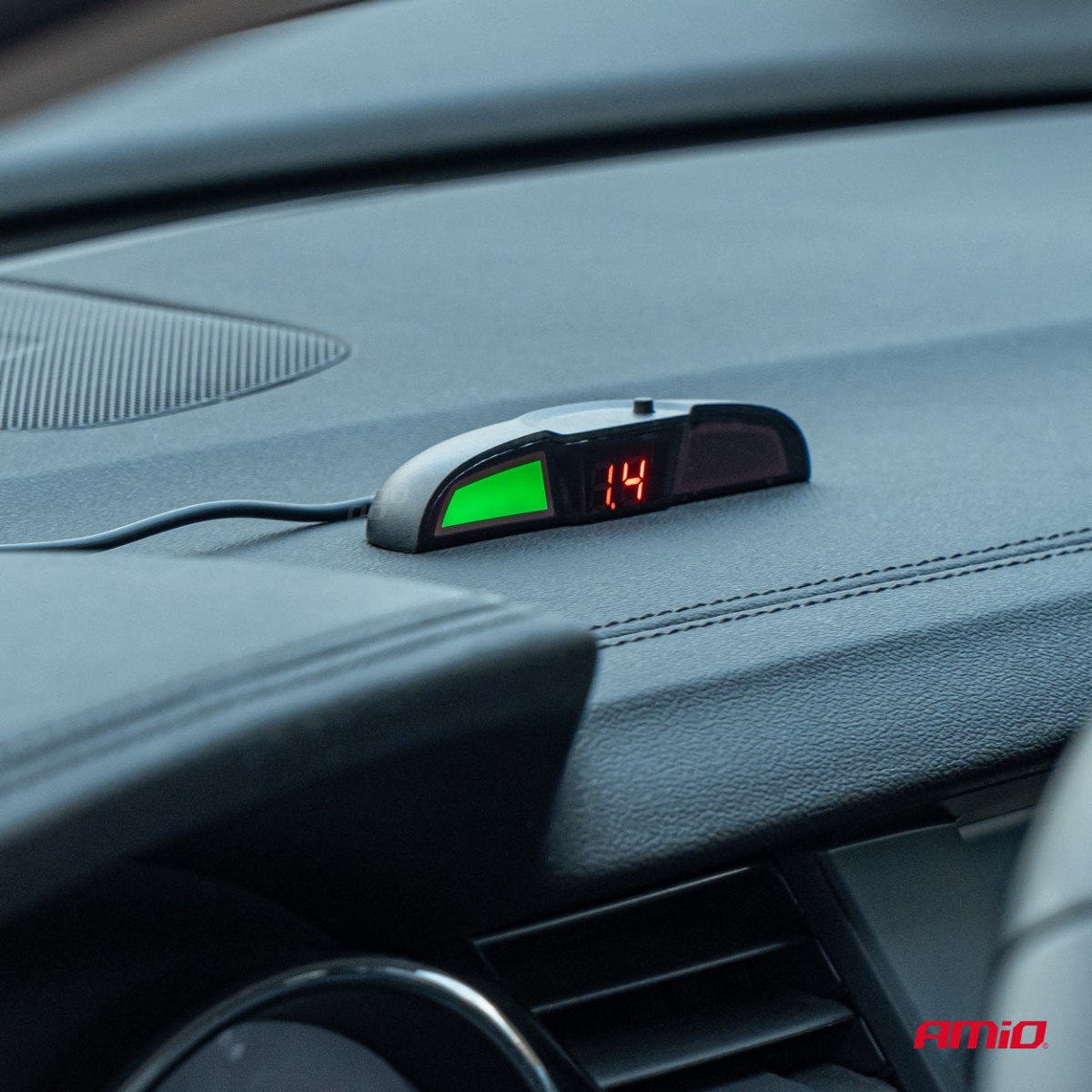

The LED-COB display has COB diodes that change color depending on the distance to the obstacle and show the distance with an accuracy of up to a tenth of a meter. The built-in speaker (buzzer) has 3 volume levels: high, low and off.

• Screen size: 10.5 x 1.5 x 3 cm
• Cable length: ~5 m

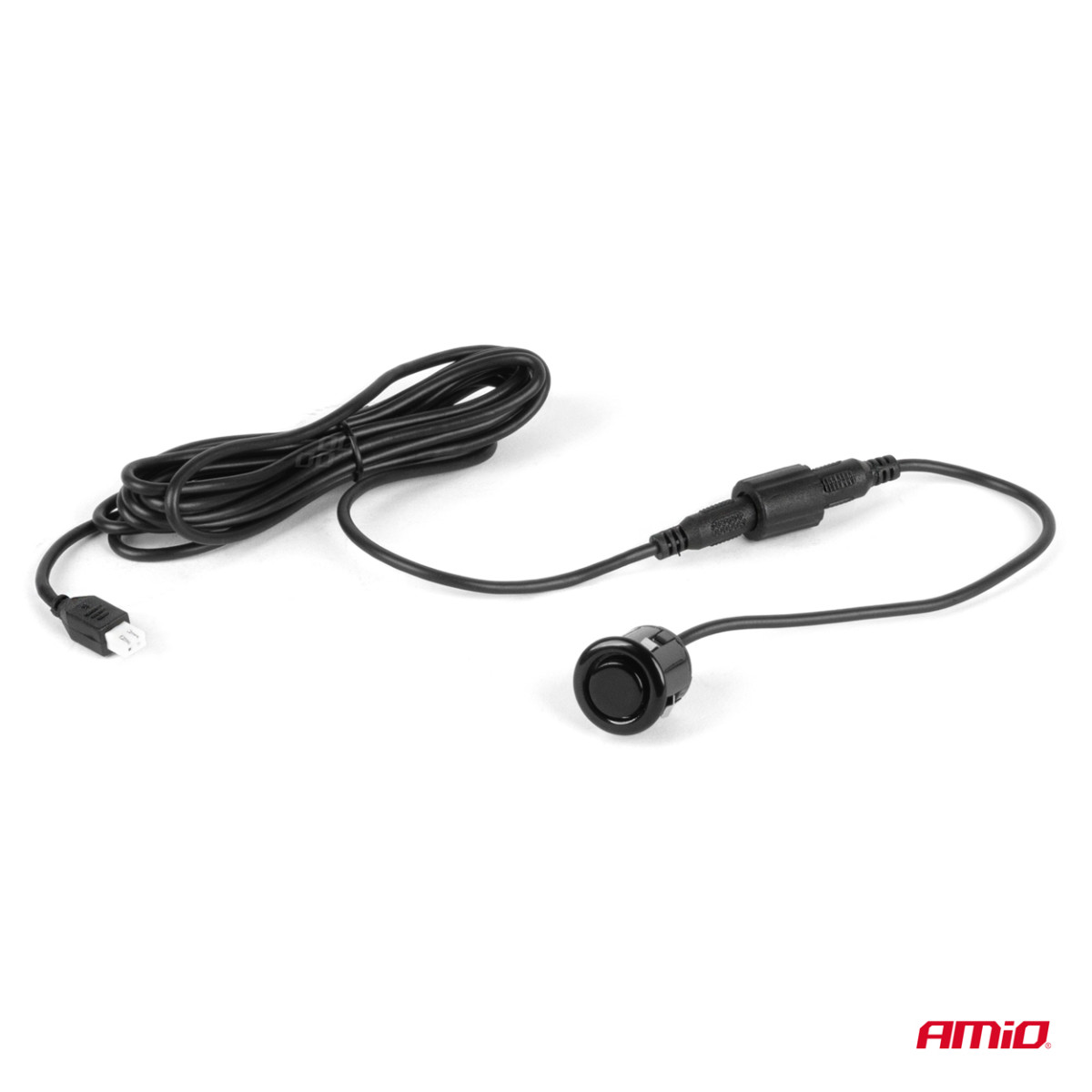

The GOLD version sensors are smaller than the standard ones and have a sealed connector on the cable, so the sensors can be disconnected from the car's wiring if necessary, for example when removing the bumper or in case of damage. In addition, the sensors are equipped with metal brackets that ensure stable mounting in the bumper.

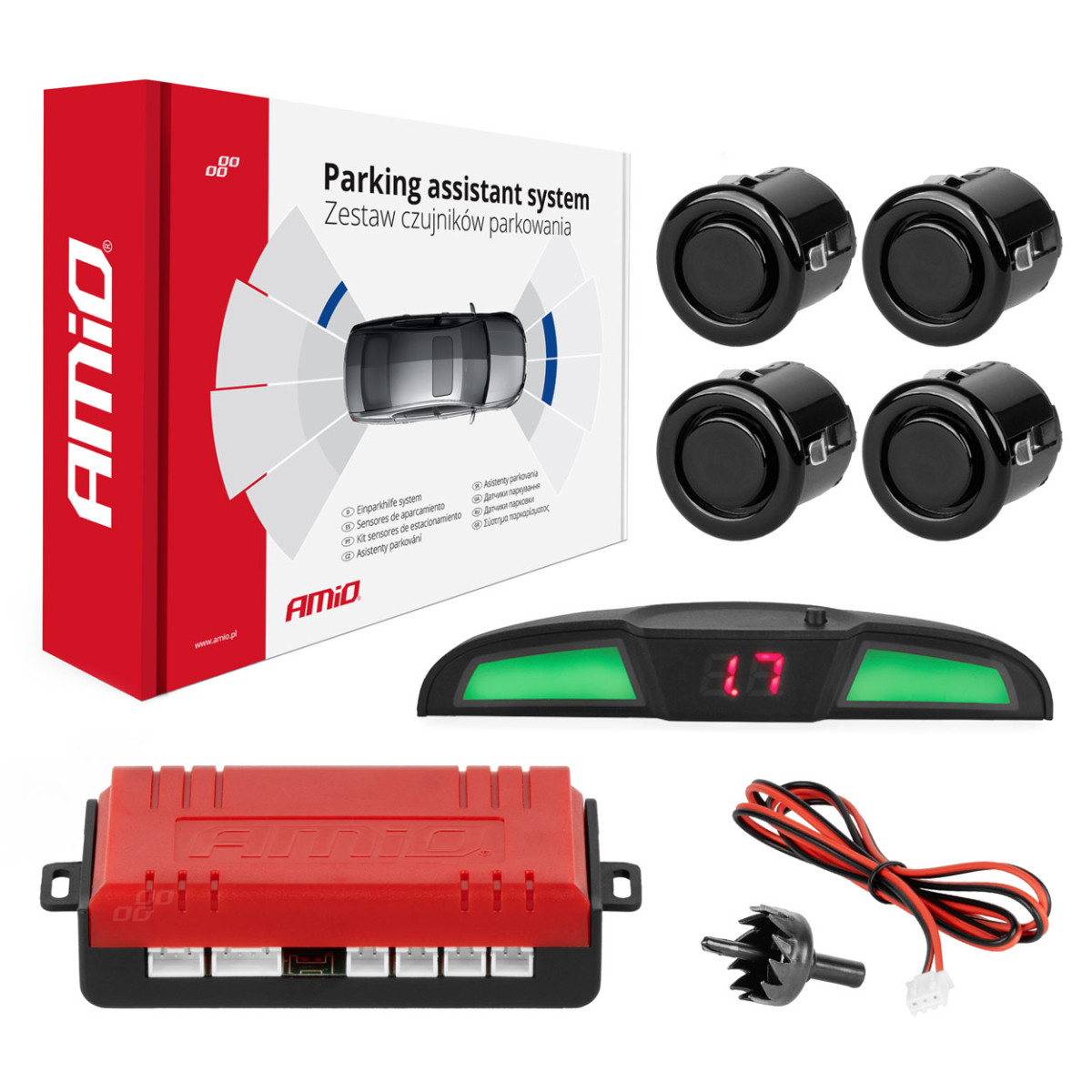

The set includes:

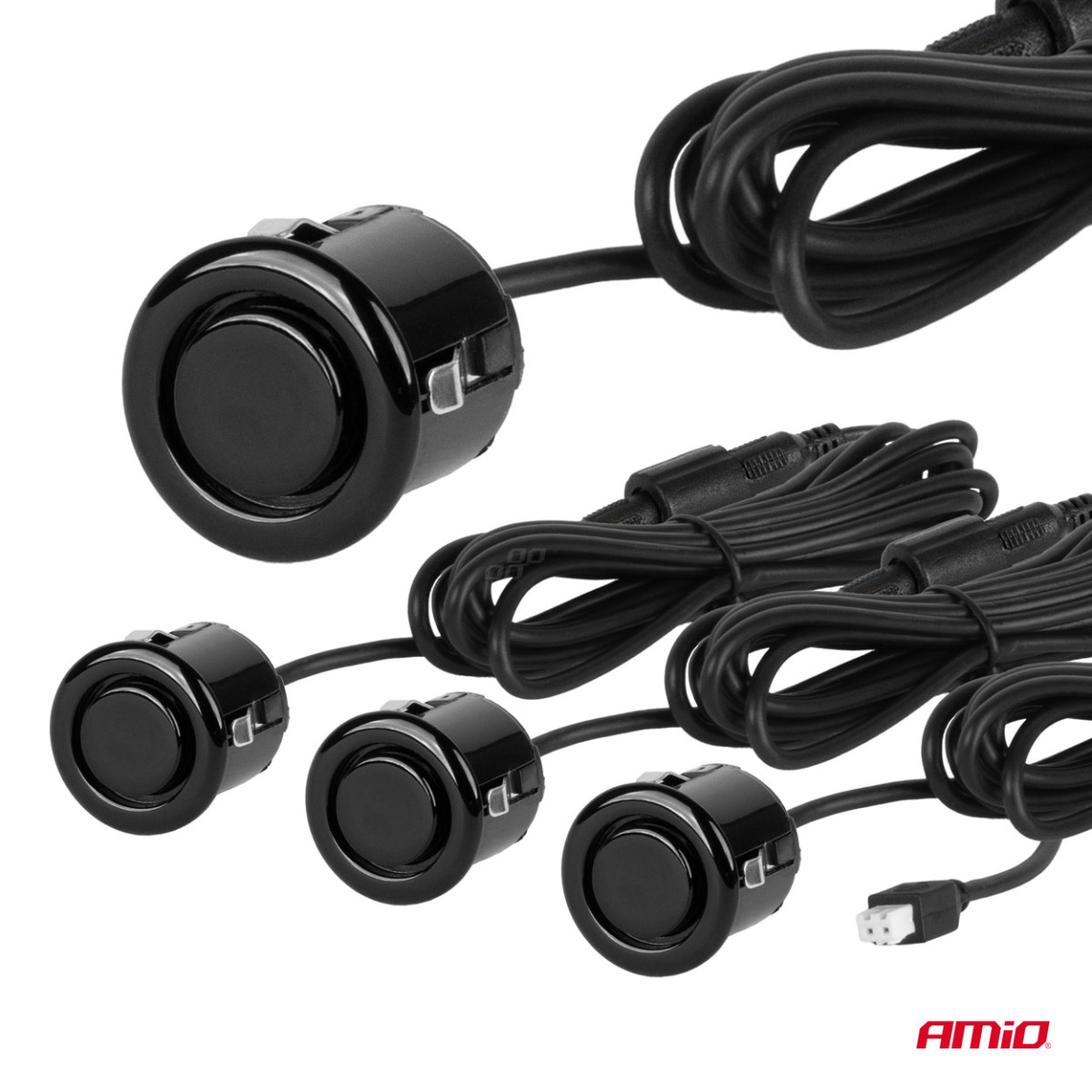

• 4 black "GOLD" 18mm sensors
• LED display with built-in buzzer

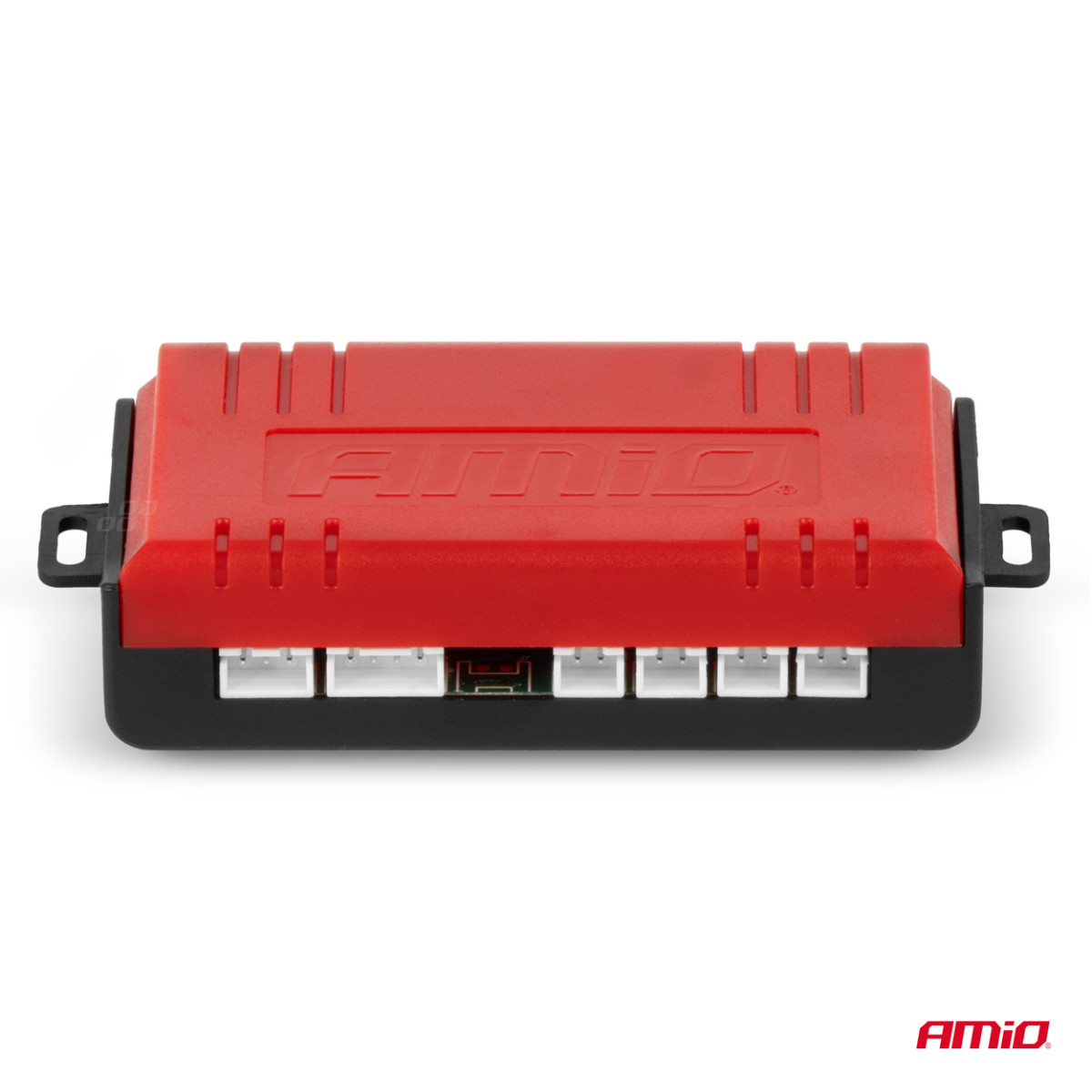

• 4-sensor central control unit
• Drill for drilling holes in the bumper
• Installation instructions

Full specification:

• Detection range/sensitivity: 0-2.5 m
• Power supply: 12V
• Operating frequency rate: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 18 mm
