Parking assistance system LED COB, 4 black sensors, internal mounting 16.5 mm AMIO-02285

Parking sensor – a device that helps you park and reverse your car. It works on the sonar principle: it emits ultrasonic signals that, when reflected from an obstacle, allow you to determine the distance to the object. During reversing, the device accurately detects obstacles and warns the driver with an audible signal.

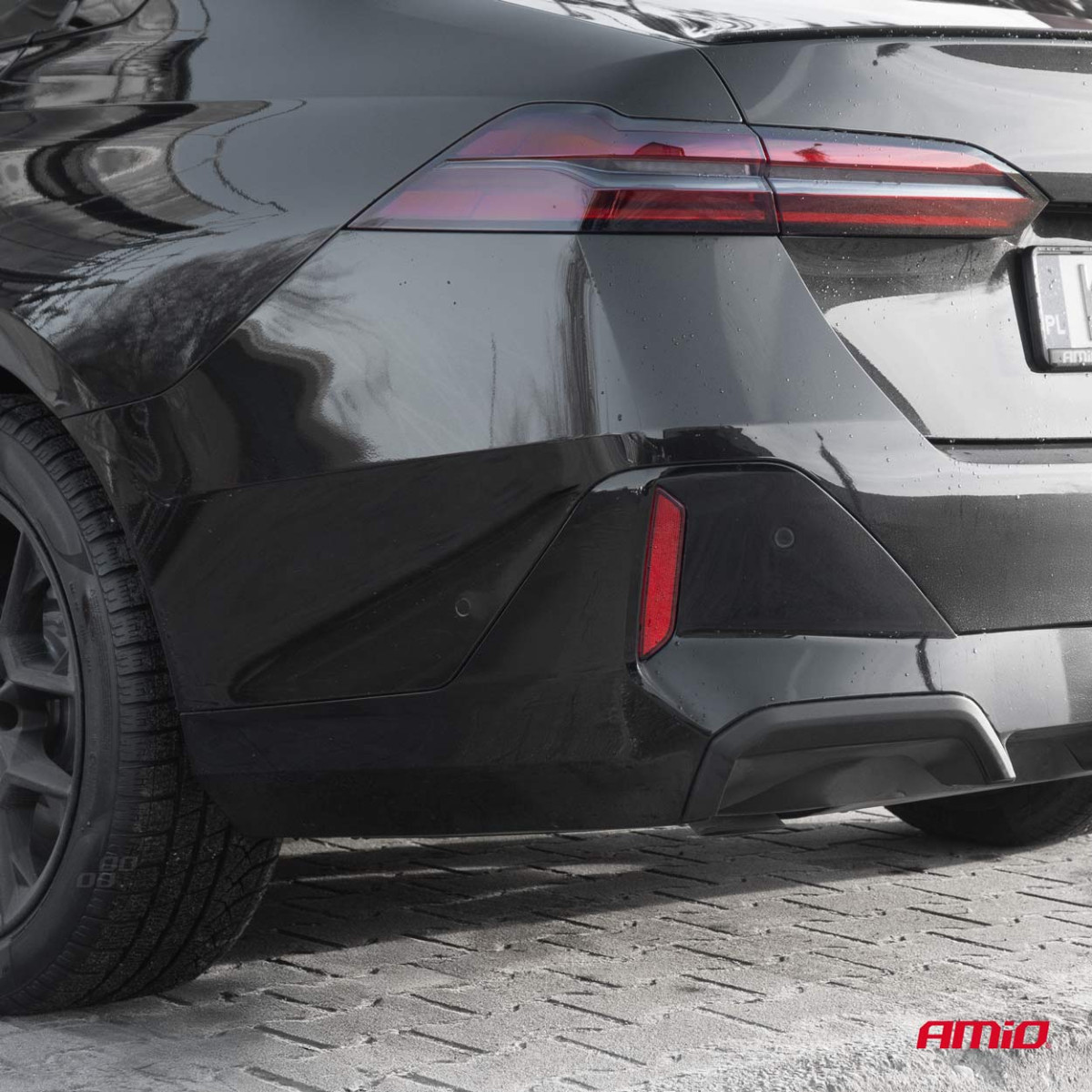

The new sensors are mounted on the inside of the bumper and do not protrude beyond its contours. Their small size provides an attractive appearance. The sensors can be painted, it is recommended to apply no more than two thin and parallel layers of paint.

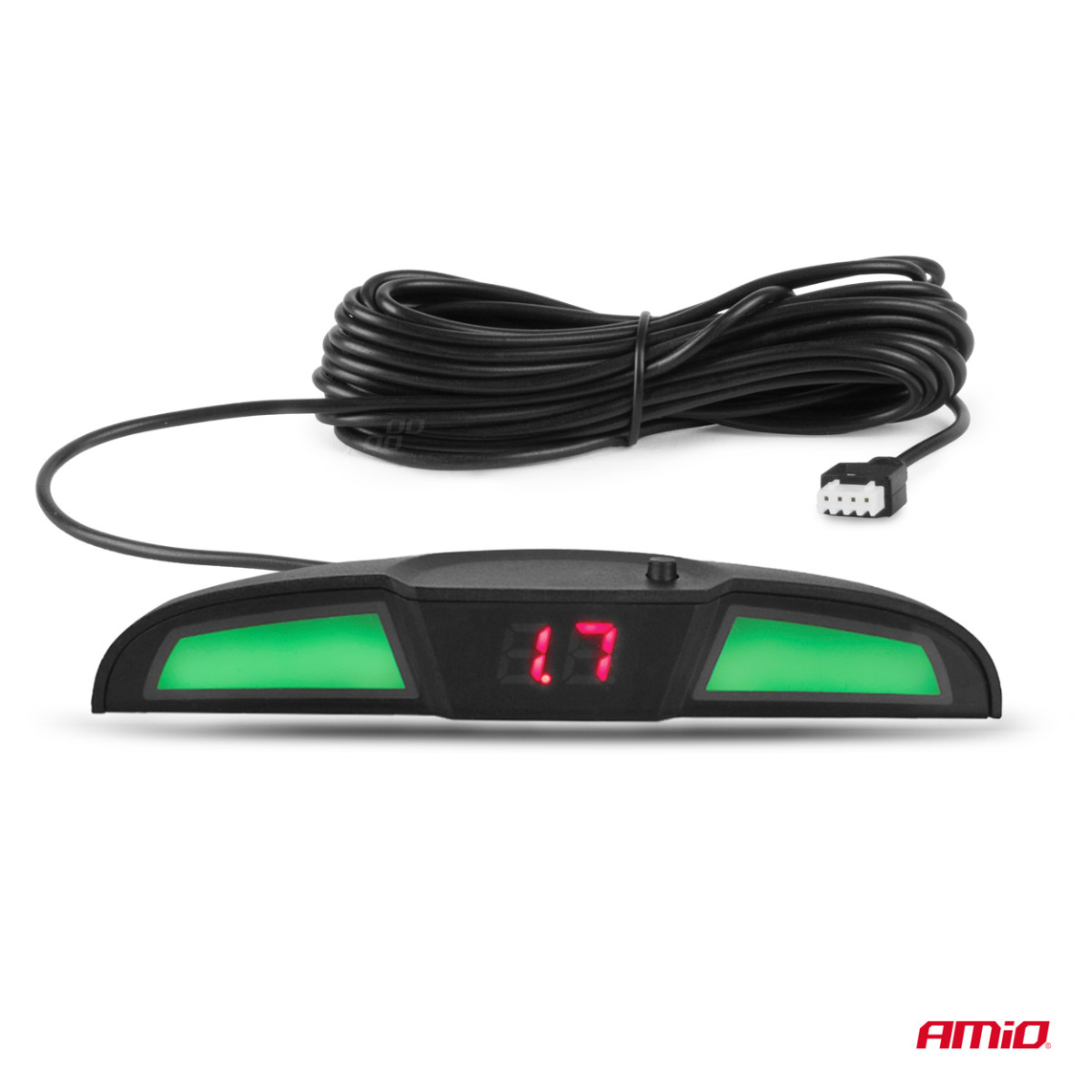

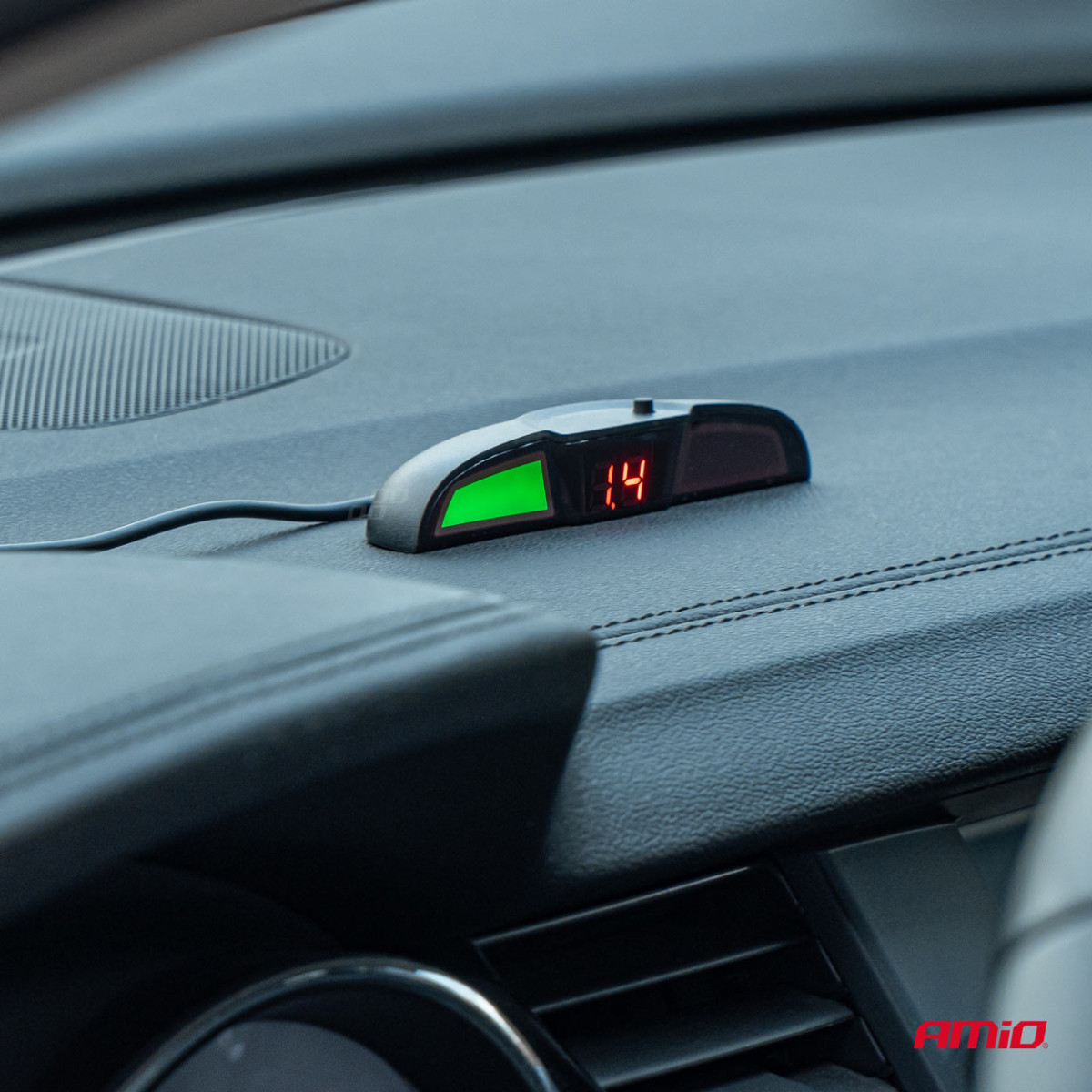

The LED-COB display has COB diodes that change color depending on the distance to the obstacle and show the distance with an accuracy of up to a tenth of a meter. The built-in speaker (buzzer) has 3 volume levels: high, low and off.

• Screen size: 10.5 x 1.5 x 3 cm
• Cable length: ~5 m

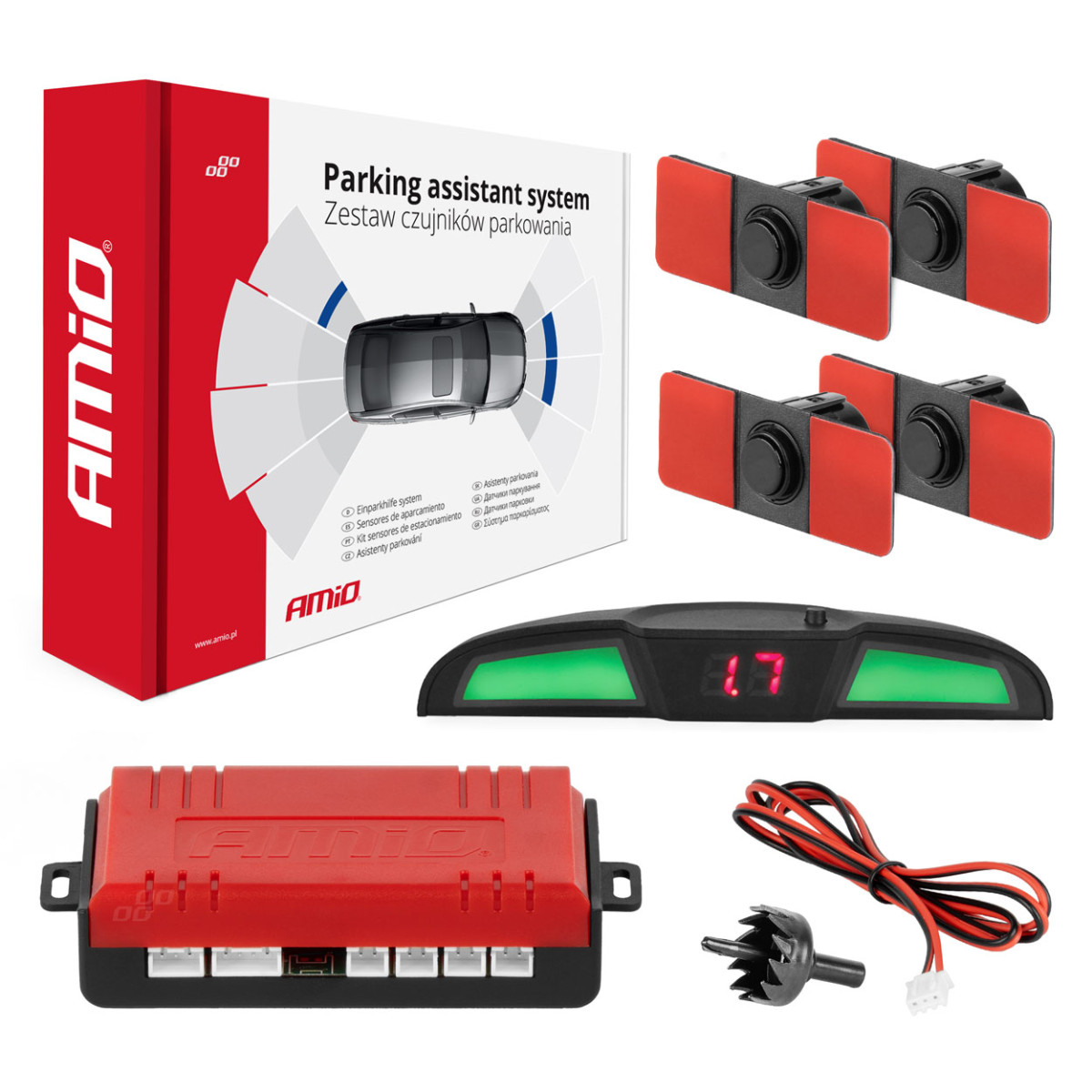

The set includes:

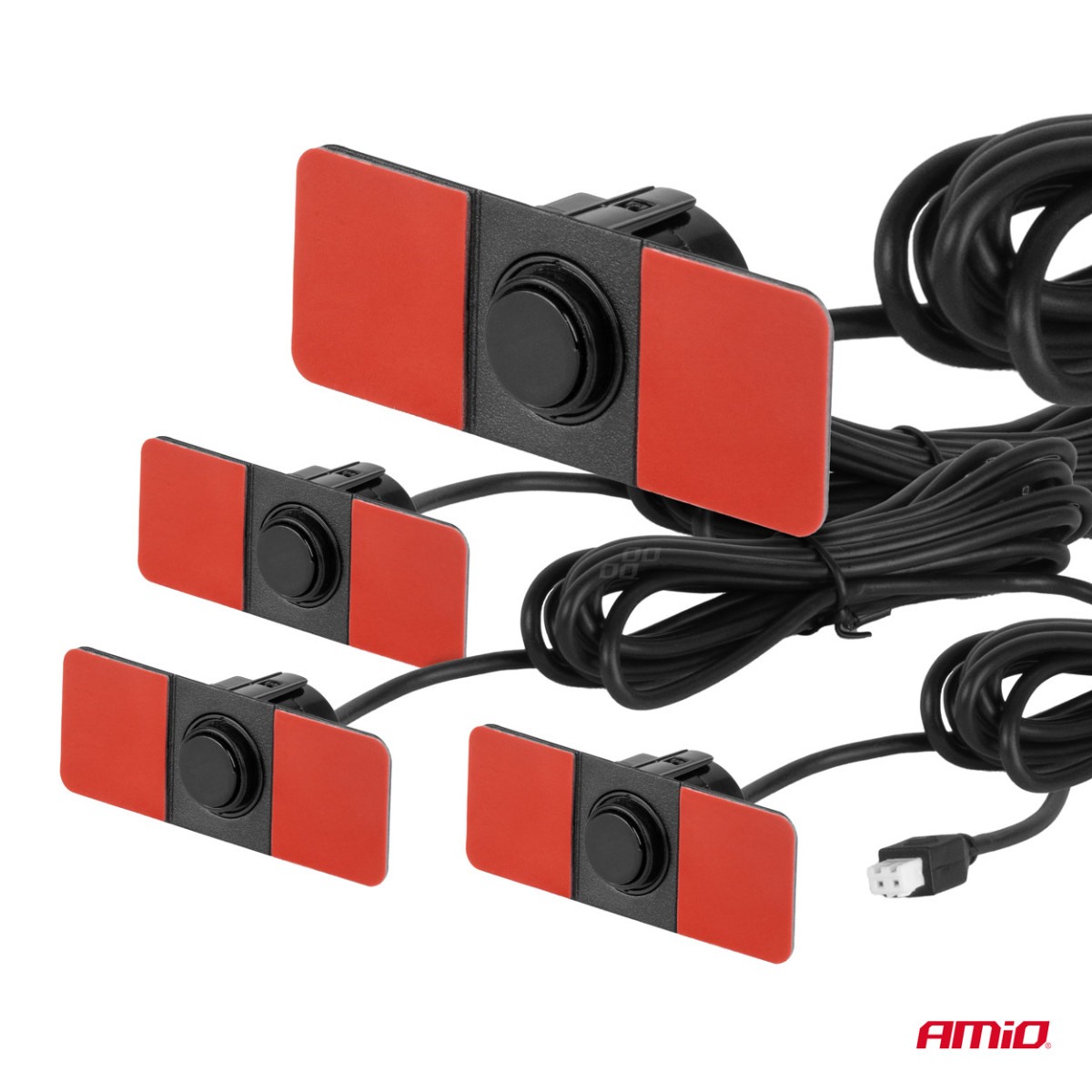

• 4 internal black 16.5 mm sensors
• LED display with built-in buzzer

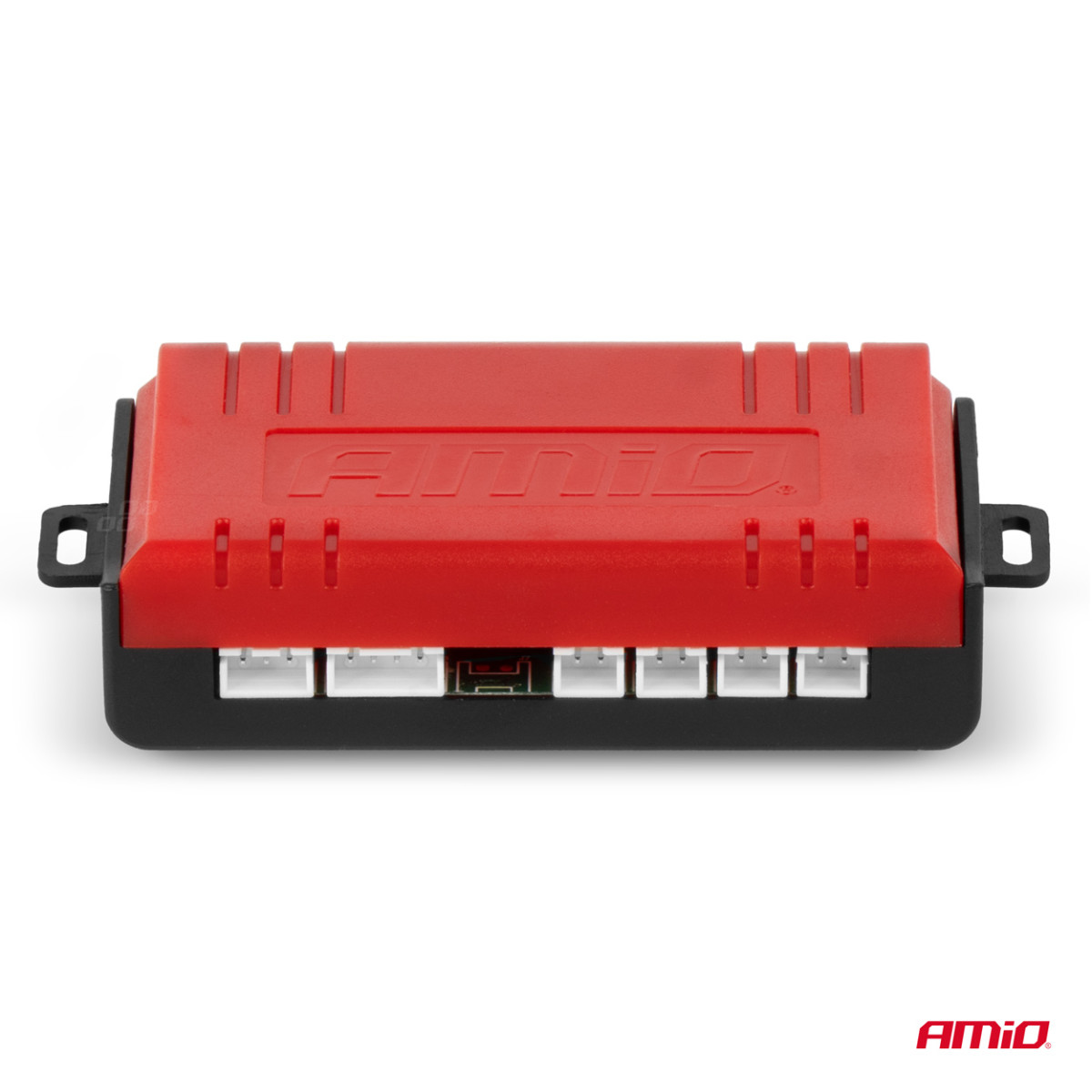

• 4-sensor central control unit
• Drill for drilling holes in the bumper
• Installation instructions

Full specification:

• Detection range/sensitivity: 0-2.5 m
• Power supply: 12V
• Operating frequency rate: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 16.5 mm
