Parking assistance system LED-GRAF 3D, 4 black sensors 16.5 mm, internal installation AMIO-03190

Parking assistance system is a device that helps with parking and reversing. A universal and reliable solution for drivers who value road safety. The system is easy to use, functional and turns on automatically. Thanks to ultrasonic sensors, you will no longer hit your car against obstacles. When reversing or parking, the device accurately detects obstacles and warns the driver with an audible signal (based on the distance to the obstacle), and information is additionally displayed on the screen, if included in the kit.

Device specification:

• power supply: 12V DC;
• power consumption: <4W;
• operating frequency: 40 kHz;
• operating temperature: -30°C to +55°C;
• obstacle detection distance: 2.5 – 0.3 m;
• measurement error: ±5 cm;
• sensor cable length: 2.2 m;
• screen cable length: 5 m.

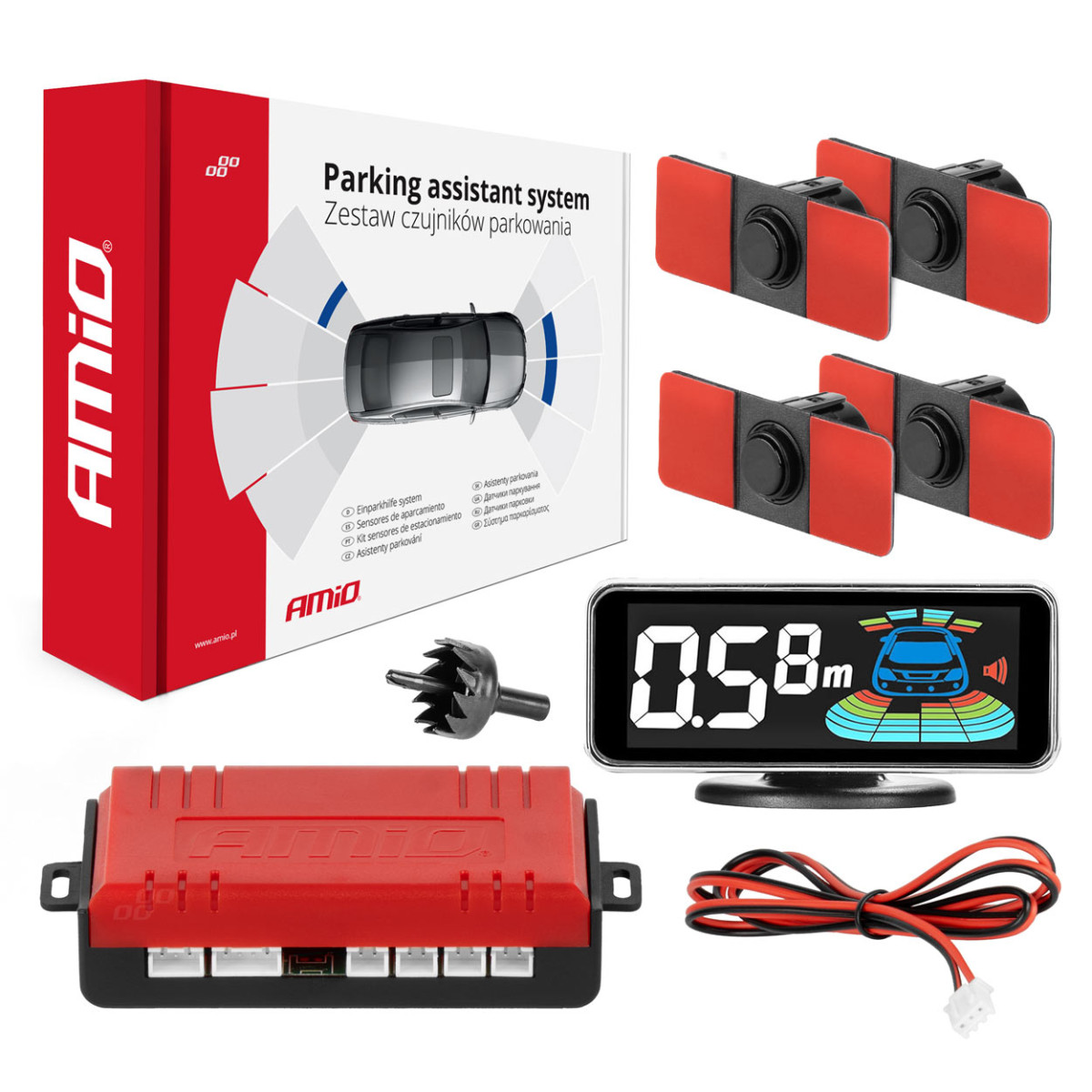

• The set includes:

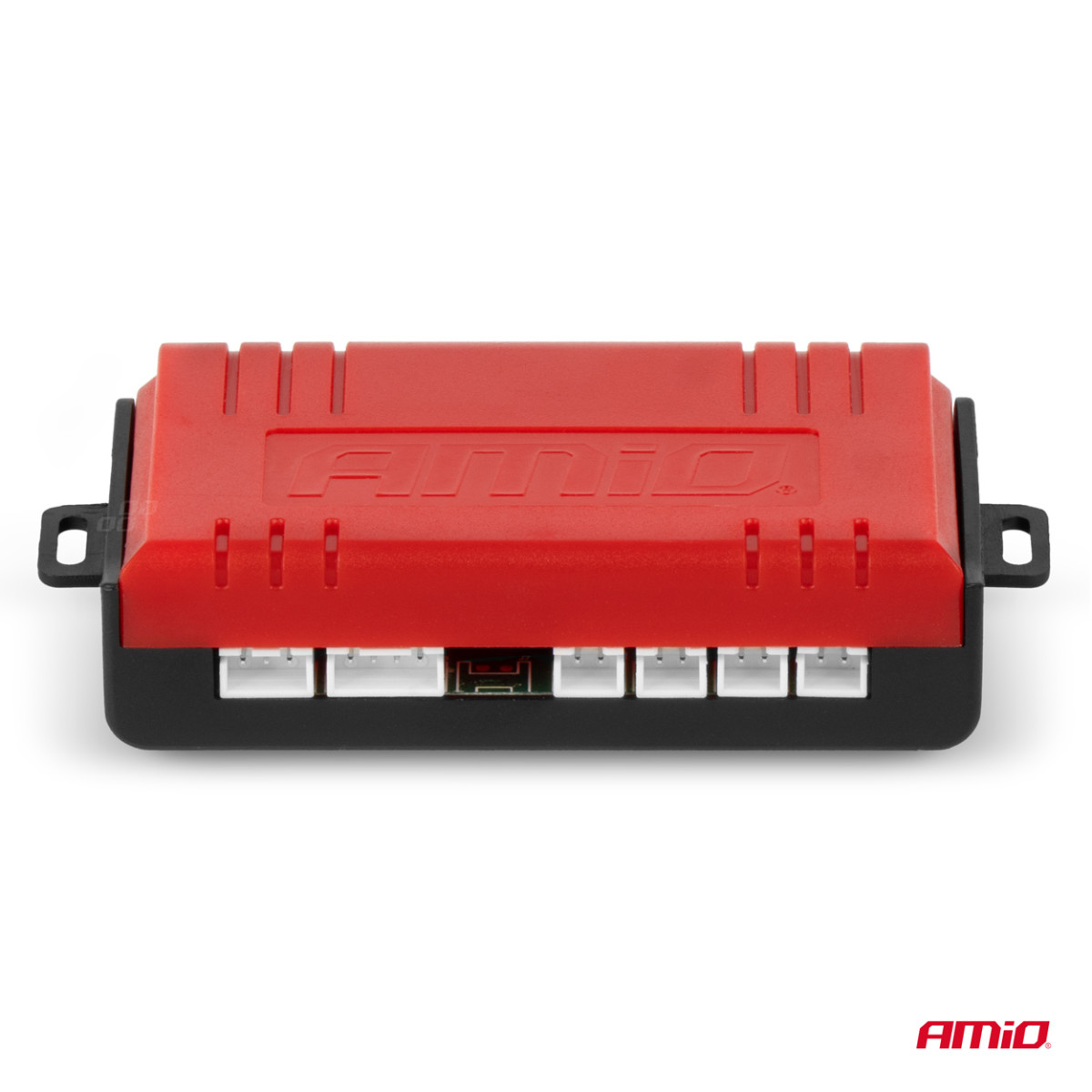

• control unit;

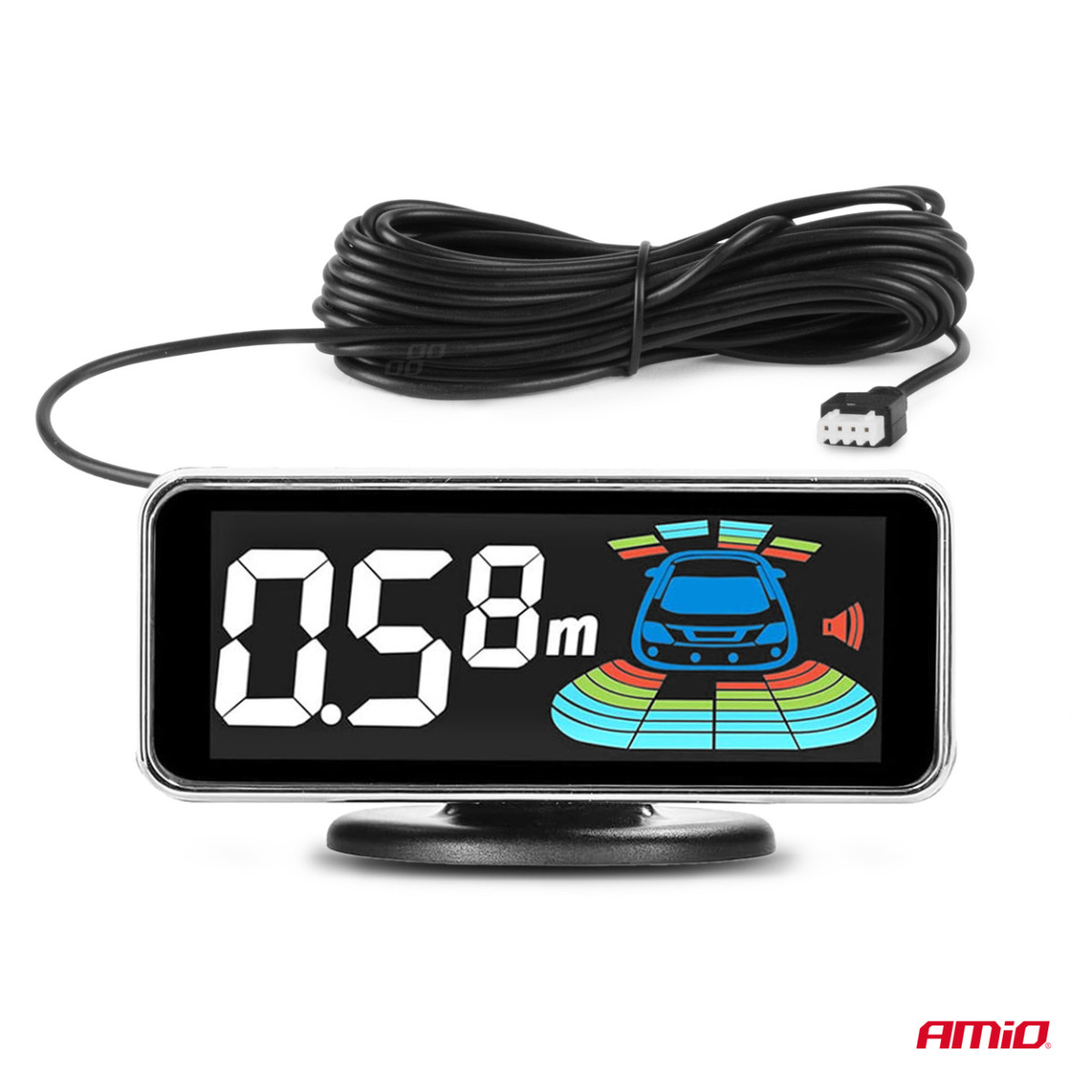

• screen;

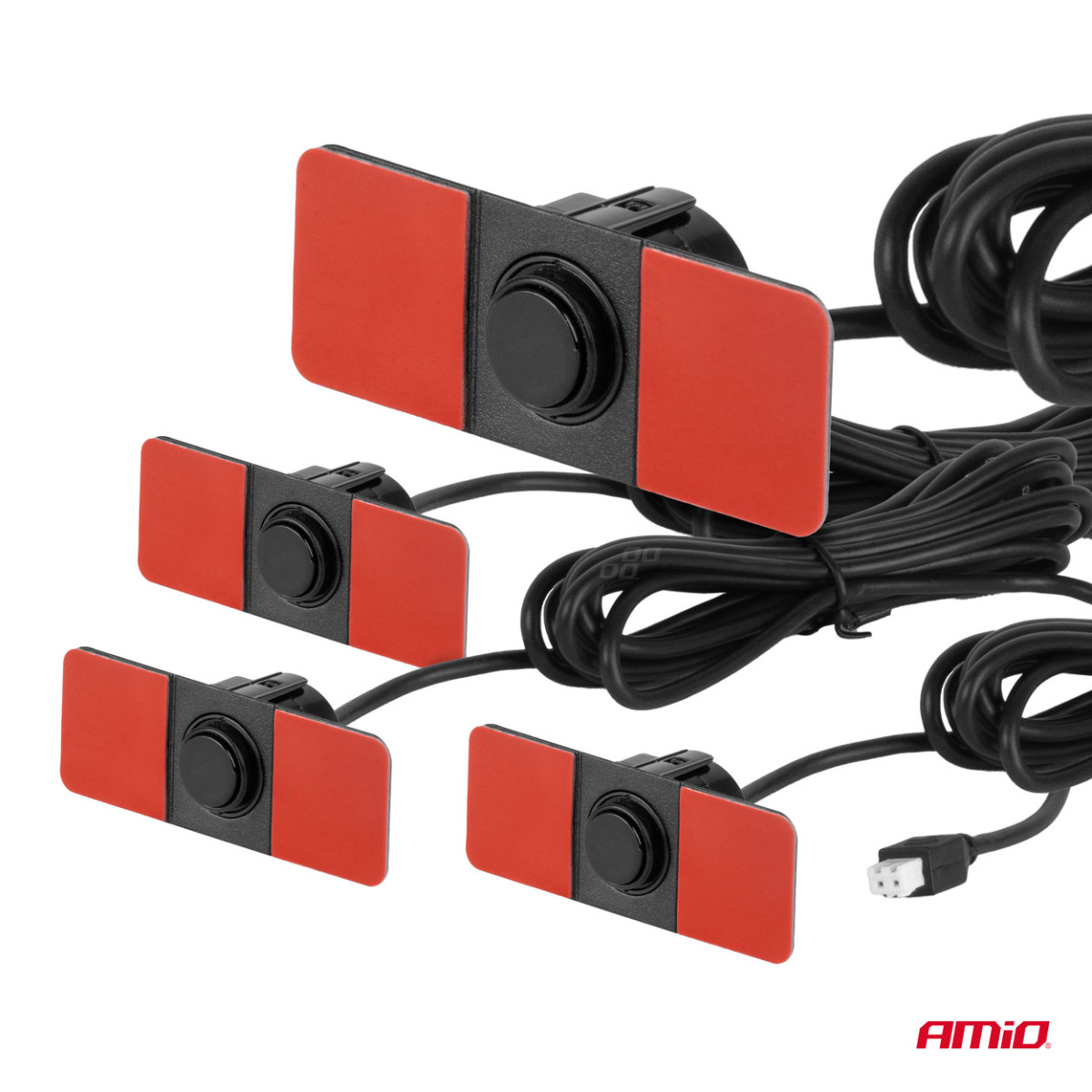

• 4 black internal mounting sensors 16.5 mm;
• wiring harness;
• installation drill;
• instruction manual.

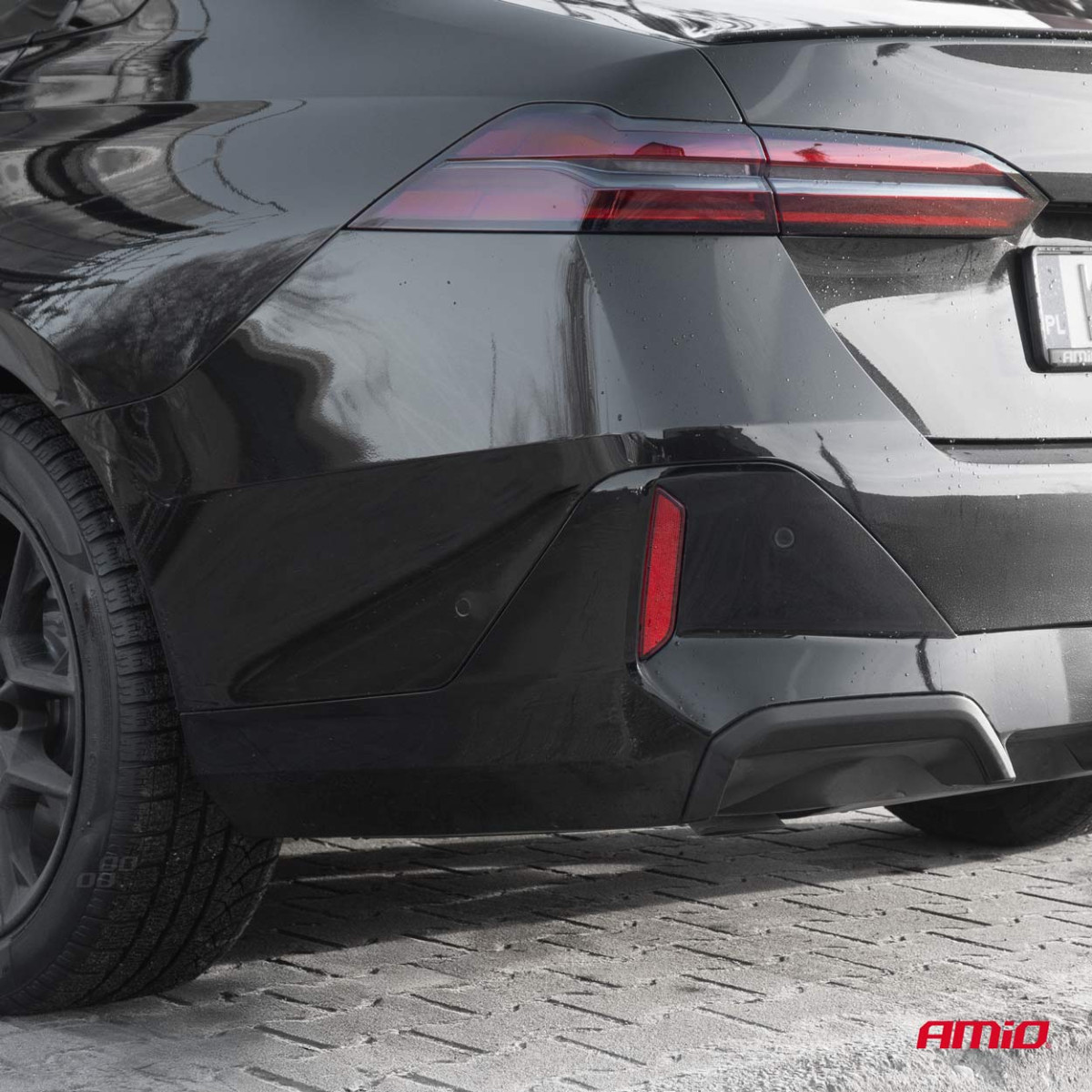

The sensors included in the kit can be installed in various configurations at the front or rear of the car, thus increasing safety in the vehicle.
The rear sensors are activated automatically when reverse gear is engaged, and the front sensors are activated when the brake pedal is pressed. The control unit is calibrated at the factory.
The front sensors are activated when the brake pedal is pressed (brake lights come on). After pressing and releasing the pedal, the sensors operate for 15 seconds. The system is activated when an obstacle is detected up to 80 cm from the car.

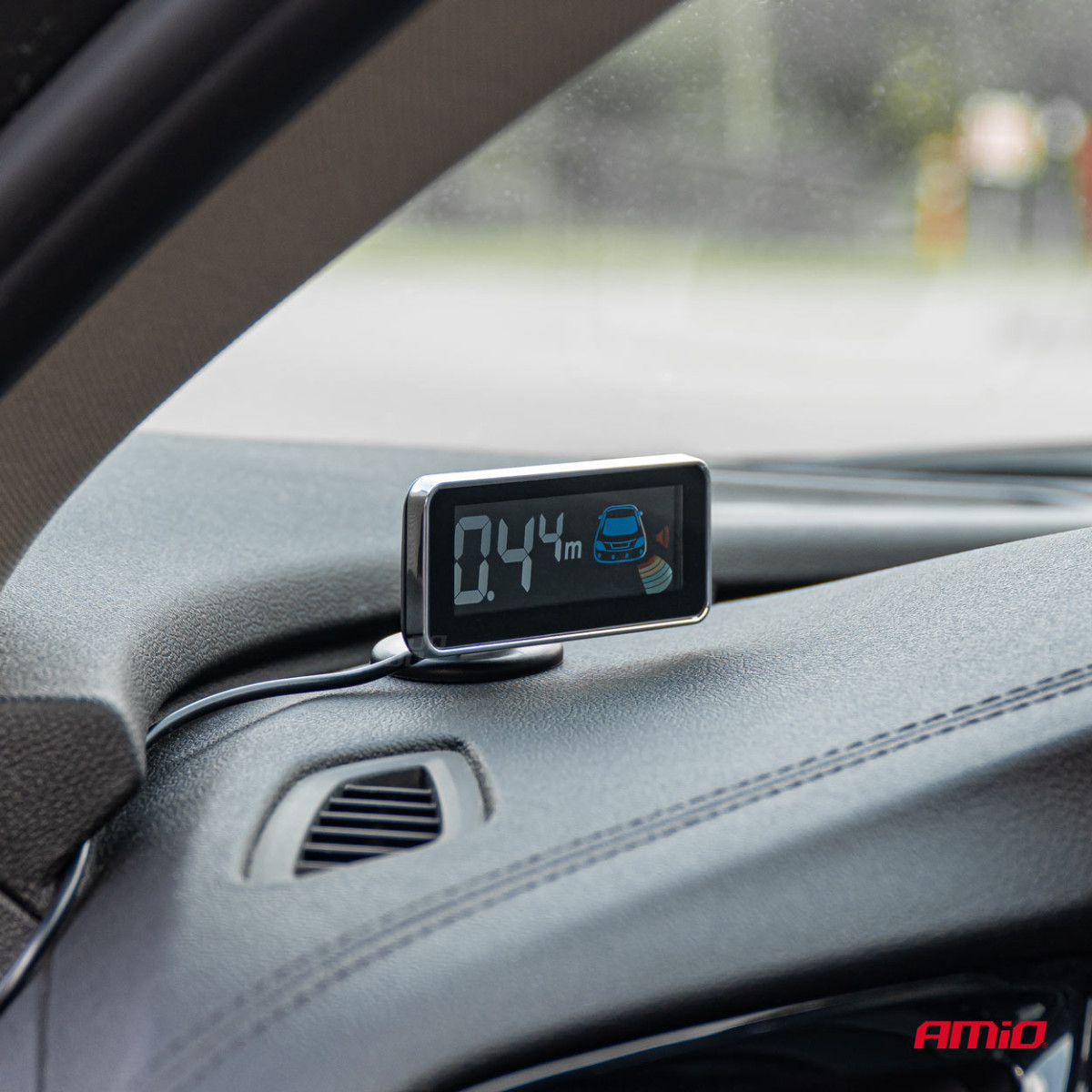

Obstacle detection is signaled by distance readings, a graphic indicator and an additional audible signal via the integrated speaker.
The kit uses high-end sensors with a flat flange.
The sensors are completely waterproof. They are also resistant to atmospheric influences - snow, rain or fog.
If necessary, the sensors can be painted with 1-2 layers of paint (self-made).
The kit includes all the necessary installation elements: a drill with a crown, power and sensor cables, a control unit, sensors and a display or an audible alarm (depending on the configuration). Thanks to the simple installation, you can easily and quickly install the system yourself.
A universal product that fits most cars. Extension cables for commercial vehicles are also available if the standard cables in the kit are too short.
