Parking assistance system LED-GRAF 3D, 8 black sensors 19 mm, for trucks AMIO-03195

Parking assistance system is a device that helps you safely park and maneuver in reverse. It is a universal and proven system for those who value safety on the road. The system is simple and functional, it turns on automatically. Using ultrasonic sensors, you will never accidentally encounter obstacles.

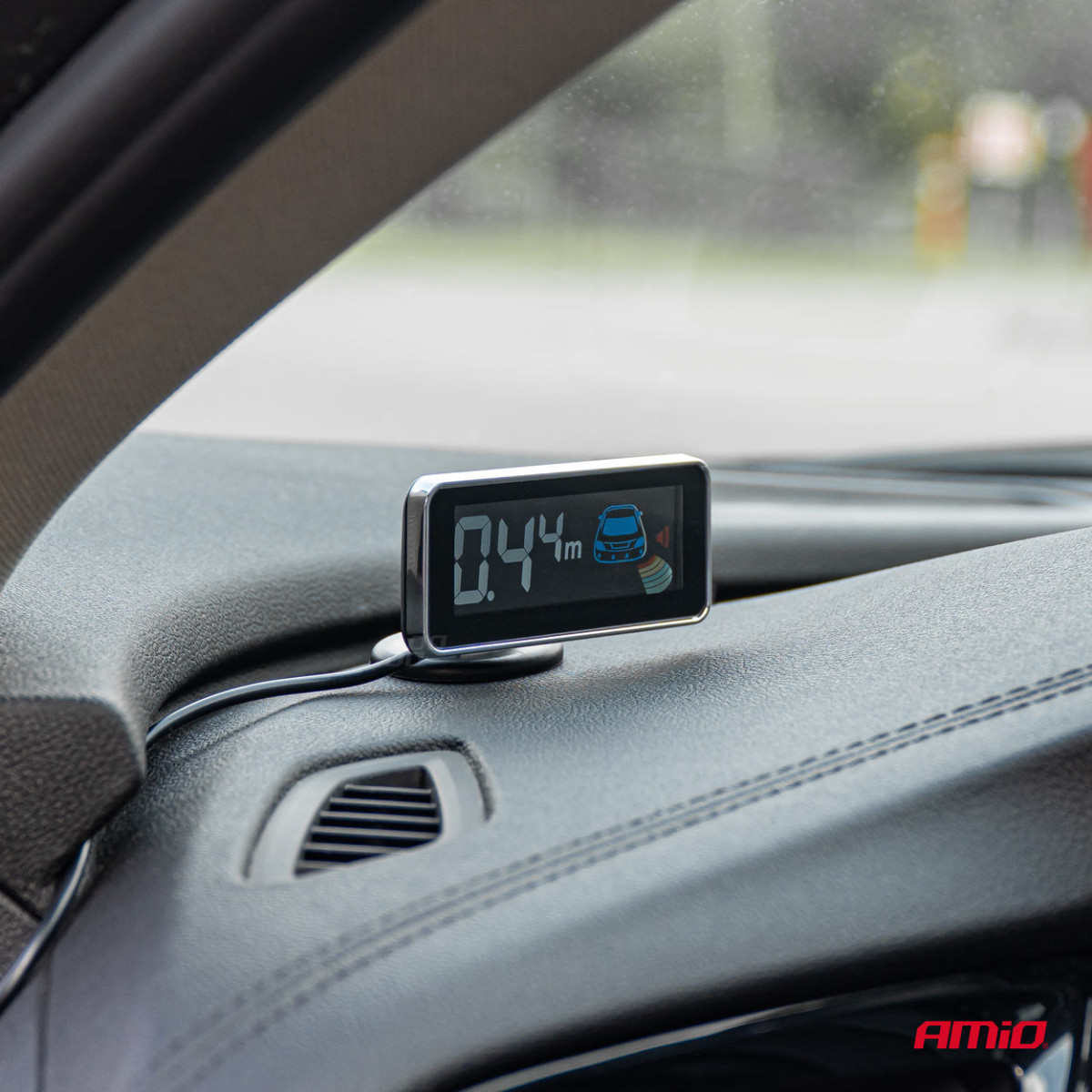

When parking or reversing, the system accurately detects obstacles and warns the driver with an acoustic signal depending on the distance to the object. If the LED-GRAF 3D display is included, the information is also displayed visually.

TECHNICAL DATA

• Power supply: 12V DC
• Power consumption: < 4 W
• Operating frequency rate: 40 kHz
• Operating temperature: -30 °C to +55 °C
• Obstacle detection range: 0.3 – 2.5 m
• Measurement error: ± 5 cm
• Sensor cable length: 2.2 m
• Display cable length: 5 m

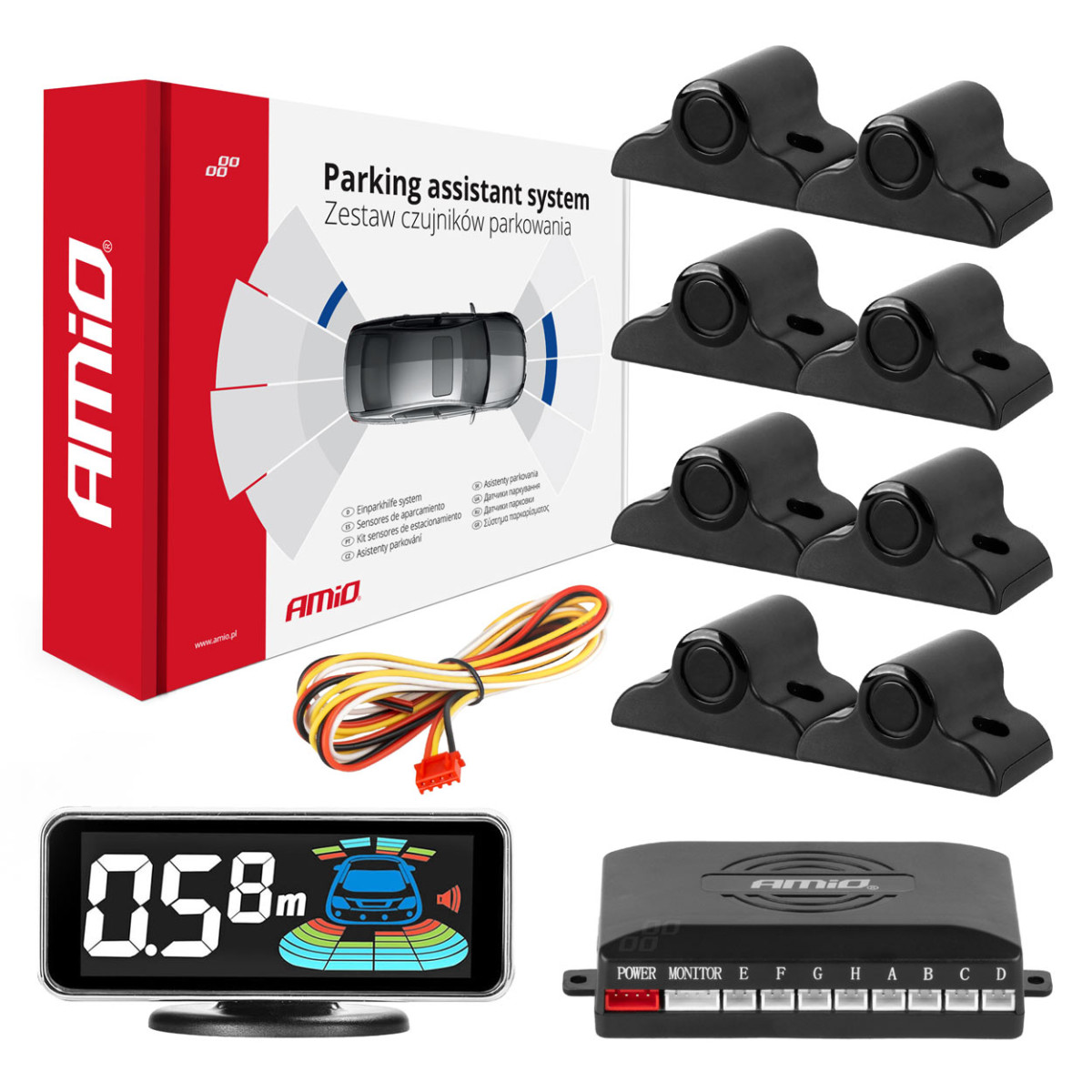

KIT CONTENTS

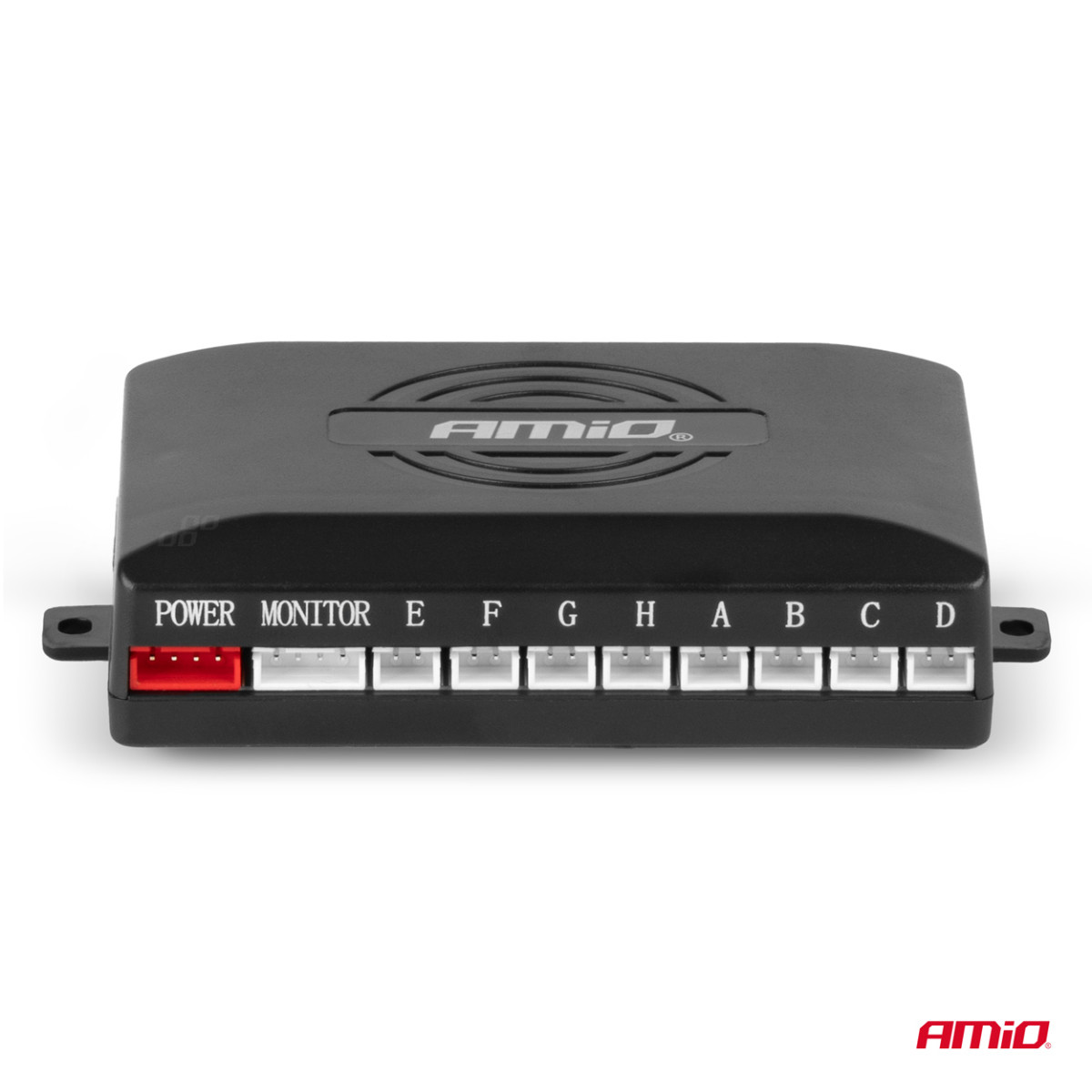

• Control unit

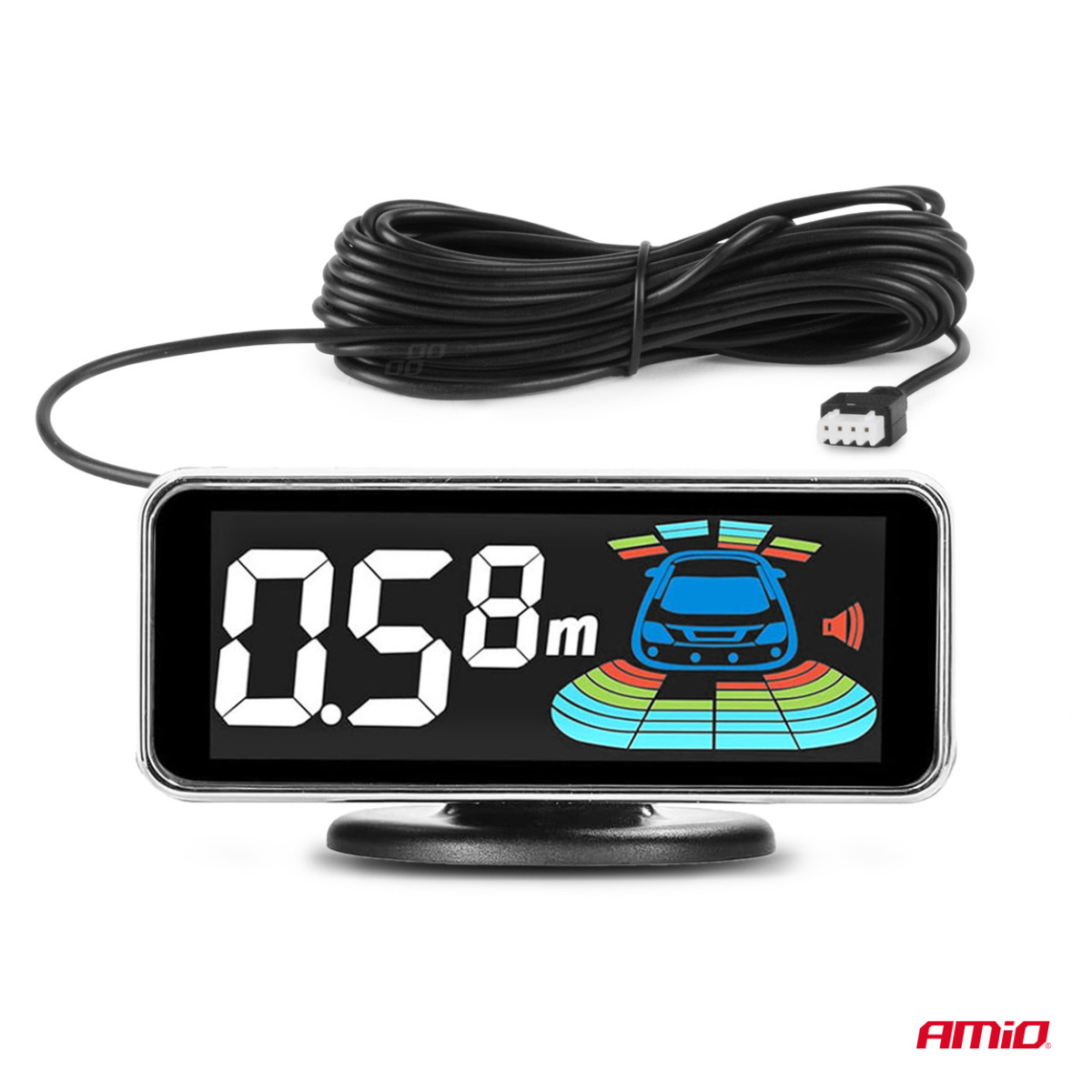

• LED-GRAPH 3D screen

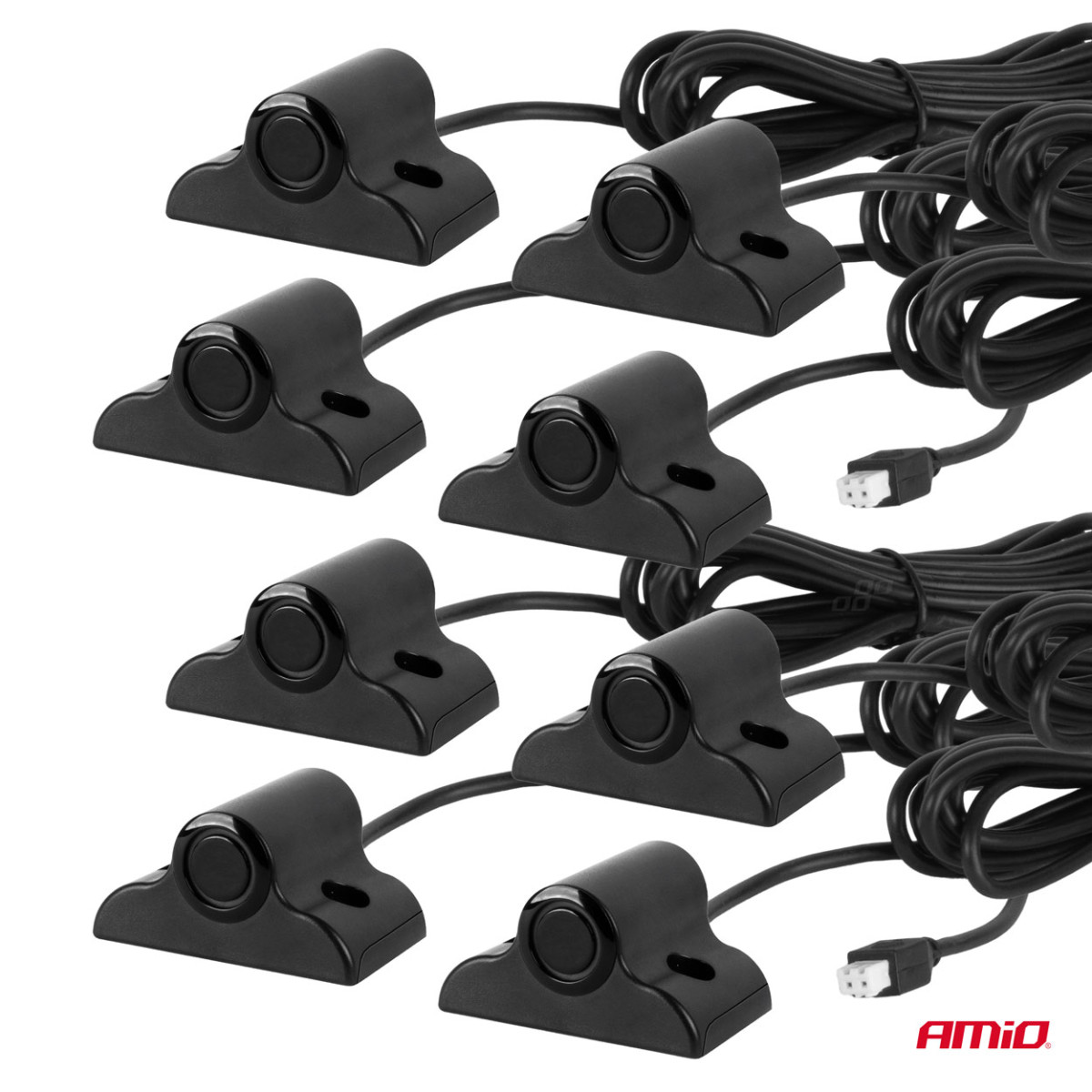

• 8 black TRUCK sensors 19 mm
• Cables and wires
• Installation drill
• User manual

FUNCTIONS AND USE

• Sensors can be installed at the front or rear of the car as needed, increasing safety.
• The rear sensors are activated automatically when reverse gear is engaged, the front sensors are activated when the brake pedal is pressed.
• The control unit is factory calibrated.
• The front sensors operate for 15 seconds after the brake pedal is pressed and released. The system detects obstacles up to 80 cm away from the car.
• When an obstacle is detected, the system informs about the distance, graphically and additionally with an audio signal through the built-in speaker.

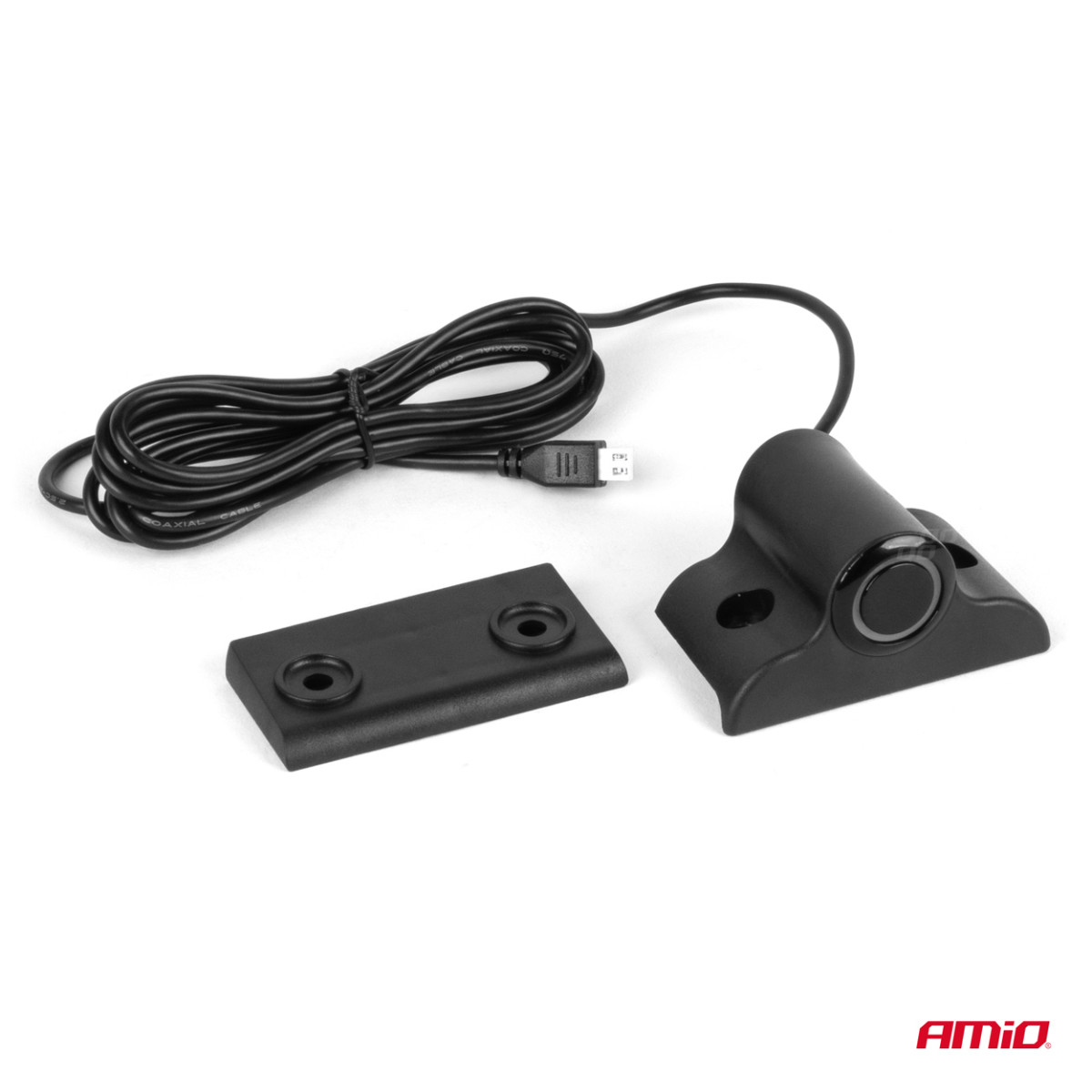

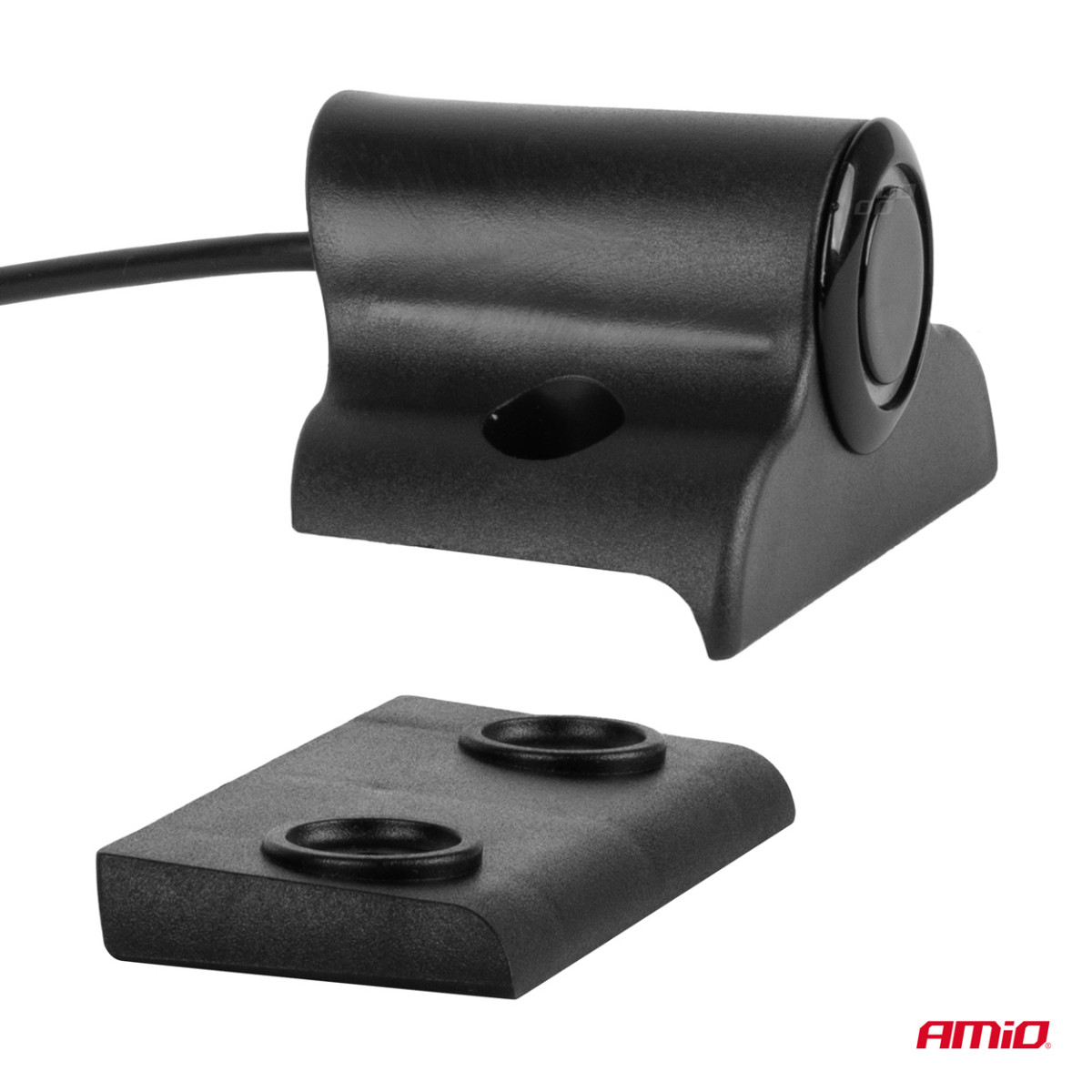

• High-end sensors with flat flange.
• The sensors are completely resistant to water and environmental influences (snow, rain, fog).
• It is possible to paint the sensors in 1-2 layers (independently).

INSTALLATION

• The kit includes all necessary installation elements: drill with crown, cables (power and sensor), control unit, sensors, display or buzzer.
• Intuitive installation and included mounting elements allow you to quickly install the system yourself.

VERSATILITY

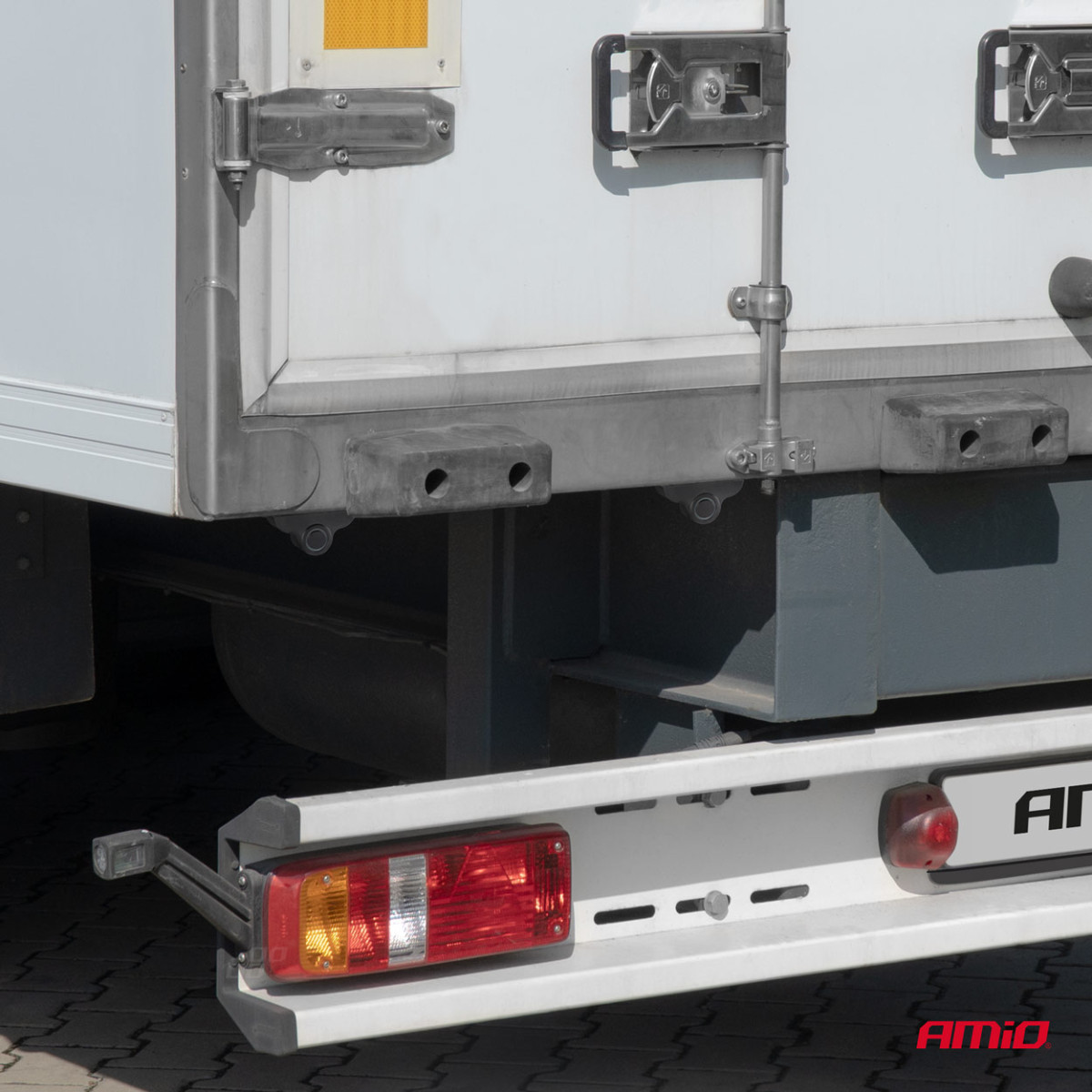

• The system is universal, suitable for most trucks and vans.
• If necessary, extension cables for vans can be used if the cables included in the kit are too short.
