Parking assistance system LED-GRAF, 8 black sensors 22 mm AMIO-01559

Modern 8-sensor parking system – ensures safe parking and assistance when reversing.

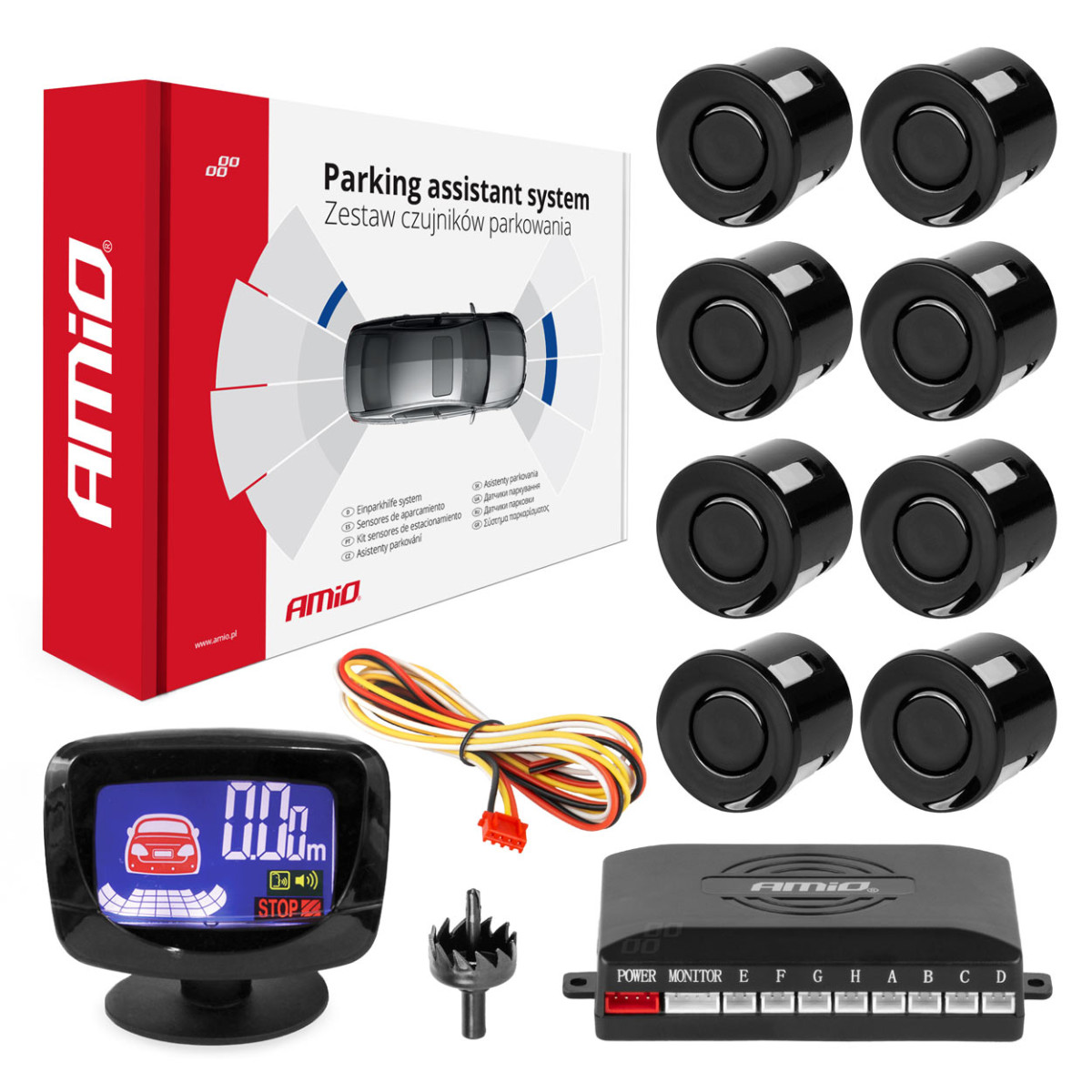

Kit contents:

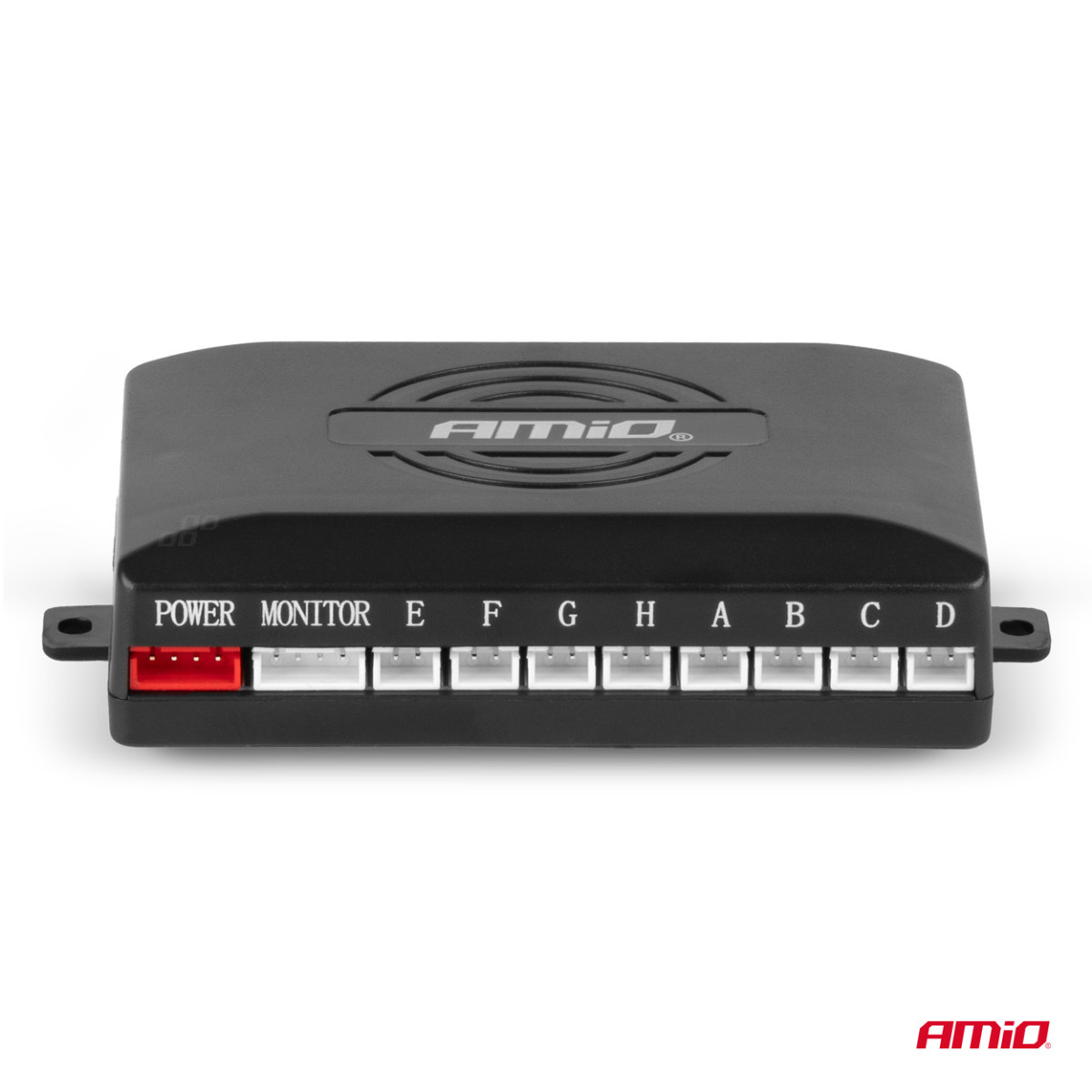

• 8-sensor central control unit (A–D rear, E–H front)

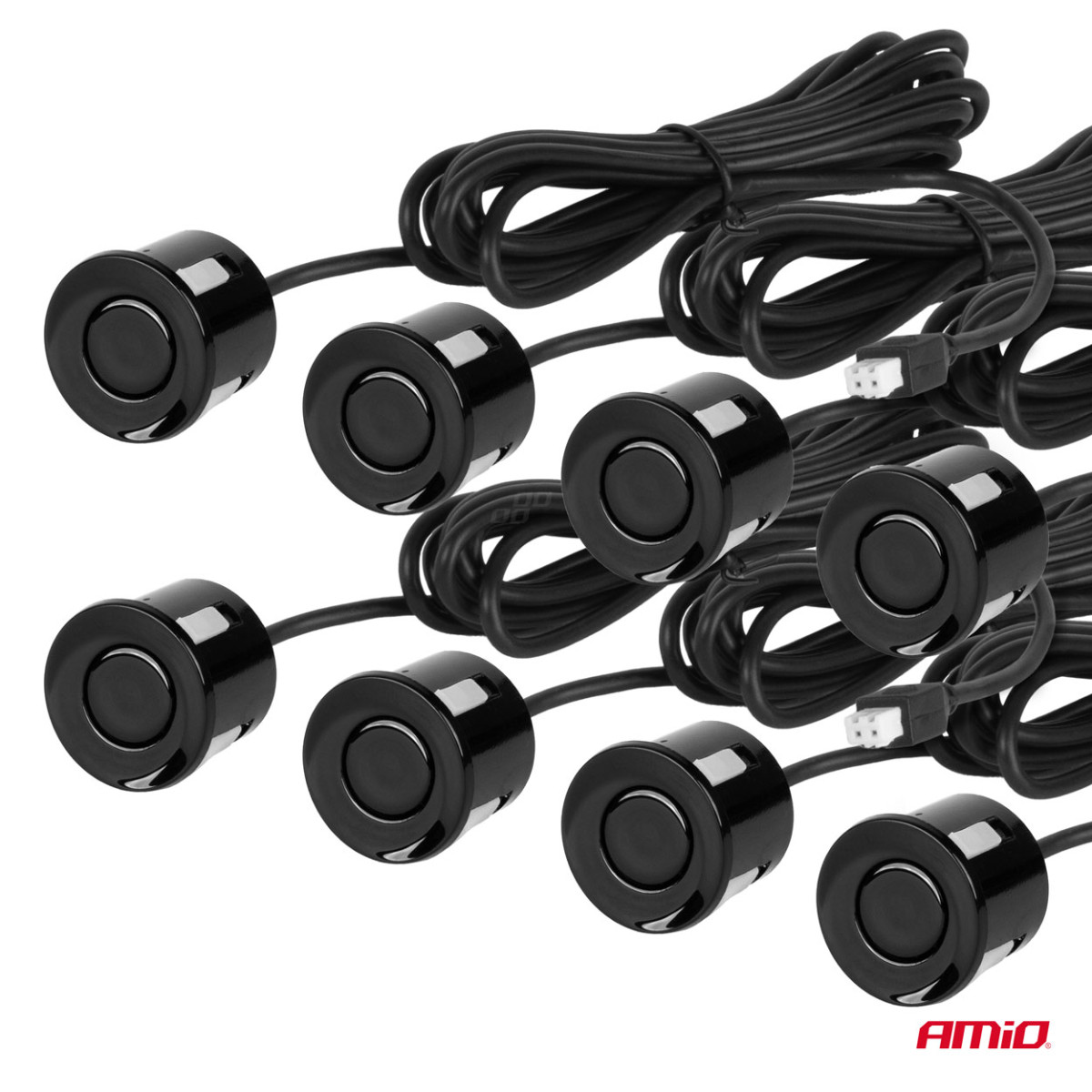

• 8 black parking sensors (front cables 6 m, rear 2.3 m)

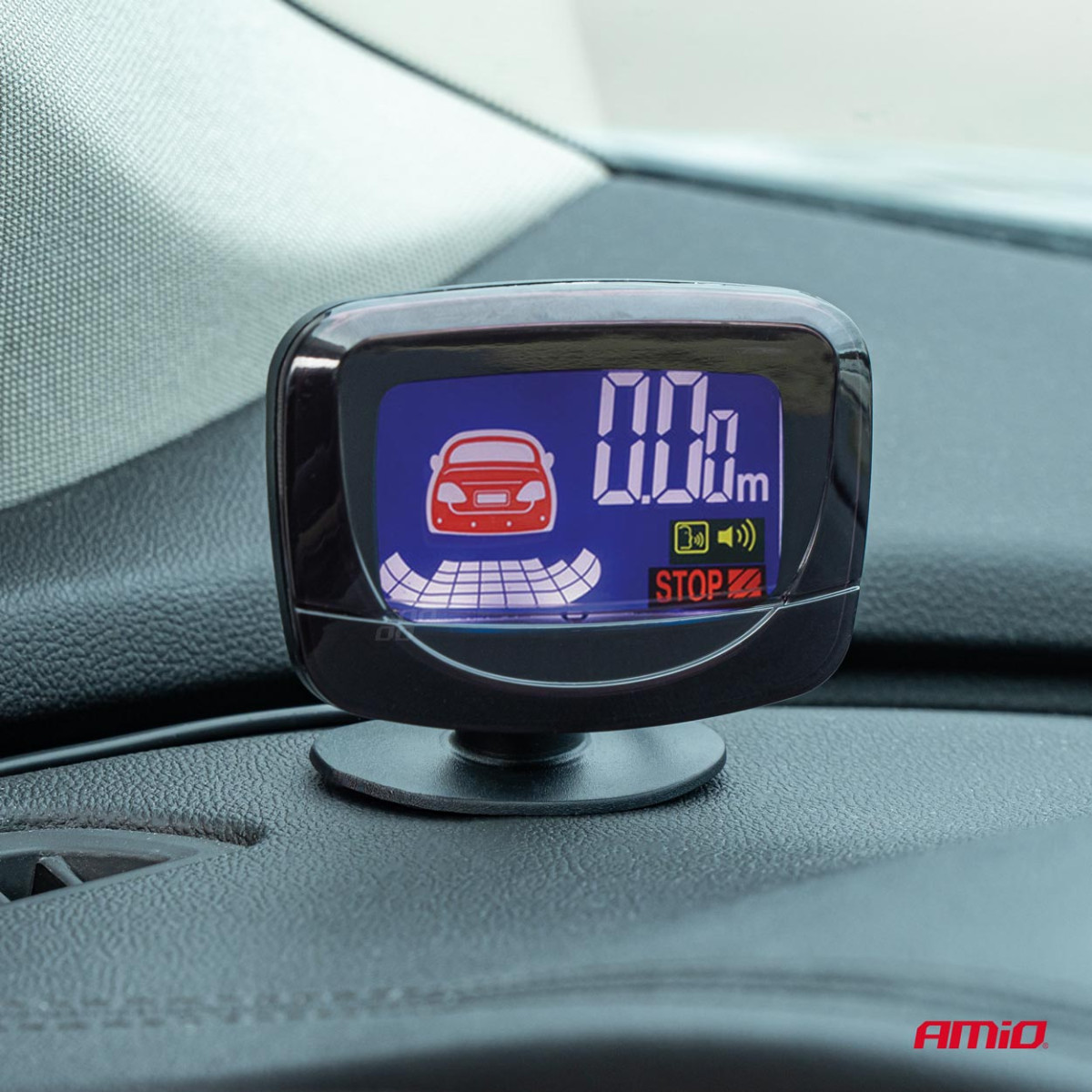

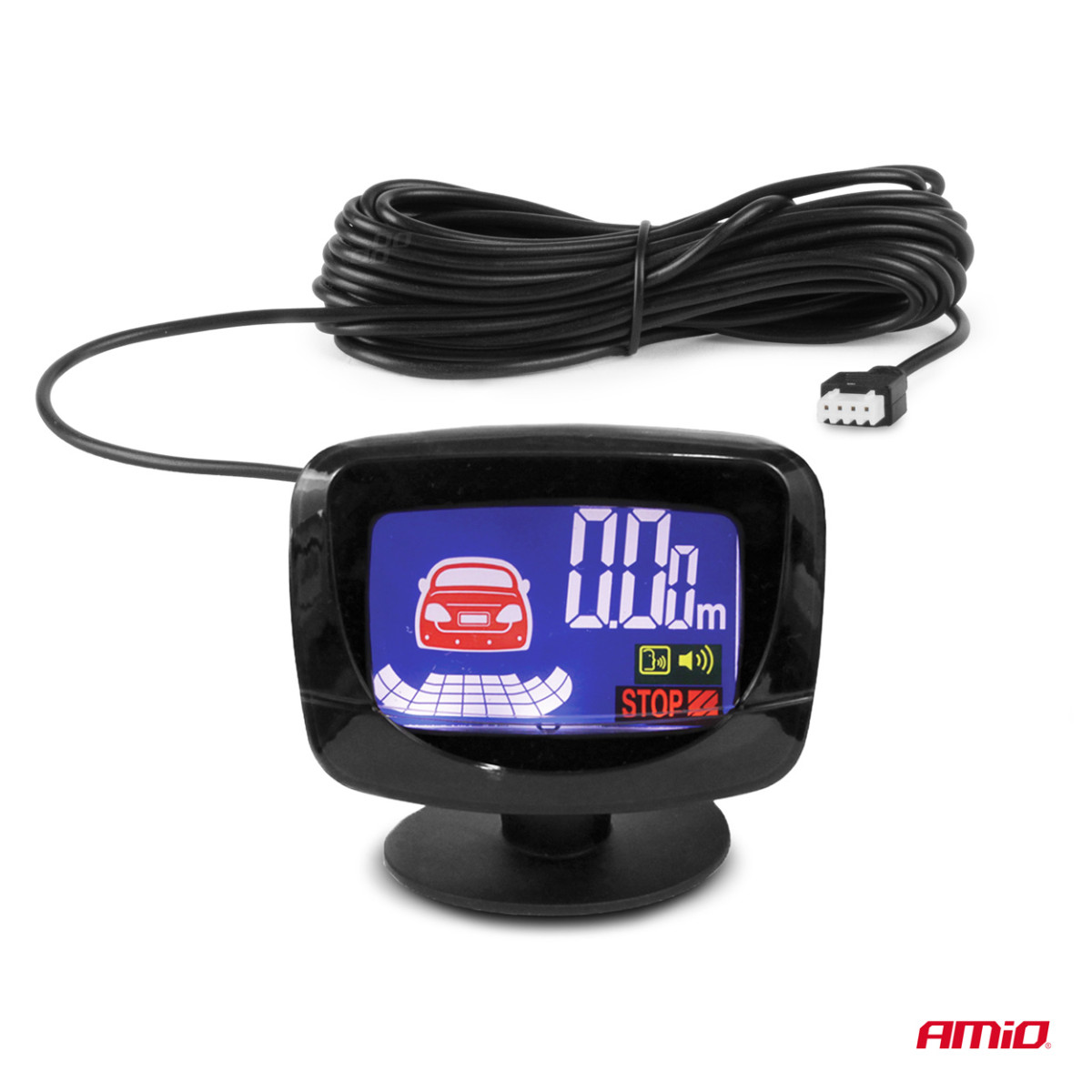

• LED display with graphic display and front-rear separation
• drill for drilling holes in the bumper
• Installation instructions

Parking sensors are an auxiliary parking and reversing system. It works on the sonar principle - it emits ultrasonic waves, which, when reflected from obstacles, allow you to determine the distance to the object. When reversing, the system accurately detects obstacles and warns the driver with an audible signal (the intensity depends on the distance to the obstacle) or on the LED display.

Technical specification:

• Operating distance/sensitivity: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: from -30 °C to +70 °C
• Mounting diameter: 22 mm
