Parking assistance system MAX LED, 4 black sensors, internal mounting 16.5 mm AMIO-02291

Parking sensor – a device that helps the driver of a car safely park and reverse. It works on the sonar principle – it emits ultrasonic waves, which, when reflected from an obstacle, allow you to determine the distance to the object. During reversing, the sensor accurately detects obstacles in the car's path and warns the driver with an audible signal.

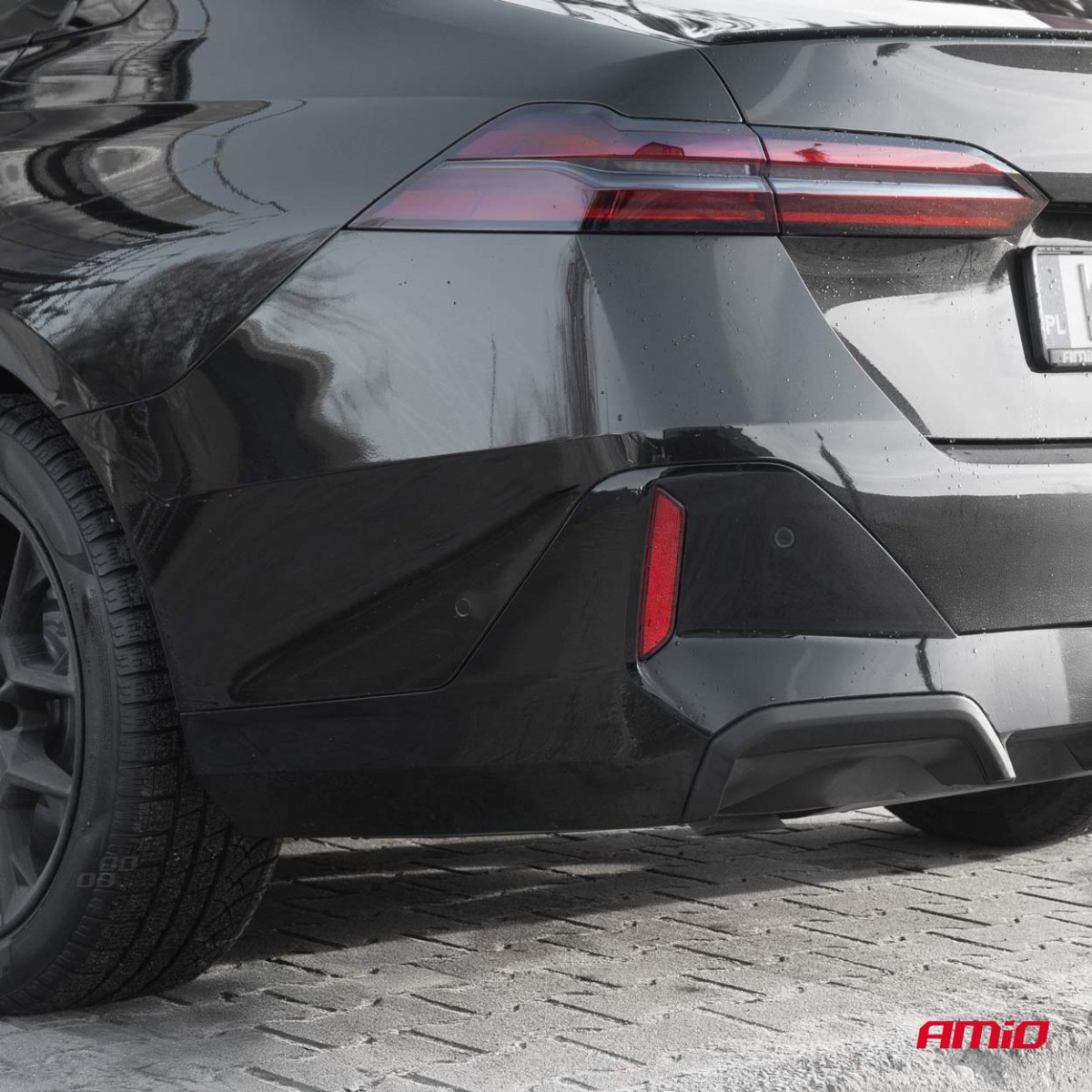

The new sensors are mounted on the inside of the bumper and do not protrude beyond it. The small size provides an aesthetic appearance. The sensors can be painted - it is recommended to use no more than two thin, even coats of paint.

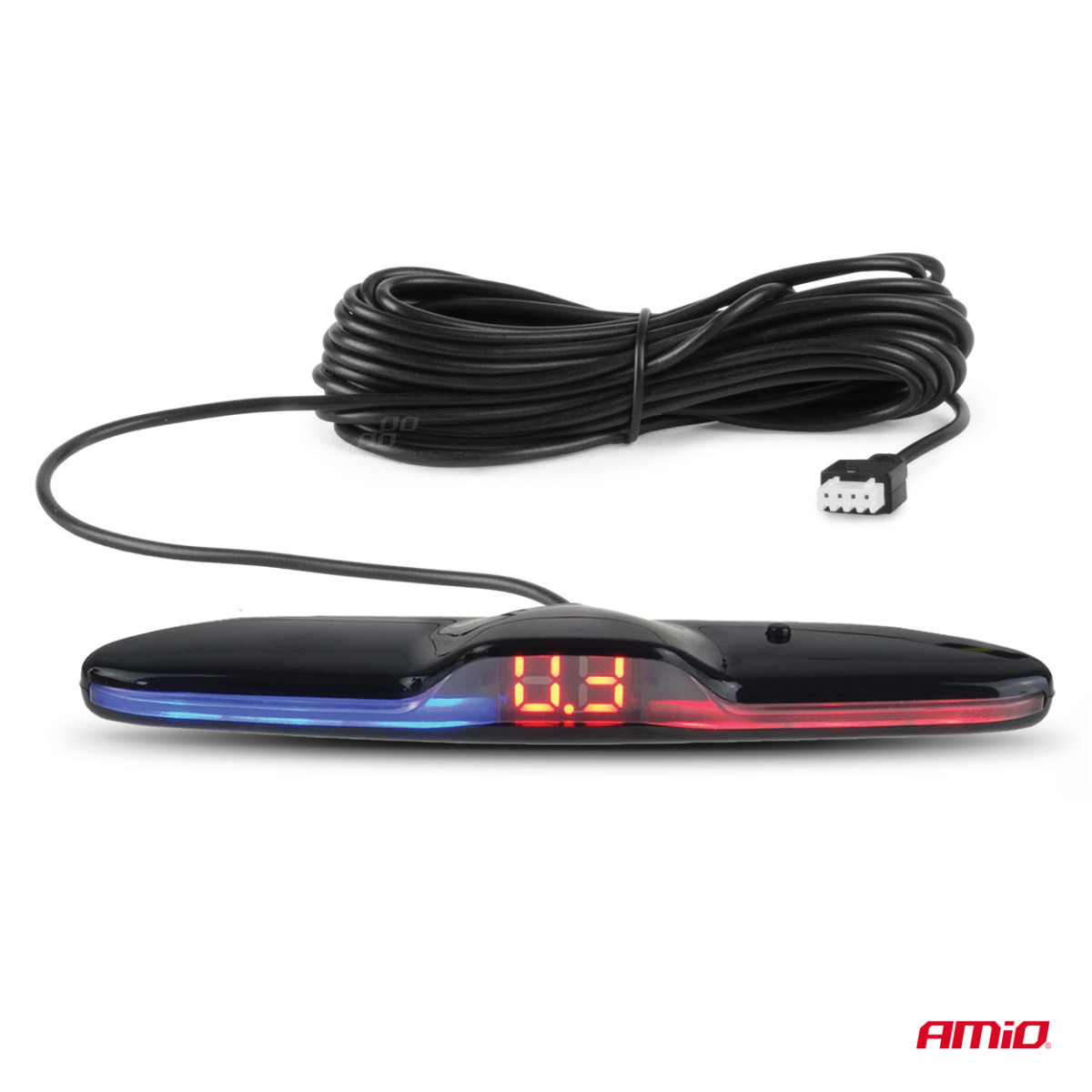

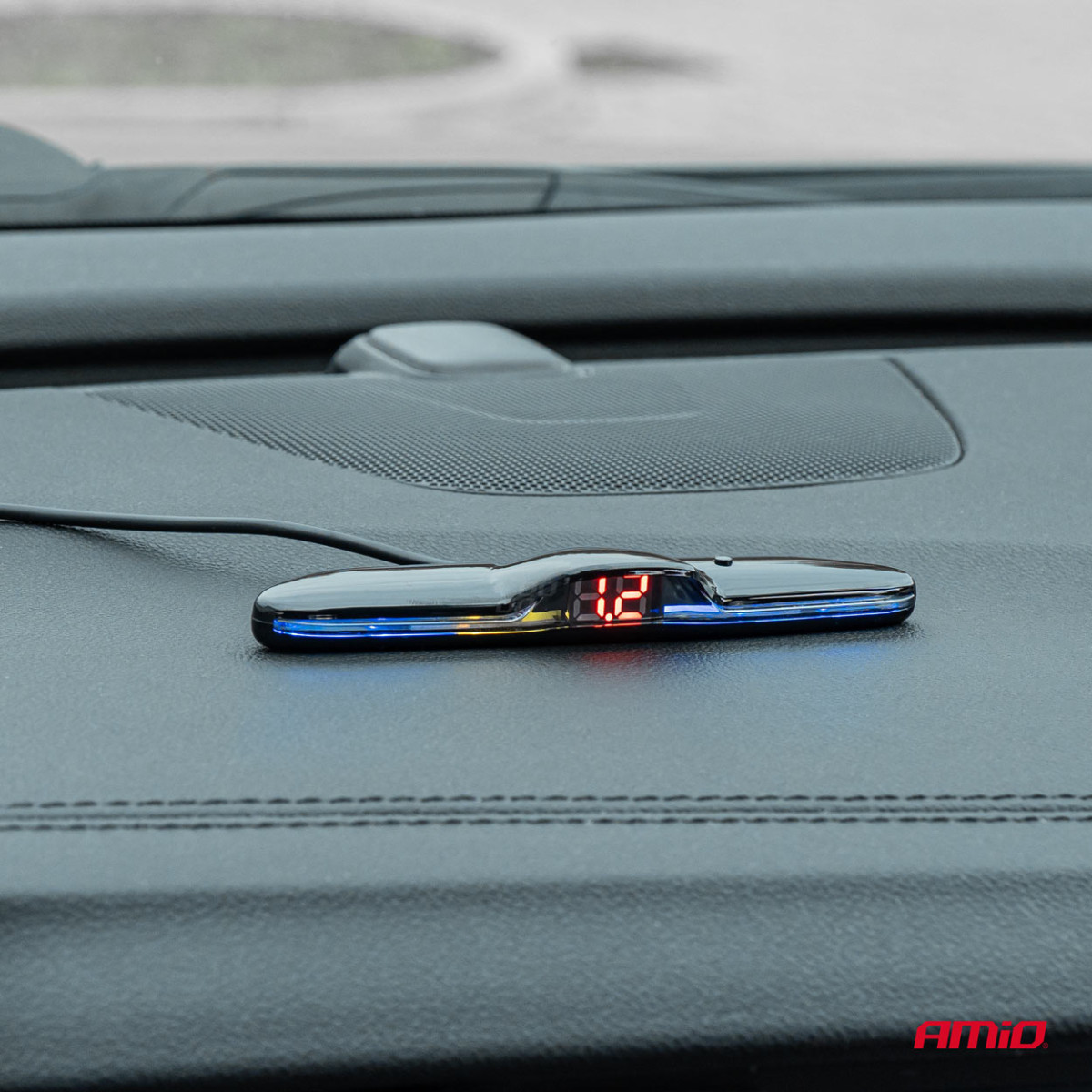

The MAX-LED display has a modern design, with the top covered in a glossy black coating ("piano black").

The display shows the distance to the obstacle with an accuracy of up to tenths of a meter. The built-in speaker (buzzer), which warns of an obstacle, has 3 volume levels: high, low, silent.

• Screen dimensions: 12 x 1.5 x 3 cm
• Cable length: ~5 m

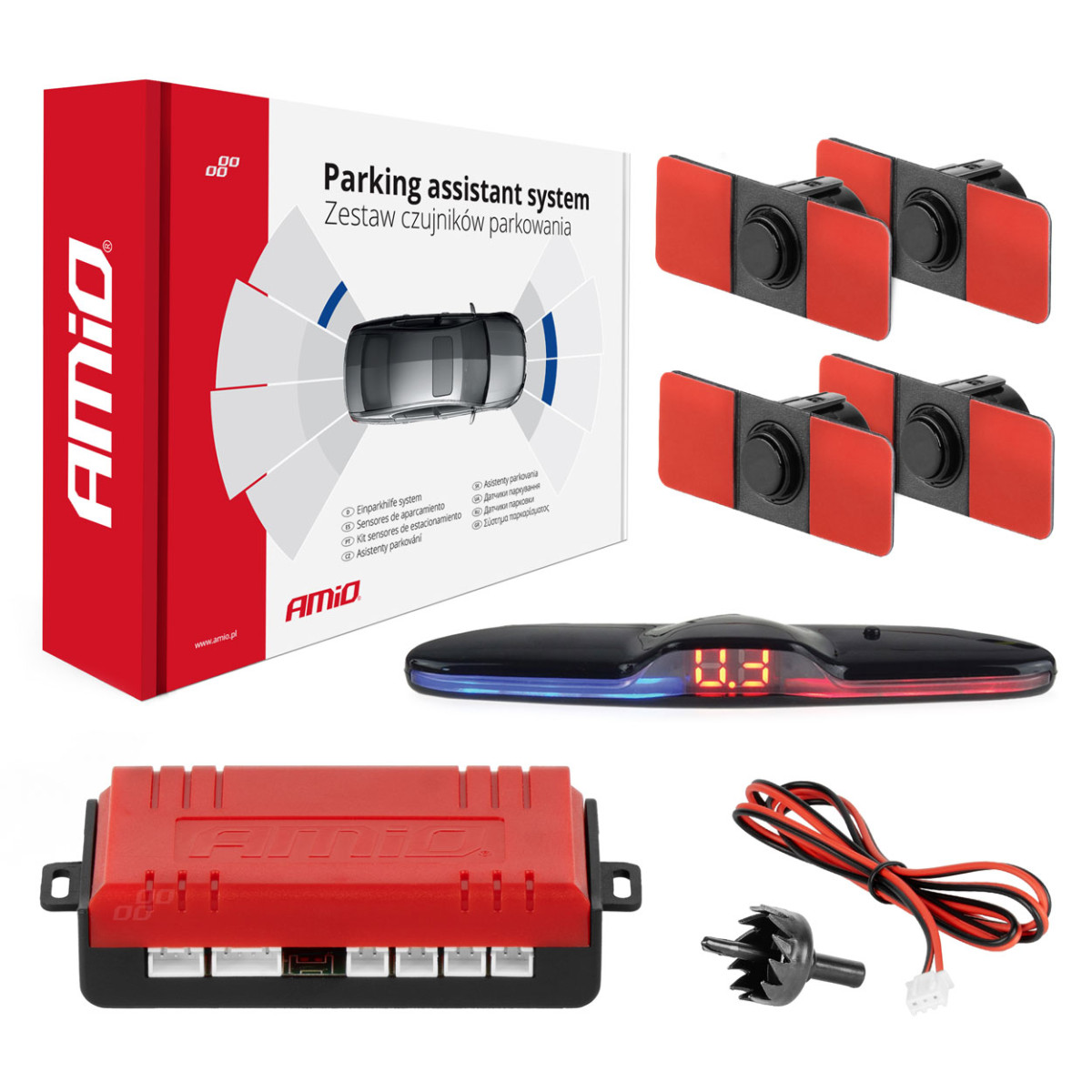

Included:

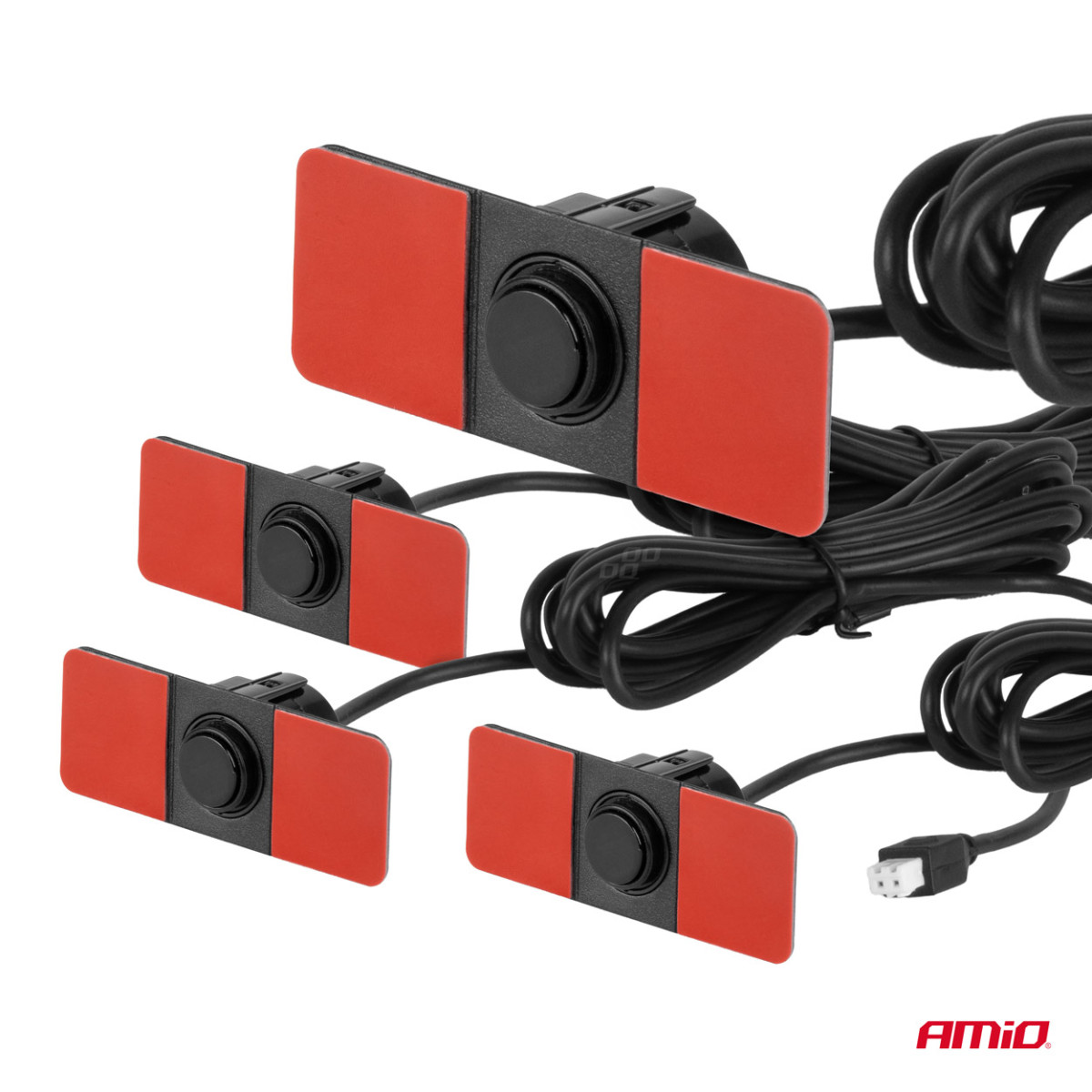

• 4 black internal sensors, 16.5 mm
• LED display with integrated buzzer

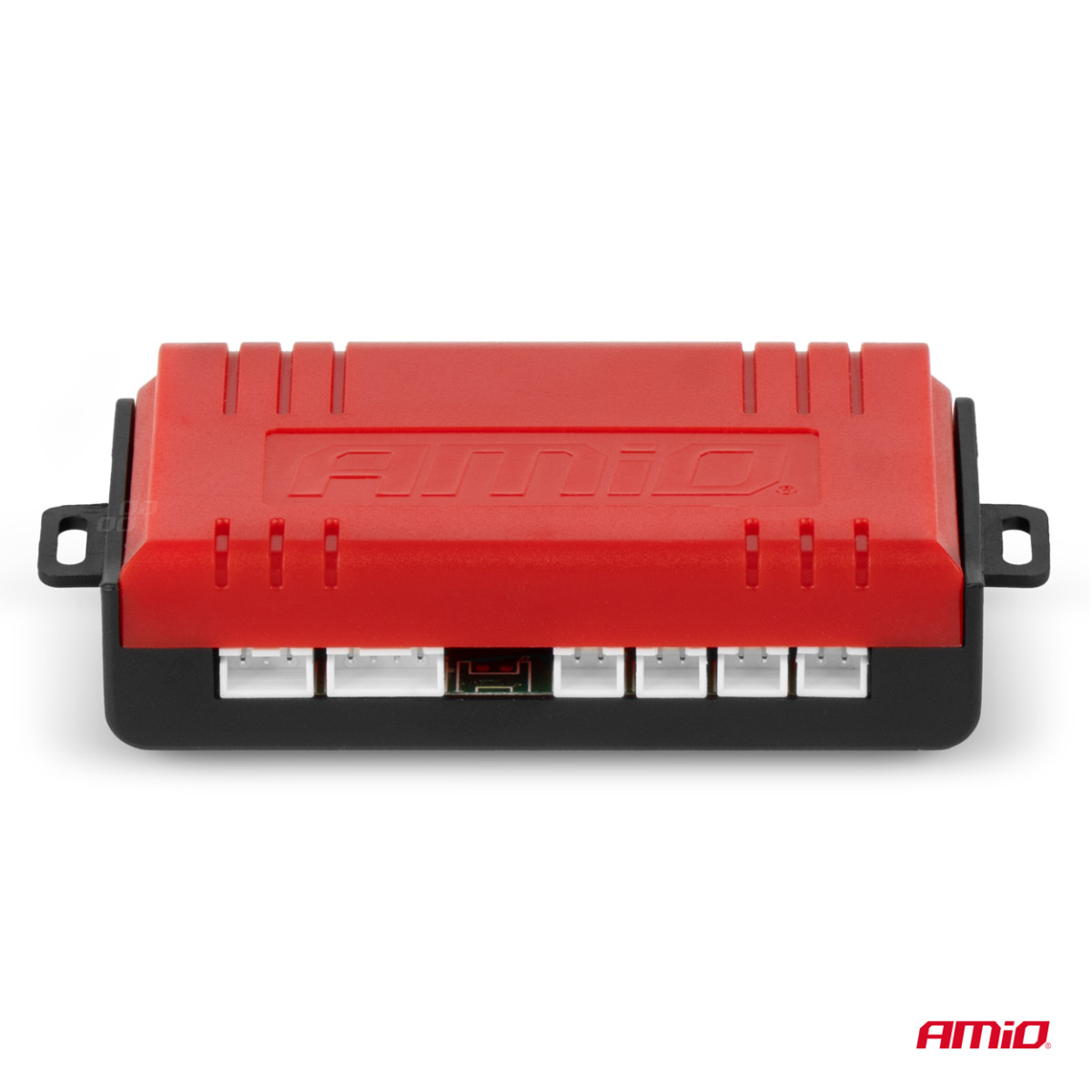

• 4-sensor control unit
• Drill set for holes in the bumper
• Installation instructions

Technical specification:

• Detection range: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 16.5 mm
