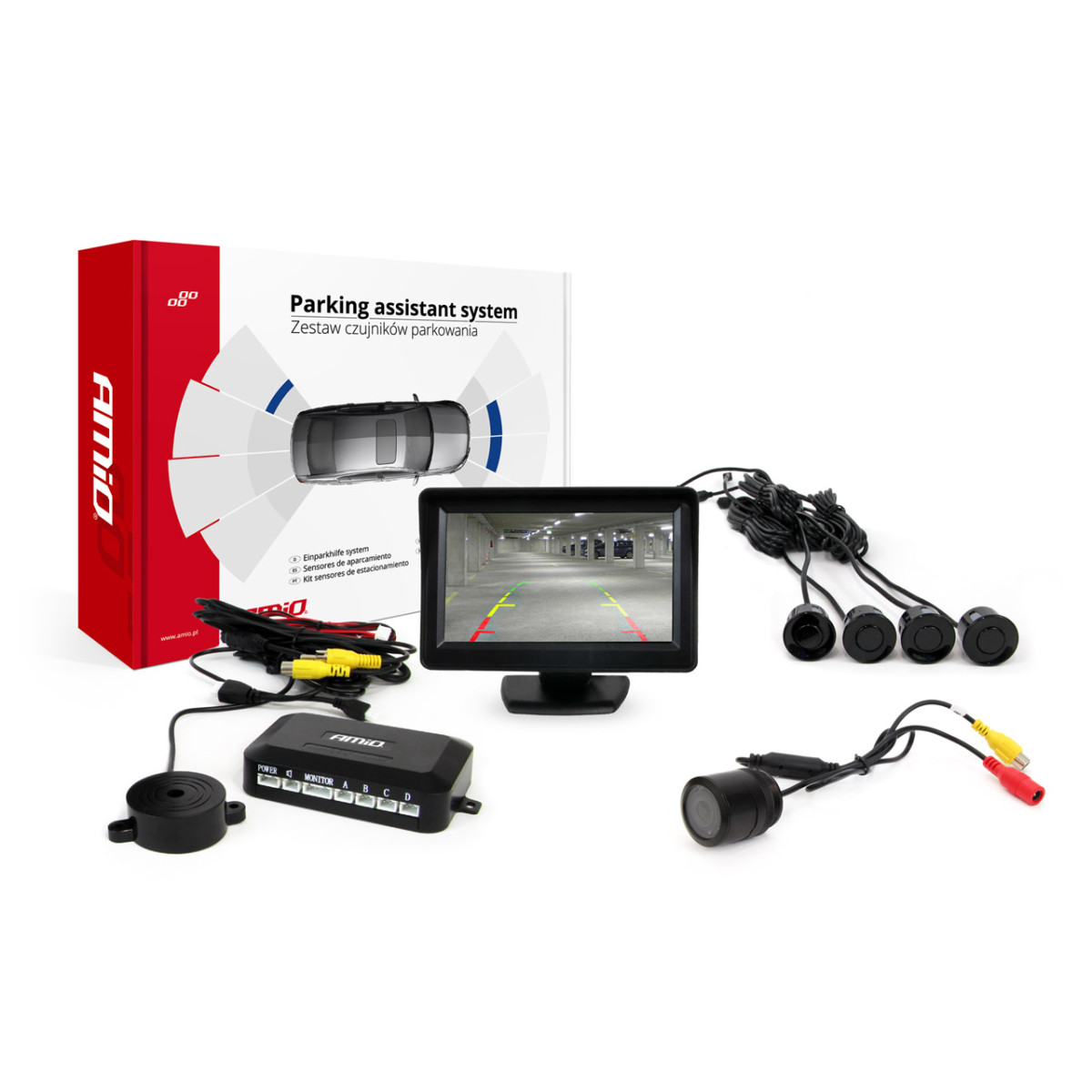

Parking assistance system TFT01 4.3" with HD-301-IR camera, 4 black sensors

Parking assistant system – complete set: sensors + camera with screen

Kit contents:

• Screen
• Sensors
• Camera
• Controller
• Complete wiring kit

The camera and sensors turn on automatically when reverse gear is engaged.

The parking sensor is an indispensable assistant both when driving and parking. The rear sensors make parking easier even for large cars, and the rear camera input allows you to precisely monitor the area behind the vehicle.

The sensor has a built-in image mixer, so it can display both the image from the connected rear camera and a digital distance indicator.

The device is especially useful in busy parking lots, on rainy or snowy days, and in limited visibility, such as at night. By accurately determining the distance and direction to an obstacle, you can avoid unnecessary costs and inconvenience due to even the slightest scratches on the bumper.

Kit contents:

• 4-sensor central control unit with LCD display
• 4 black parking sensors
• very powerful speaker
• rear view camera CAM-301 IR 28 mm
• 4.3 inch TFT screen
• drill for drilling holes in the bumper

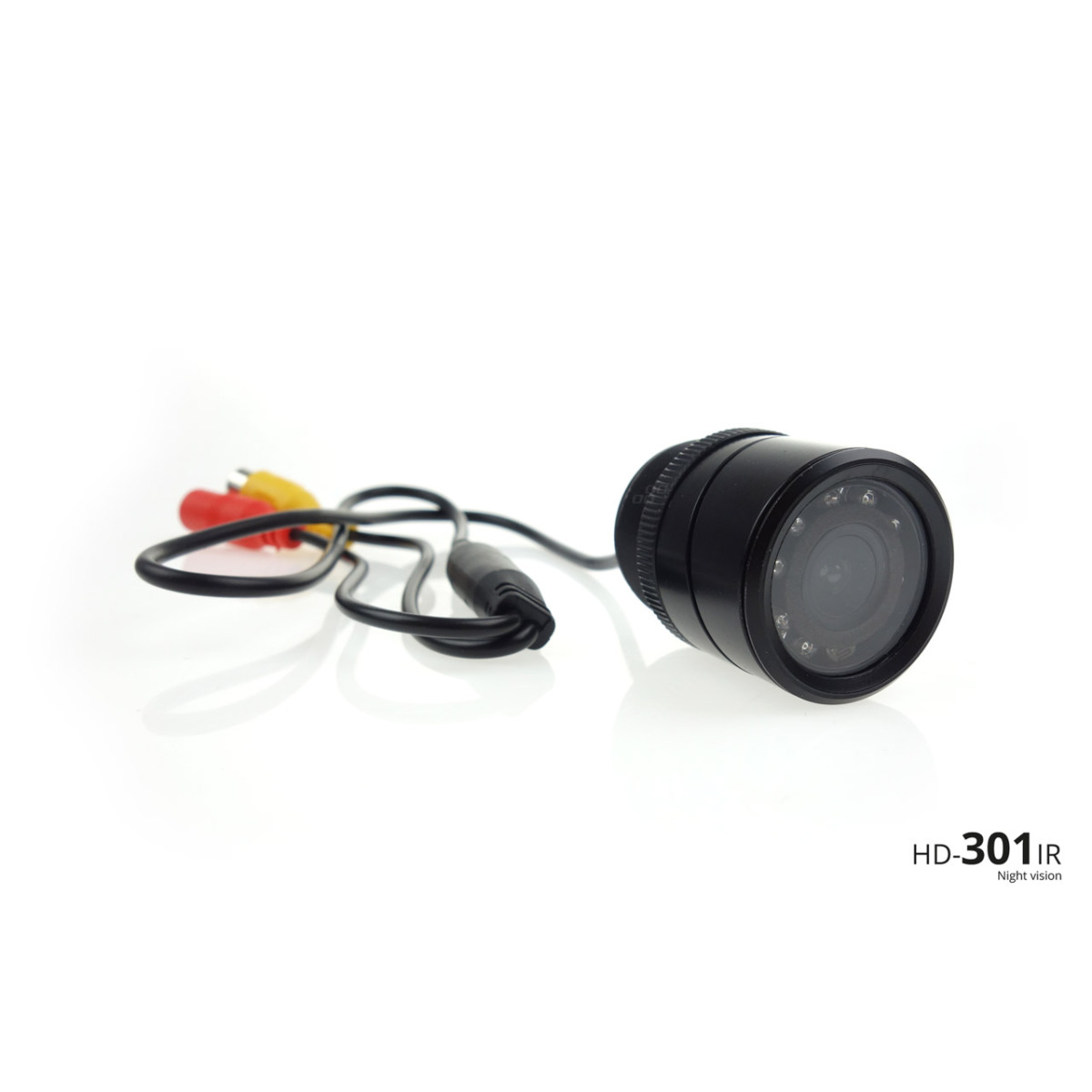

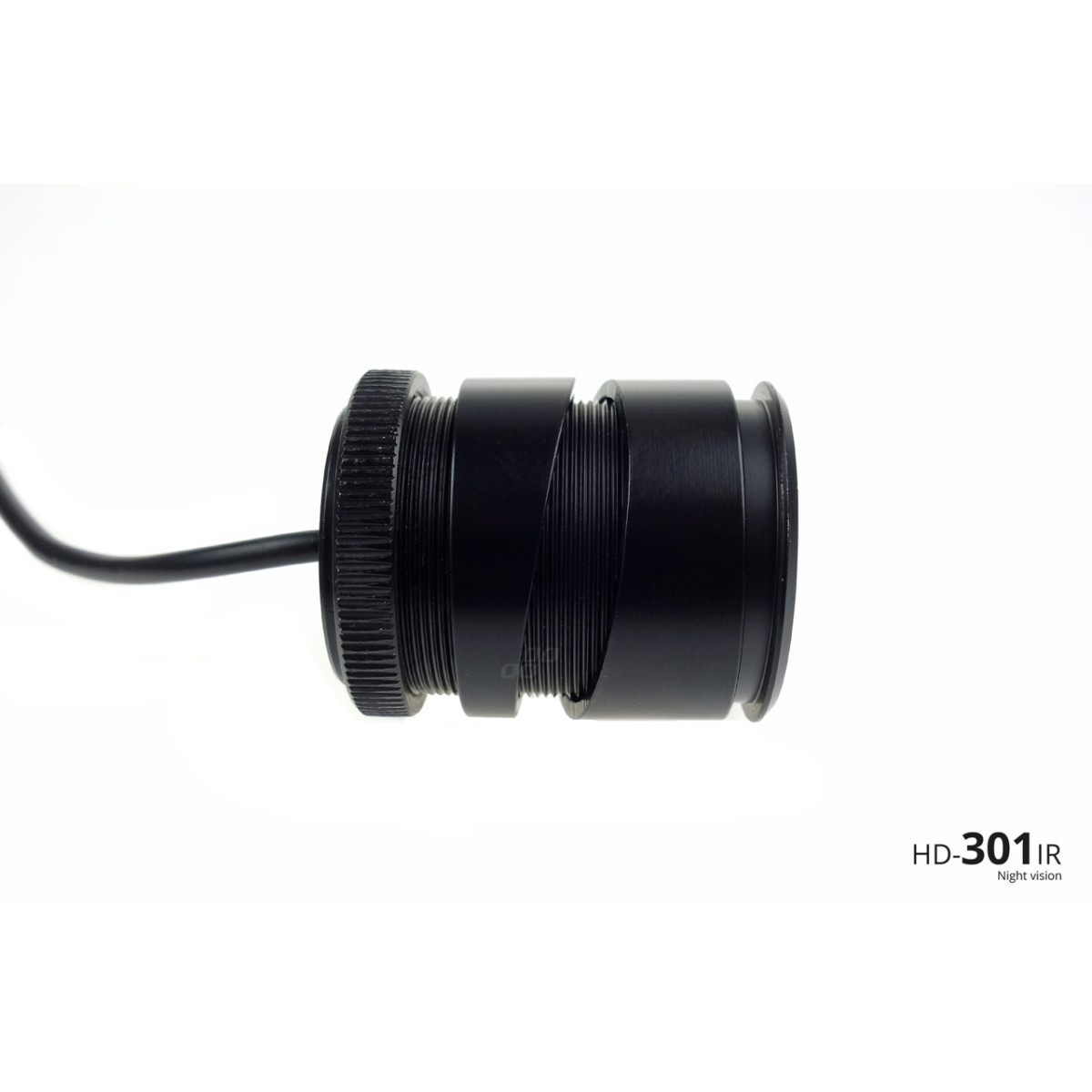

Rear view camera CAM-301 IR 28 mm is a modern camera with the "Night Vision" function. Additional IR diodes ensure good image illumination in poor visibility conditions. The 4.3-inch high-resolution TFT screen clearly displays the space directly behind the car.

Parking sensors are an auxiliary system for parking and reversing. It works on the sonar principle - it emits ultrasonic waves, which, when reflected from obstacles, allow you to determine the distance to the object. When reversing, the system accurately recognizes obstacles and warns the driver with an audible signal (the intensity depends on the distance to the obstacle) or visually on the screen.

Technical specification:

• Resolution: 480 x 234
• Camera: CAM-301 IR 28 mm, modern camera with Night Vision function, additional IR diodes provide illumination
• Alarm: audible
• Operating distance/sensitivity: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: from -30 °C to +70 °C
• Mounting diameter: 28 mm
