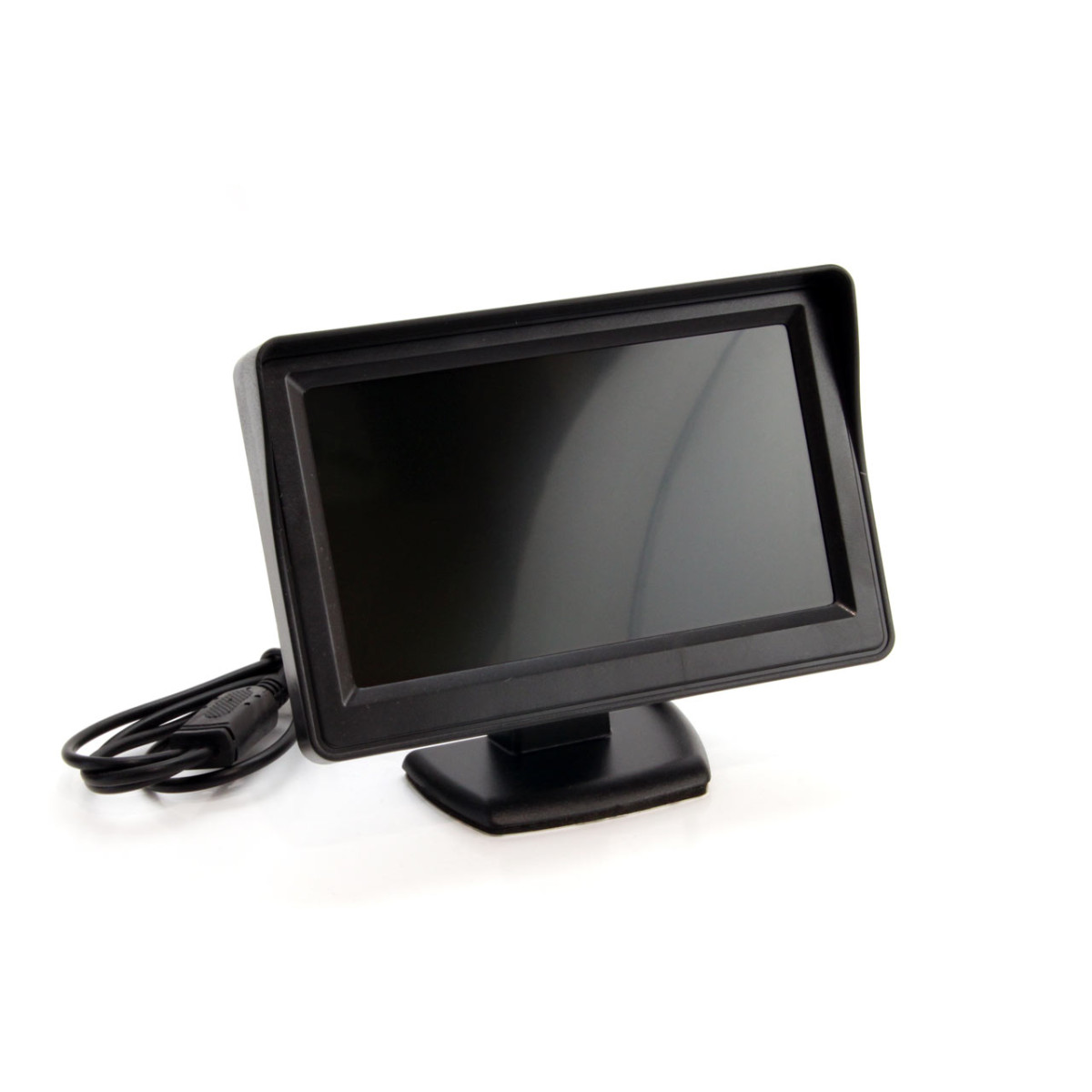

Parking assistance system TFT01 4.3" with HD-305 LED camera, 4 white sensors 28 mm

Package:

• 4-sensor central control panel with LCD display
• 4 white sensors
• Powerful speaker
• Reversing camera CAM-305 IR 28 mm
• TFT 4.3 inch high-definition screen
• Drill for drilling holes in the bumper

Reversing camera CAM-305 IR 28 mm – a modern camera with the “Night vision” function, additional IR diodes ensure better lighting. The TFT 4.3-inch high-resolution screen perfectly displays the image directly behind the car. The parking sensor helps to safely park and maneuver in reverse. The system works on the sonar principle – it sends ultrasonic waves, which, when reflected from obstacles, allow you to determine the distance to them. During reversing, the device accurately detects obstacles and warns the driver with an audible signal (depending on the distance to the obstacle) or via an LED display.

Technical specification:

• Screen resolution: 480 x 234
• Camera: CAM-305 IR 28 mm – modern camera with Night vision function, additional IR diodes provide illumination
• Alarm: audible
• Working range: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: -30°C – +70°C
• Mounting diameter: 28 mm
