Parking assistance system TFT01 4.3" with HD 315 LED camera, 4 white sensors 22 mm

Parking assistant system – complete set: sensors + camera with screen

Kit contents:

• Screen
• Sensors
• Camera
• Controller
• Complete wiring kit

The camera and sensors turn on automatically when reverse gear is engaged.

The parking sensor is an indispensable assistant both when driving and parking. The rear sensors make parking easier even for large cars, and the rear camera input allows you to precisely monitor the area behind the vehicle.

The sensor has a built-in image mixer, so it can display both the image from the connected rear camera and a digital distance indicator.

The device is especially useful in busy parking lots, on rainy or snowy days, and in limited visibility, such as at night. By accurately determining the distance and direction to an obstacle, you can avoid unnecessary costs and inconvenience due to even the slightest scratches on the bumper.

The set includes:

• 4-sensor central LCD control system

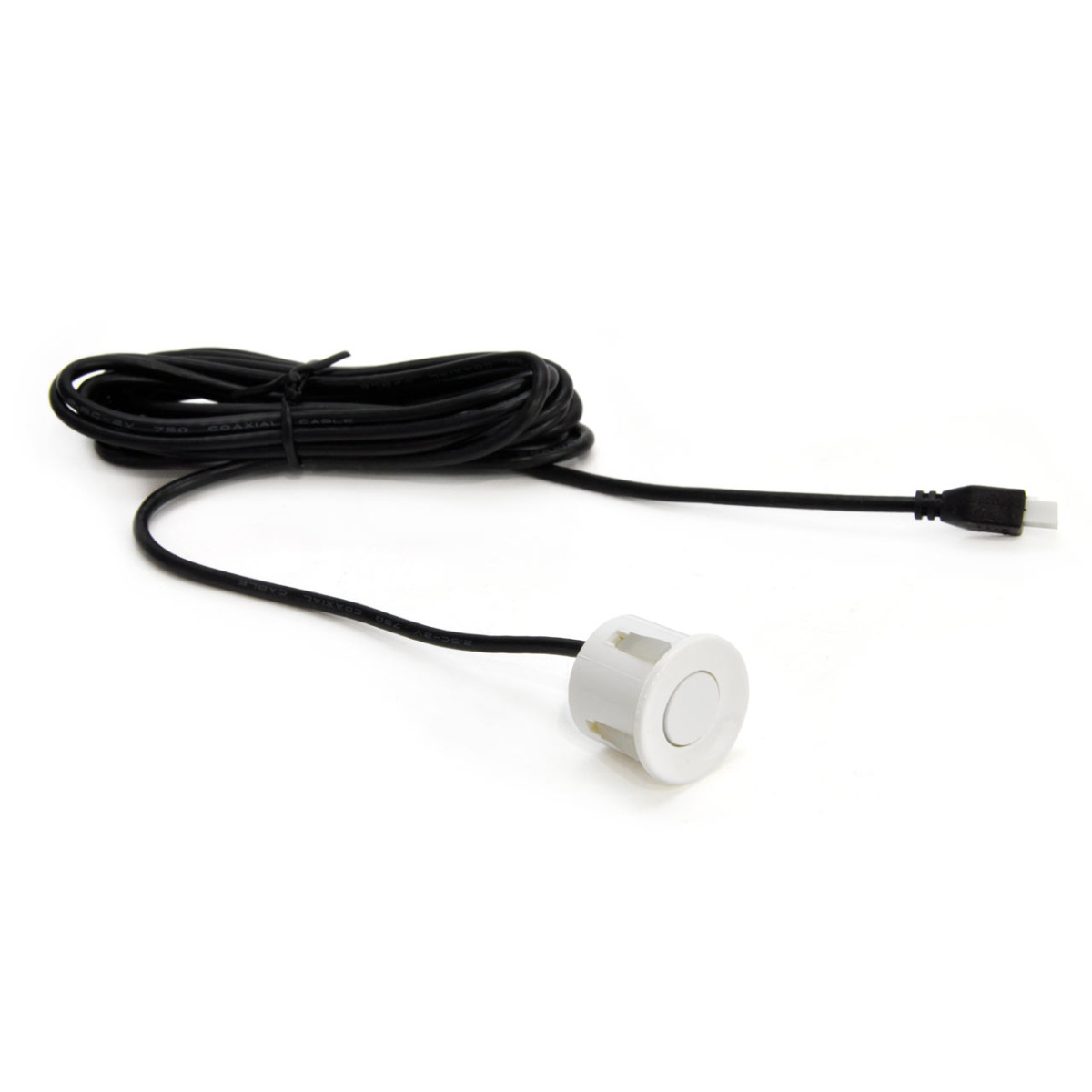

• 4 white sensor heads
• very powerful speaker
• reversing camera CAM-315 LED
• 4.3 inch TFT screen
• drill for drilling holes in the bumper

Reversing camera CAM-315 LED – a modern camera with the “Night vision” function – additional LED diodes provide illumination. The 4.3-inch TFT screen in high resolution perfectly shows the space directly behind the vehicle. The parking sensor helps to safely park and reverse. It works on the sonar principle – sends ultrasonic waves, which, when reflected from an obstacle, show the distance to the object. When reversing, the device accurately detects obstacles on the road and warns the driver with sound signals (depending on the distance to the obstacle) or on the LED screen.

Full specification:

• Screen resolution: 480 × 234
• Camera: CAM-315 LED – modern camera with "Night vision" function, additional LEDs provide illumination
• Signal: BI-BI sound signal
• Operating range/sensitivity: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 22 mm
