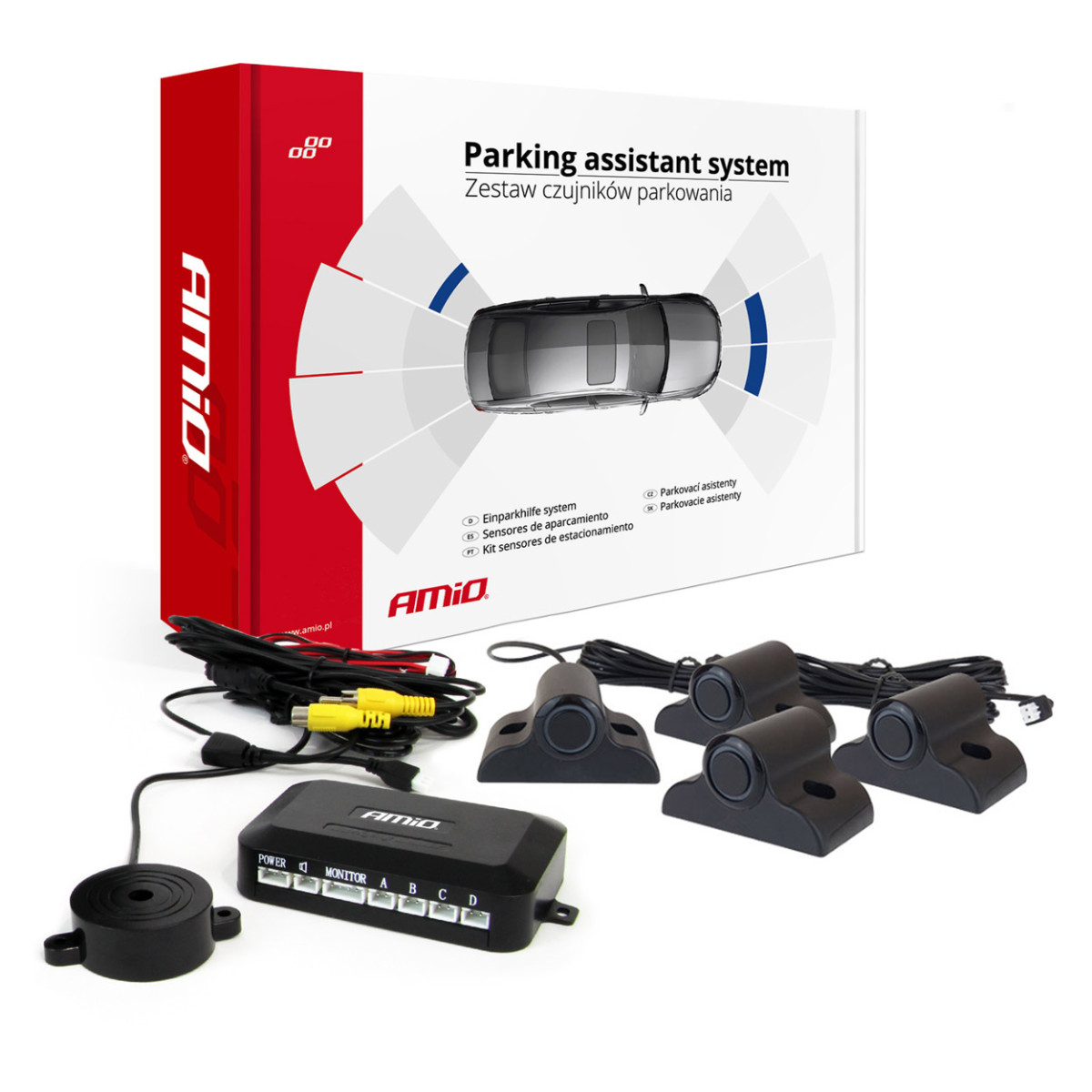

Parking sensor kit for camera and LCD display, for trucks 19 mm, black AMIO-04073

This sensor kit is designed to connect to a camera and is a base to which you can choose one of our LCD screens (P/N: 01020 or P/N: 02484) and one camera from our wide range. There is also the option to connect to a radio with PAL/NTSC system.

Parking assistant is a device that facilitates parking and reversing maneuvers. A universal and reliable device for those who value road safety. The device is simple and functional, turns on automatically. Ultrasonic sensors help avoid collisions with obstacles. During reversing or parking, the device detects obstacles and warns the driver with an audible signal (depending on the distance to the obstacle) and visually on the screen.

Technical characteristics:

• Power supply: 12V DC
• Power consumption: <4W
• Operating frequency: 40 KHz
• Operating temperature: -30°C to +55°C
• Obstacle detection: 0.3-2.5 m
• Measurement error: +/- 5 cm
• Sensor cable length: 2.2 m
• Display cable length: 5 m

Kit contents:

• Central control unit TFT, connected to the screen and camera
• Sensors
• Wires
• Instructions for use
• Sensors can be installed in various ways at the front or rear of the car, thus increasing vehicle safety.

Operation:

• The rear sensors are activated automatically when reverse gear is engaged.
• The front sensors are activated when the brake pedal is pressed. The sensors operate for 15 seconds after the pedal is pressed and released. The system detects obstacles up to 80 cm from the vehicle.
• Obstacle detection is signaled by a distance indication, a graphic display and an audible signal through the built-in speaker.
• The sensors are of high quality with a flat flange, completely waterproof and weatherproof (snow, rain, fog). If necessary, the sensors can be repainted with 1-2 layers at your discretion.
• The product is universal, suitable for most cars. We also have extension cables for minibuses, if the included cables are too short.
