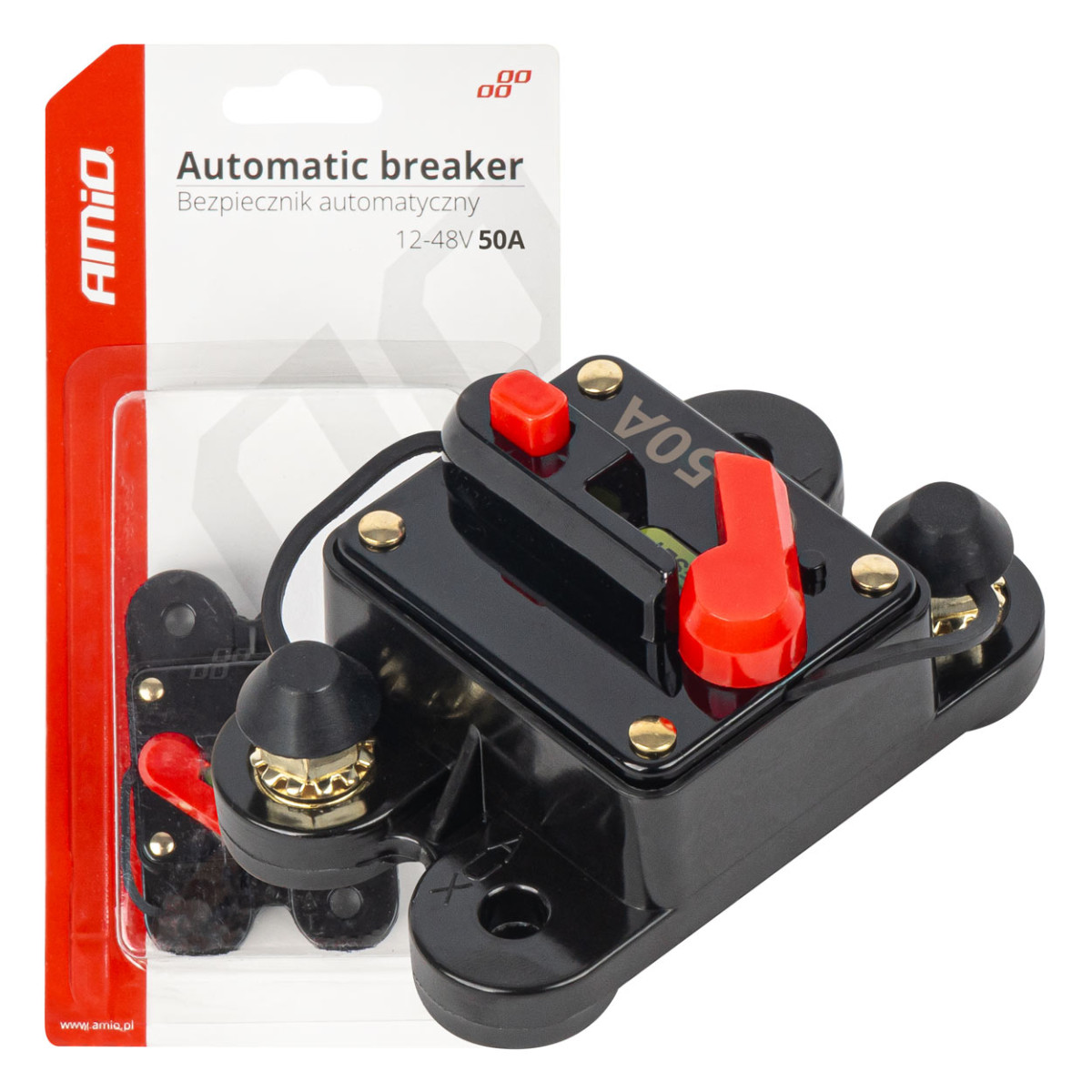

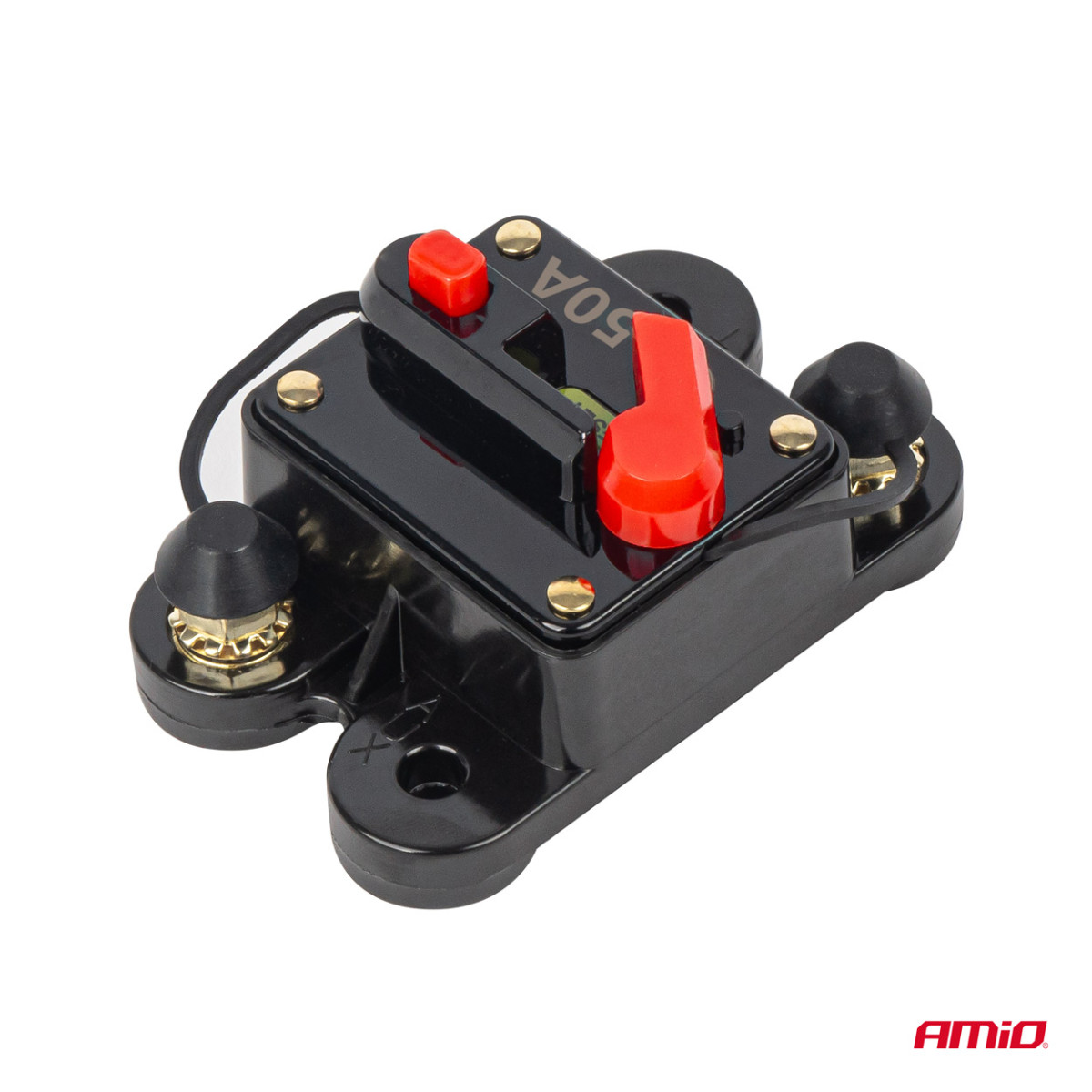

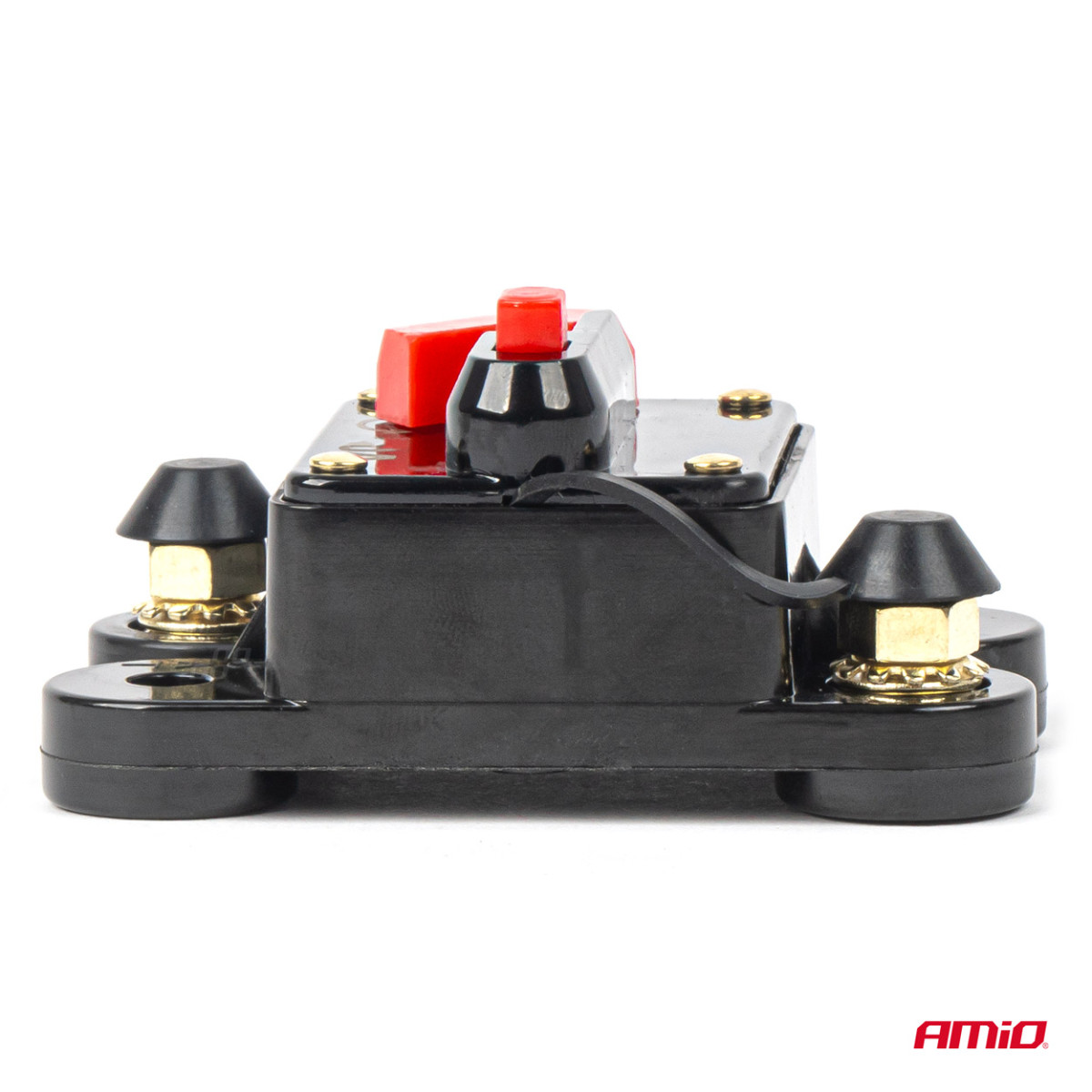

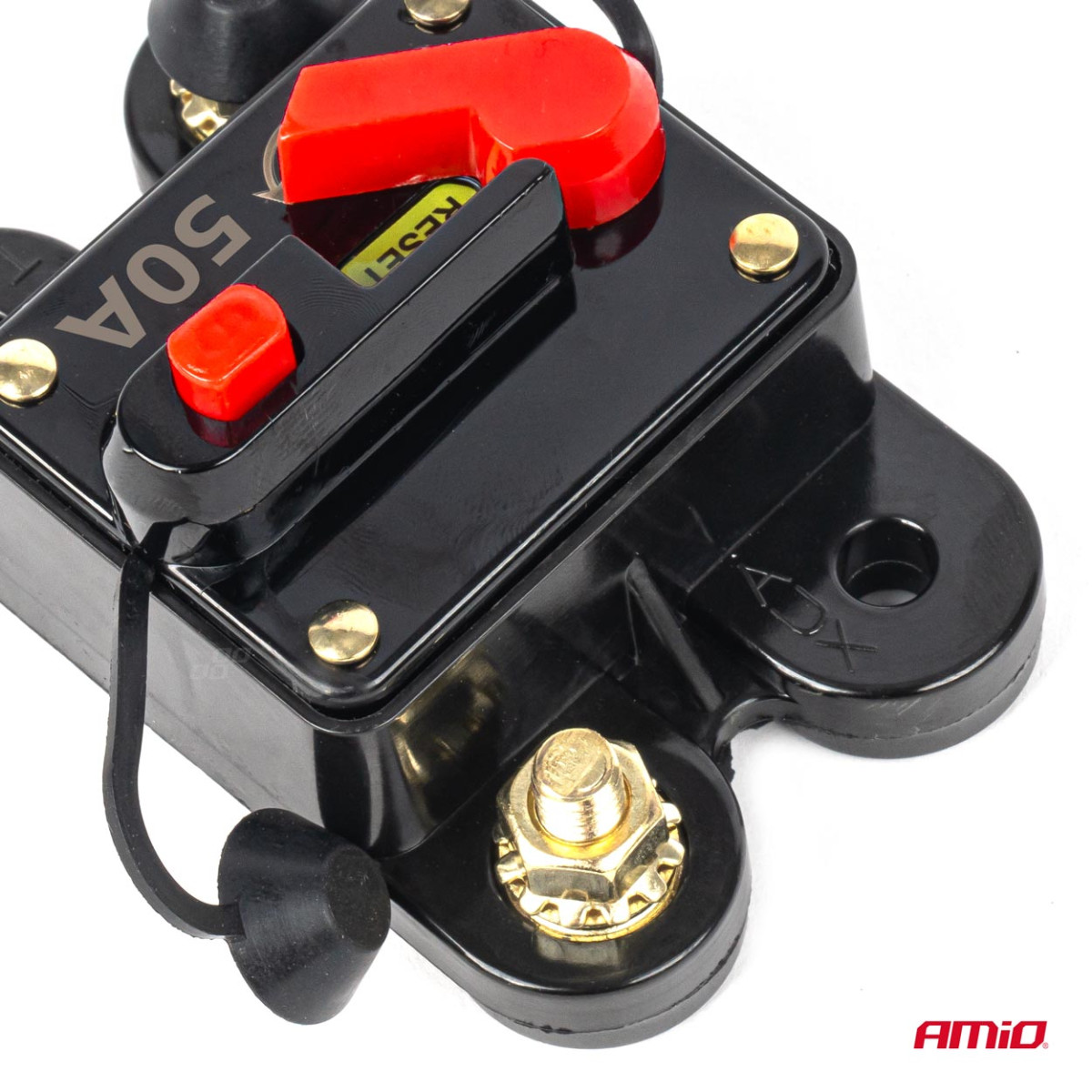

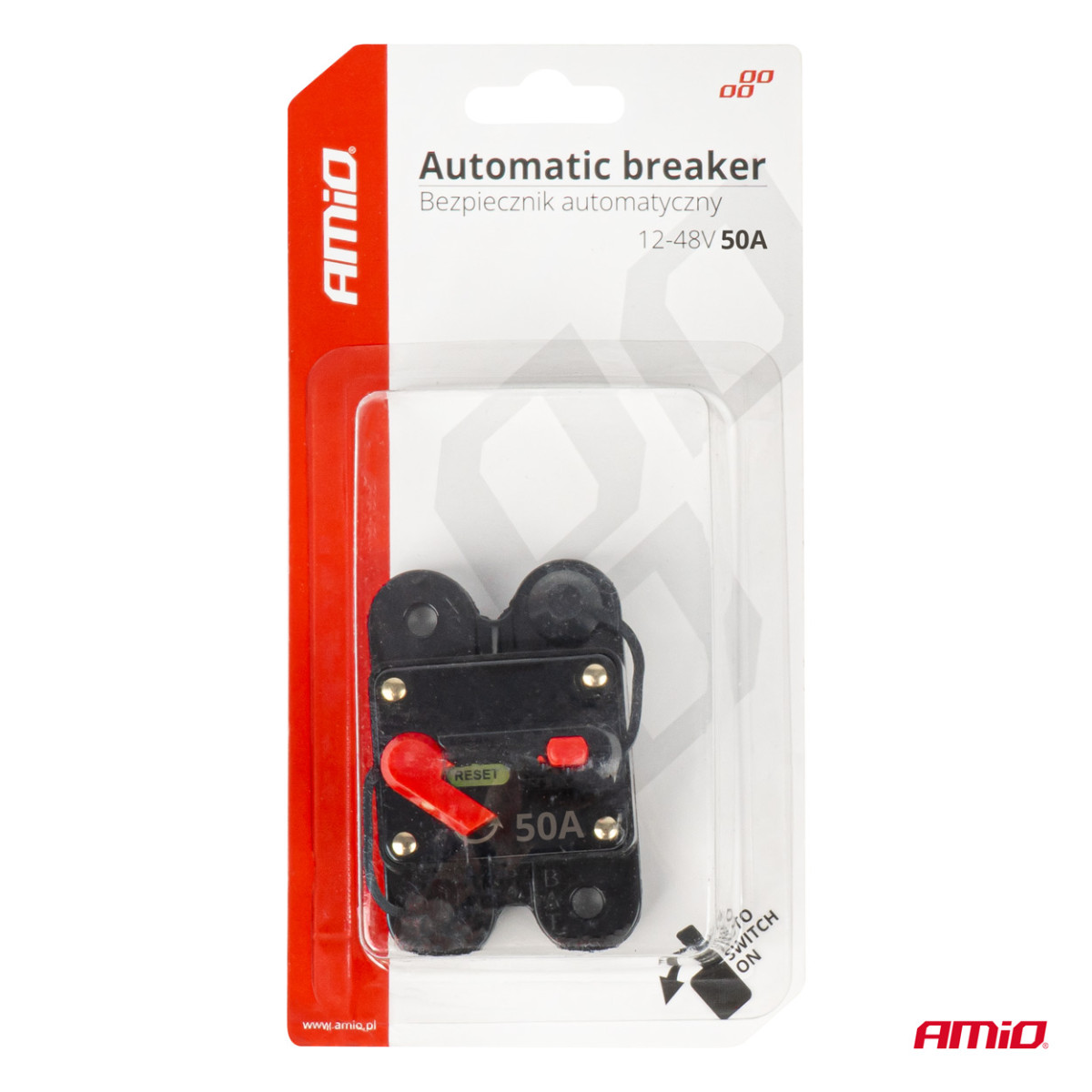

Automatic circuit breaker 50 A, 12-48 V, AMIO-03825

We present a high-quality automatic circuit breaker designed to protect the vehicle's electrical system from overloads and short circuits. This automatic circuit breaker is compatible with 12 V, 24 V and 48 V systems and can handle currents up to 50 A, making it an important part of a safe and reliable electrical installation.

Main features:

• Universal compatibility with 12 V, 24 V and 48 V systems;
• Suitable for cars, trucks and other vehicles;
• Maximum current: 50 A;
• Effective protection against overloads and short circuits;
• Automatic reset function, so there is no need to replace the fuse after it has blown;
• Sturdy construction made of durable and resistant materials;
• Reliable operation even under difficult operating conditions.

Areas of use:

• Protection of vehicle electrical systems;
• Protection of electrical installations of cars, trucks, campers and other vehicles against damage due to overloads or short circuits;
• Protection of additional car equipment, such as audio amplifiers, tourist refrigerators, air compressors and other electrical appliances;
• Protection of solar power plants and other power systems against overloads and overcurrents.

Dimensions:

• Case dimensions: 80 × 52 × 44 mm (length × width × height);
• Connection terminals: M6 screws;
• Contact diameter: 12 mm;
• Mounting holes: for M6 screws;
• Distance between mounting holes: 66 mm.

Additional information:

• Easy installation due to compact design;
• Easily integrated into various electrical systems;
• Overheating and overload protection;
• Helps ensure the safety of the vehicle and its equipment.

The 50 A automatic circuit breaker for 12 V, 24 V and 48 V systems is a reliable solution for protecting a vehicle and its electrical systems. High quality, ease of use and universal application allow this product to be used in various electrical installations where reliable protection against overloads and short circuits is required.
