Parking assistance system TFT01 4.3" with HD-305 LED camera, 4 black sensors 28 mm

Parking assistant system – complete set: sensors + camera with screen

Kit contents:

• Screen
• Sensors
• Camera
• Controller
• Complete wiring kit

The camera and sensors turn on automatically when reverse gear is engaged.

The parking sensor is an indispensable assistant both when driving and parking. The rear sensors make parking easier even for large cars, and the rear camera input allows you to precisely monitor the area behind the vehicle.

The sensor has a built-in image mixer, so it can display both the image from the connected rear camera and a digital distance indicator.

The device is especially useful in busy parking lots, on rainy or snowy days, and in limited visibility, such as at night. By accurately determining the distance and direction to an obstacle, you can avoid unnecessary costs and inconvenience due to even the slightest scratches on the bumper.

Package:

• 4-sensor central control panel with LCD display

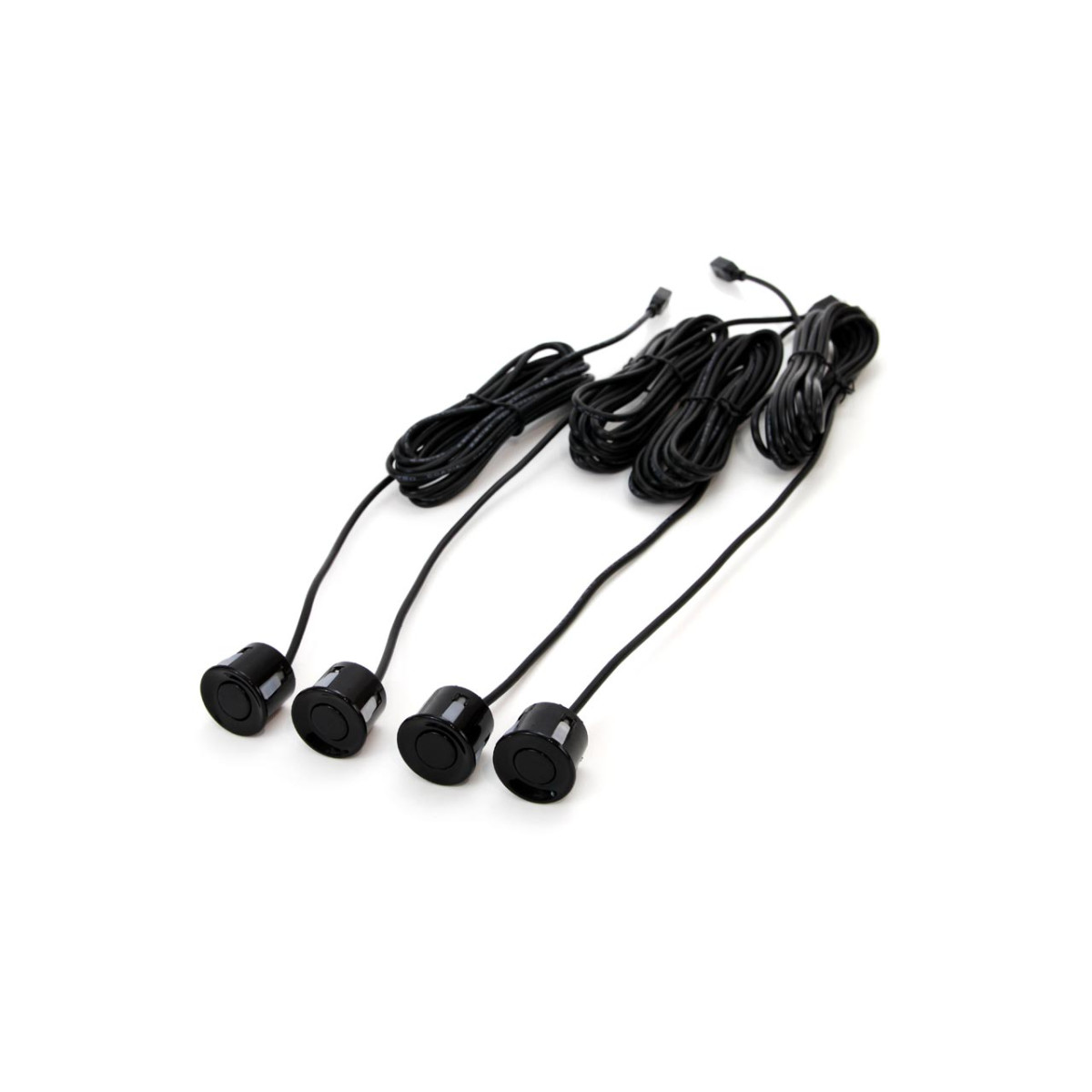

• 4 black sensors
• Powerful speaker
• Rear view camera CAM-305 LED

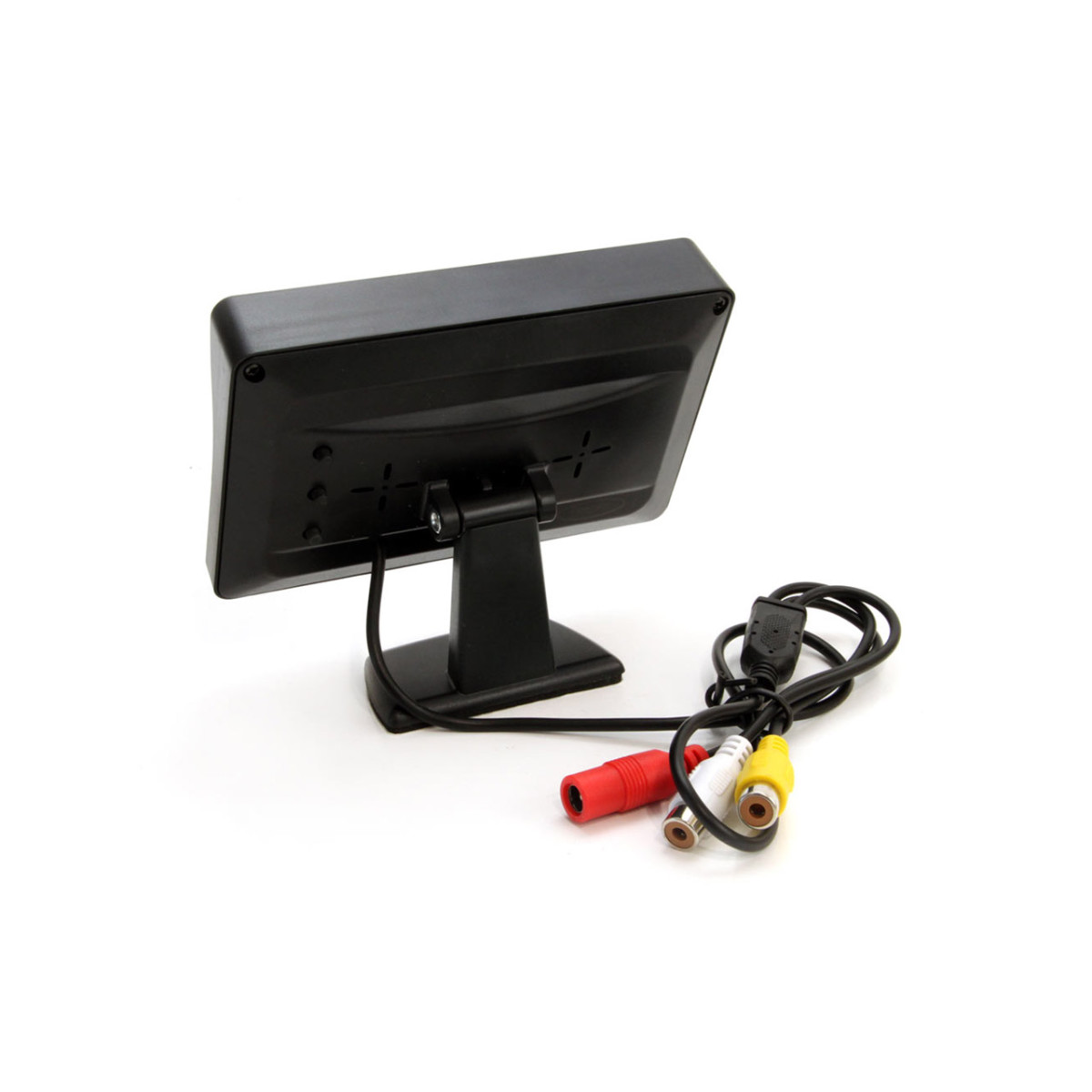

• TFT 4.3 inch high-definition screen

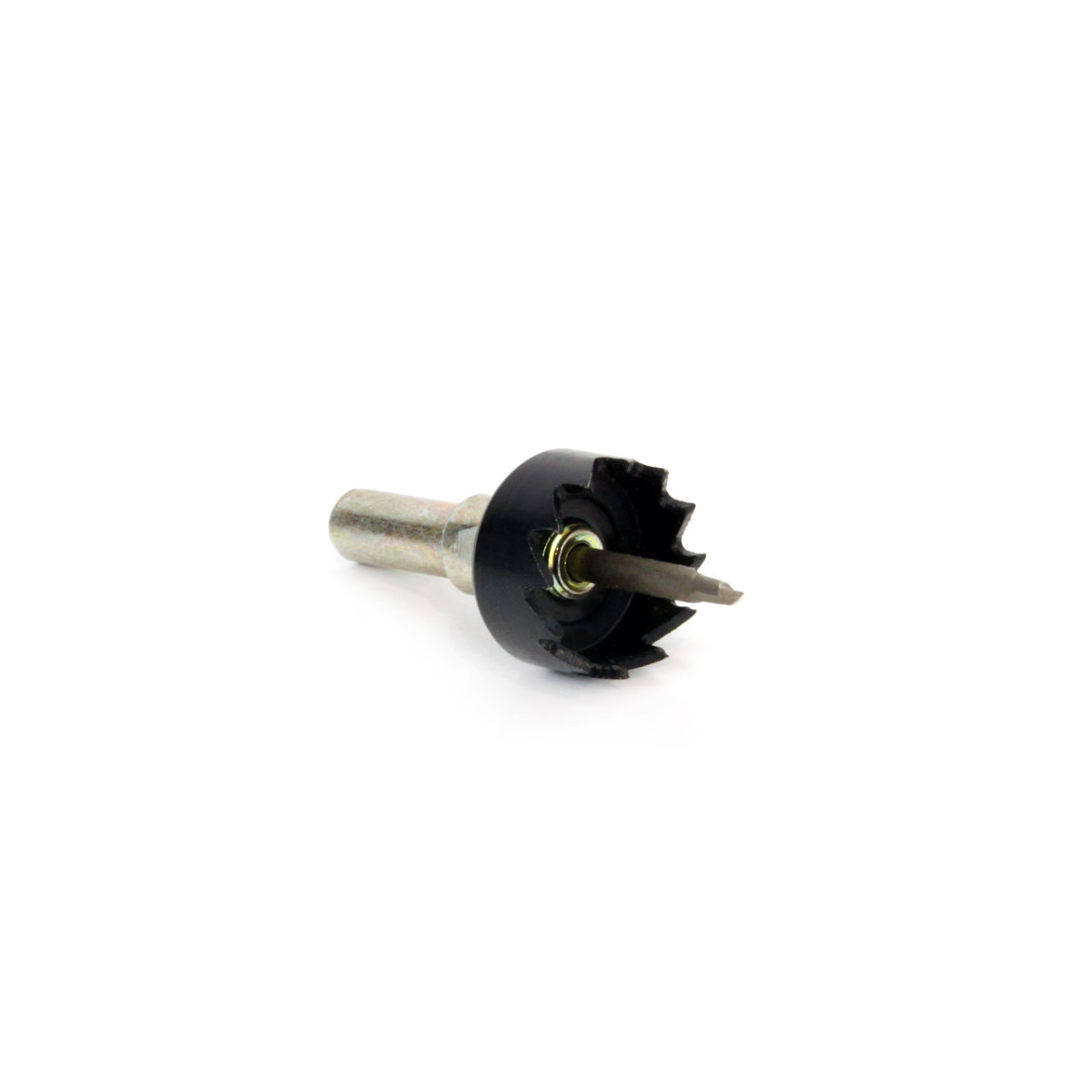

• Drill for drilling holes in the bumper

Reversing camera CAM-305 LED – a modern camera with the “Night vision” function, additional LED diodes ensure better lighting. The TFT 4.3-inch high-resolution screen perfectly displays the image directly behind the car. The parking sensor helps to safely park and maneuver in reverse. The system works on the sonar principle – it sends ultrasonic waves, which, when reflected from obstacles, allow you to determine the distance to them. During reversing, the device accurately detects obstacles and warns the driver with an audible signal (depending on the distance to the obstacle) or via an LED display.

Technical specification:

• Screen resolution: 480 x 234
• Camera: CAM-305 LED – modern camera with "Night vision" function, additional LEDs provide illumination
• Alarm: audible
• Working range: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: -30°C – +70°C
• Mounting diameter: 28 mm
