Parking assistance system LED, 4 black sensors, internal mounting 16.5 mm AMIO-02255

Parking sensor – a device that helps a car park and reverse. It works on the sonar principle: it sends ultrasonic signals, which, when reflected from an obstacle, allow you to determine the distance to the object. During reversing, the sensor accurately detects obstacles in the road area and warns the driver with sound signals.

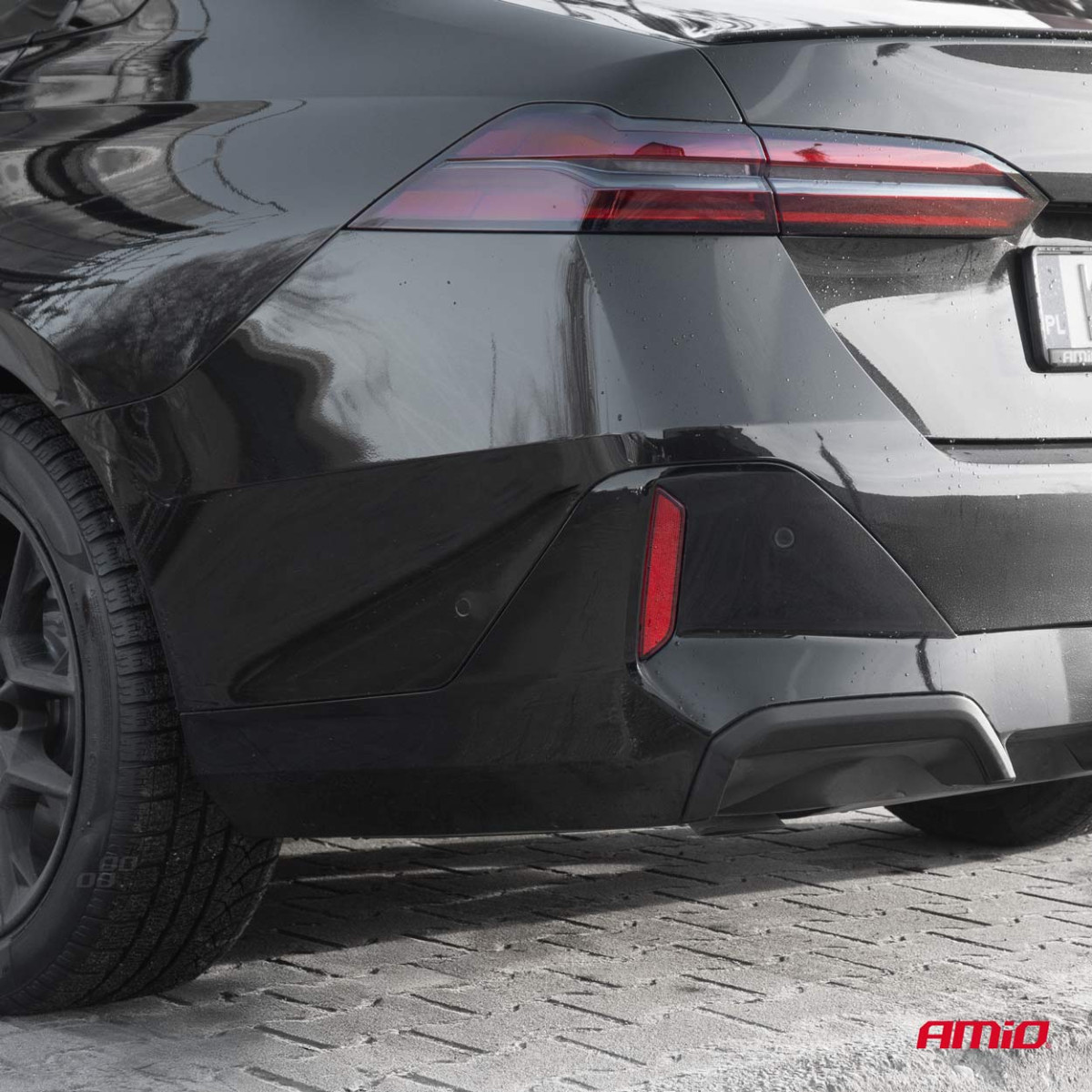

The new sensors are mounted on the inside of the bumper and do not protrude beyond it. The small size provides an attractive appearance. The sensors can be painted - it is recommended to apply no more than two thin, even coats.

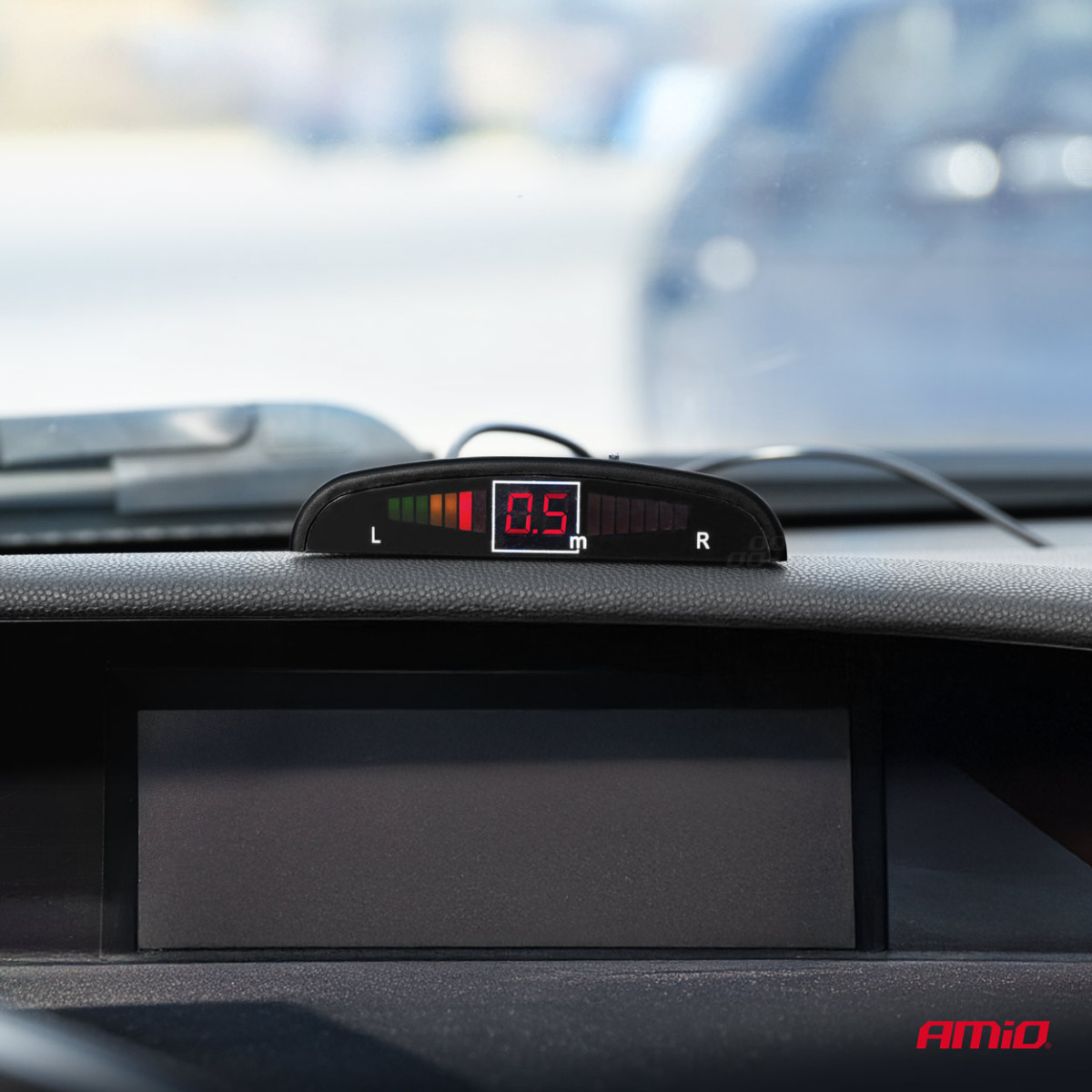

The LED display shows the distance to the obstacle with an accuracy of tenths of a meter. The built-in speaker (buzzer) warns of the obstacle, and the sound can be completely turned off with a switch on the housing.

• Screen size: 10 x 2 x 3 cm
• Cable length: ~5 m

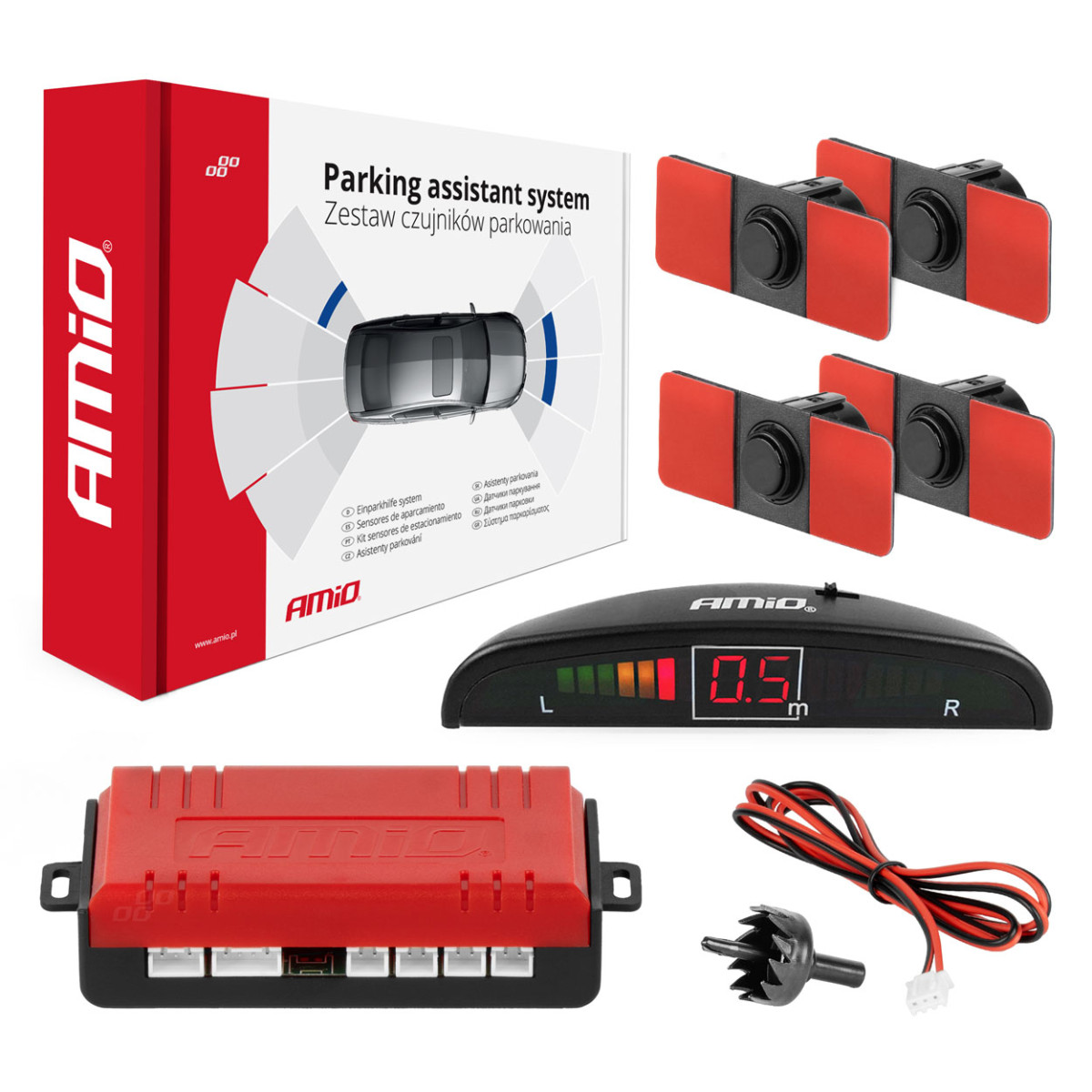

Included:

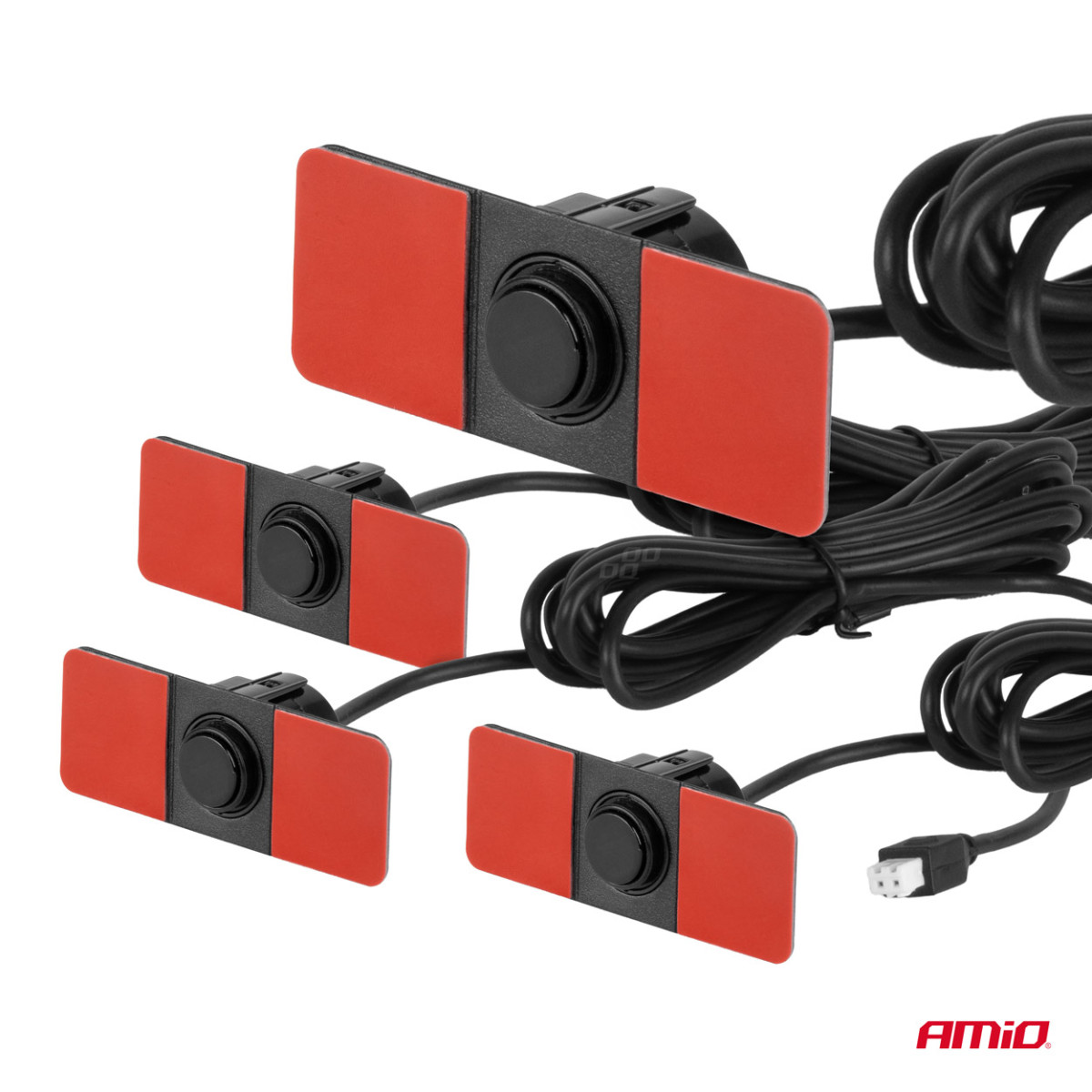

• 4 black internal sensors, 16.5 mm
• LED display with integrated sound signal

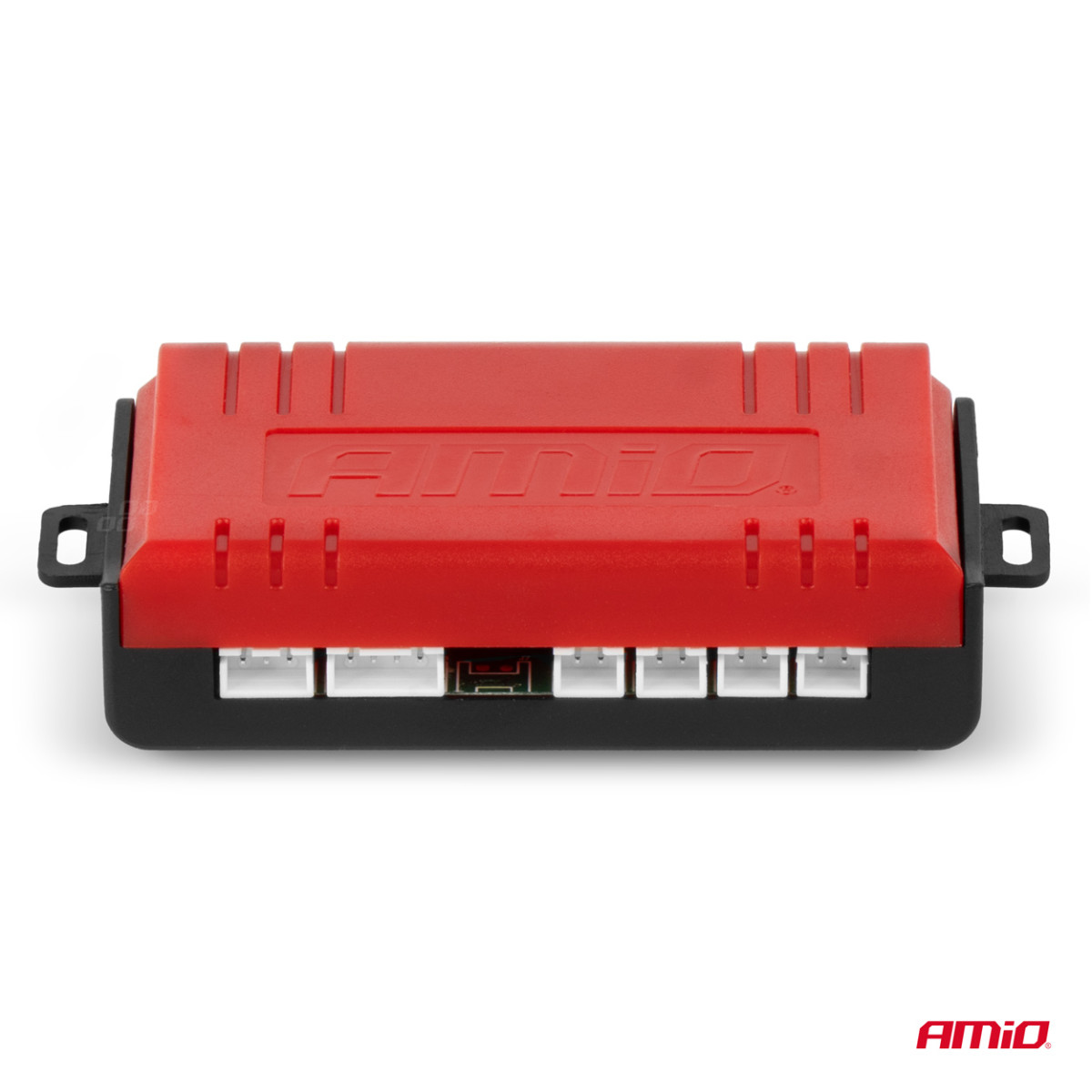

• 4-sensor control panel
• Drill bit for drilling holes in the bumper
• Installation instructions

Specification:

• Working distance/sensitivity: 0-2.5 m
• Voltage: 12V
• Operating frequency range: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 16.5 mm
