Parking assistance system TFT01 4.3" with HD-307-IR camera, 4 silver sensors 22 mm

Parking assistant system – complete set: sensors + camera with screen

Kit contents:

• Screen
• Sensors
• Camera
• Controller
• Complete wiring kit

The camera and sensors turn on automatically when reverse gear is engaged.

The parking sensor is an indispensable assistant both when driving and parking. The rear sensors make parking easier even for large cars, and the rear camera input allows you to precisely monitor the area behind the vehicle.

The sensor has a built-in image mixer, so it can display both the image from the connected rear camera and a digital distance indicator.

The device is especially useful in busy parking lots, on rainy or snowy days, and in limited visibility, such as at night. By accurately determining the distance and direction to an obstacle, you can avoid unnecessary costs and inconvenience due to even the slightest scratches on the bumper.

Package:

• 4-sensor central control panel with LCD display

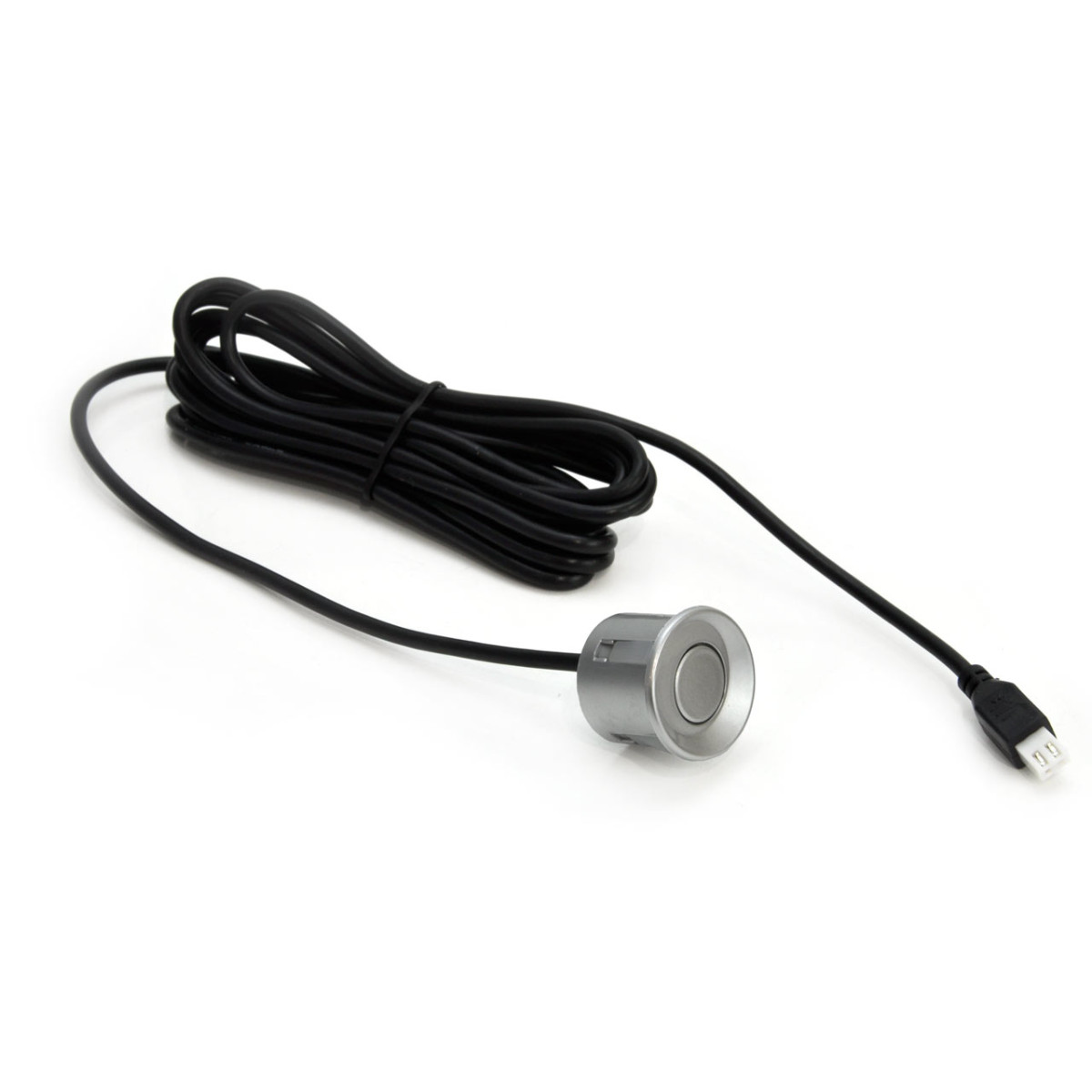

• 4 silver-colored sensors
• Powerful speaker
• Reversing camera CAM-307 IR 18 mm, designed for installation in the bumper as an additional sensor
• TFT 4.3 inch high-definition screen
• Drill for drilling holes in the bumper

The screen perfectly displays the view directly behind the car. The parking sensor helps you park and reverse safely. It works on the sonar principle - it sends ultrasonic waves, which, when reflected from obstacles, allow you to determine the distance to them. During reversing, the system accurately detects obstacles and warns the driver with an audible signal (depending on the distance to the obstacle) or via an LED display.

Technical specification:

• Screen resolution: 480 x 234
• Camera: CAM-307 IR 18 mm, discreet camera, mounted as an additional sensor in the bumper
• Alarm: audible "BI-BI" signals
• Working range: 0-2.5 m
• Power supply: 12V
• Operating frequency: 40 kHz
• Operating temperature: -30°C – +70°C
• Mounting diameter: 22 mm
