Parking assistance system with sound signal, 8 black sensors, internal mounting 16.5 mm AMIO-02254

Parking sensor – a device that helps a car park and reverse. It works on the sonar principle: it sends ultrasonic signals, which, when reflected from an obstacle, allow you to determine the distance to the object. During reversing, the sensor accurately detects obstacles in the road area and warns the driver with sound signals.

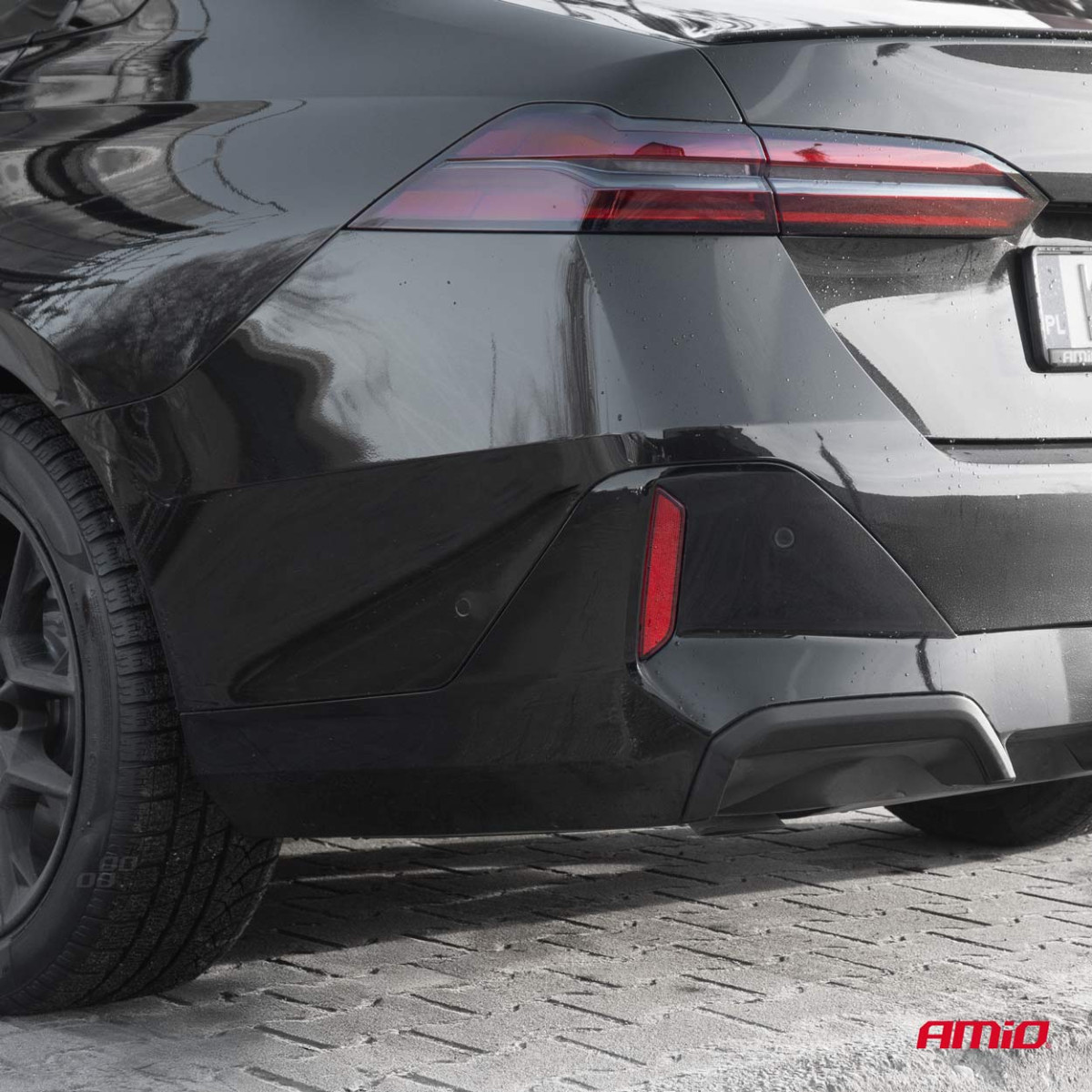

The new sensors are mounted on the inside of the bumper and do not protrude beyond it. The small size provides an attractive appearance. The sensors can be painted - it is recommended to apply no more than two thin, even coats.

The sound signal can operate in 3 sound modes: high, low and completely off. The mode is changed with a switch on the housing.

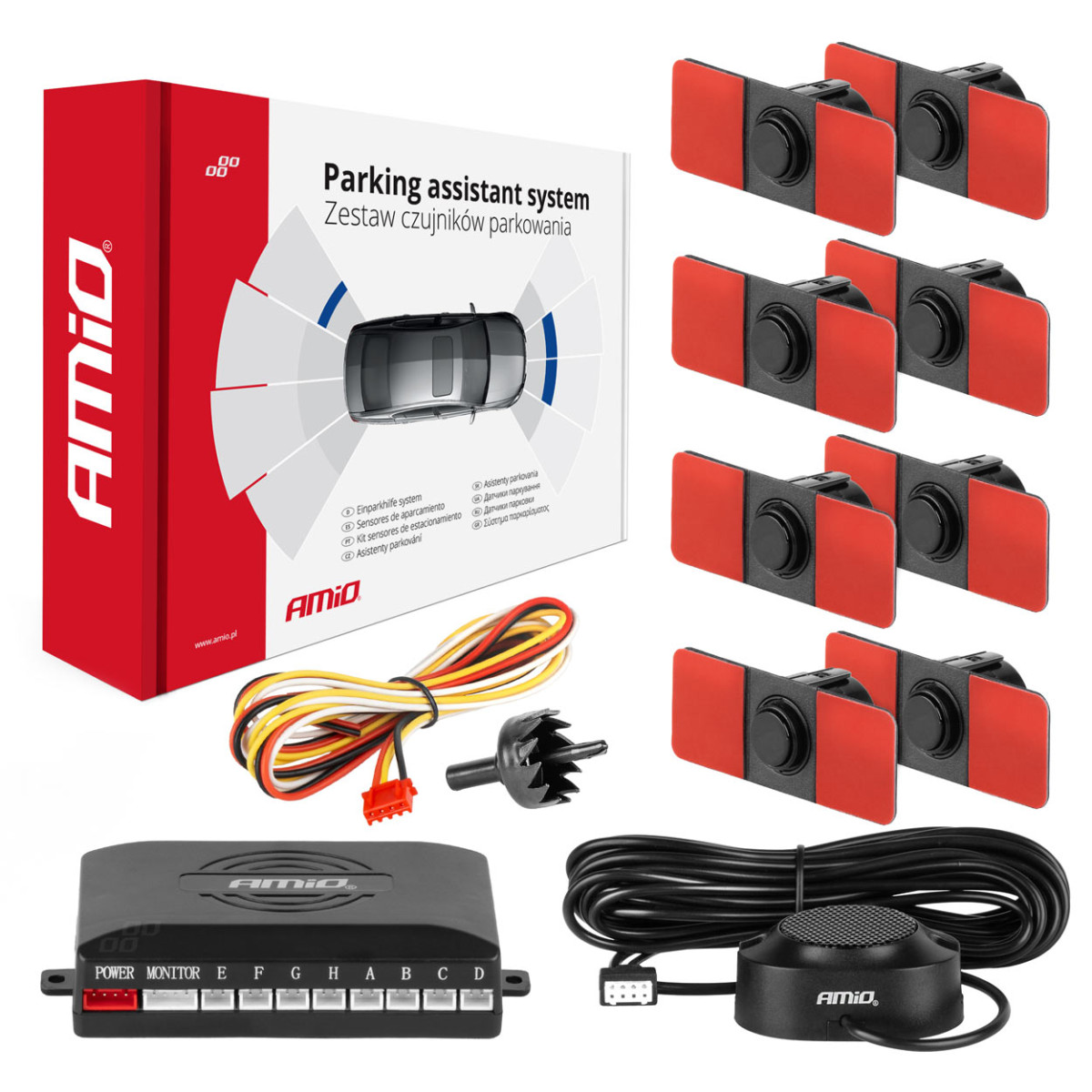

Included:

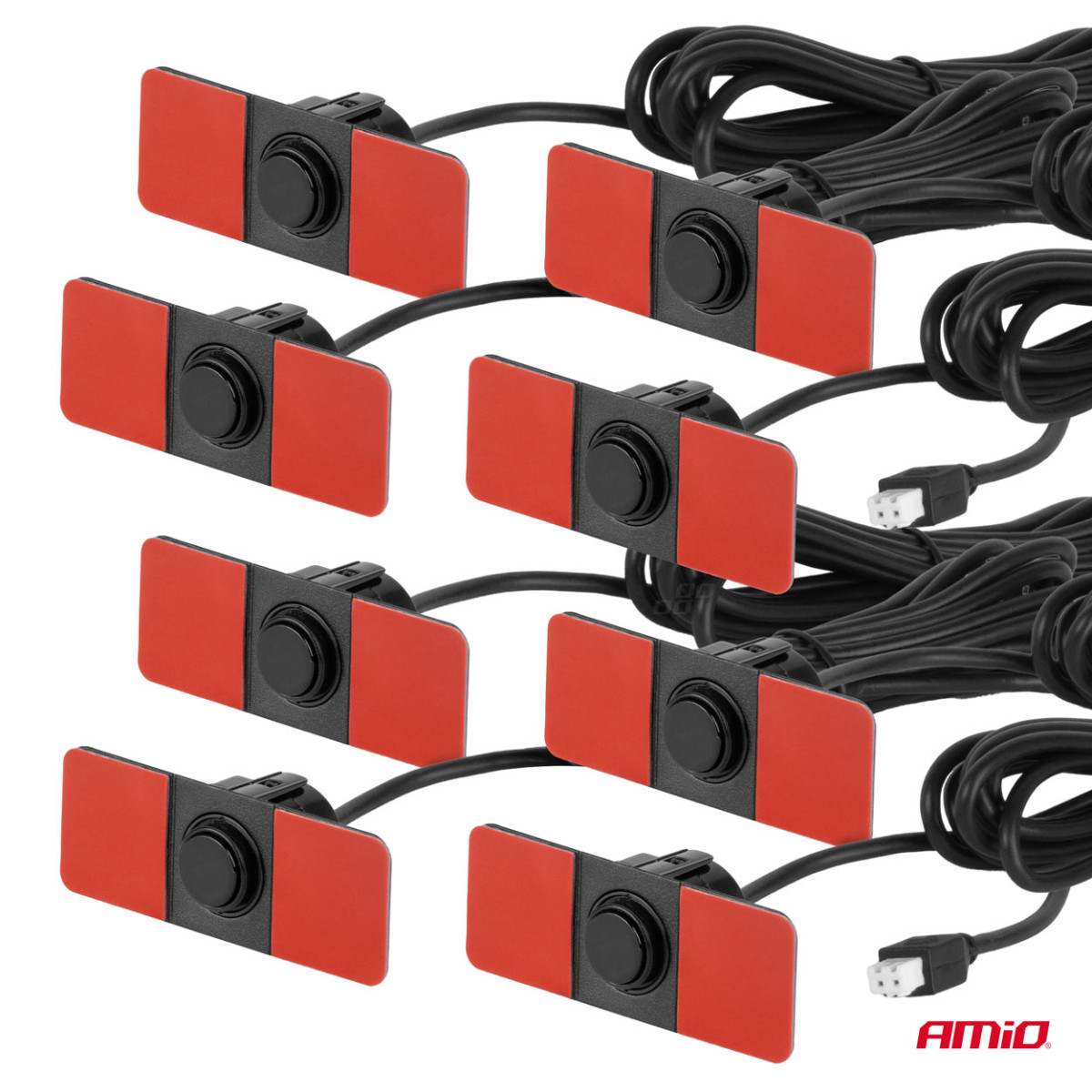

• 8 black internal sensors, 16.5 mm
• 4 extension cords

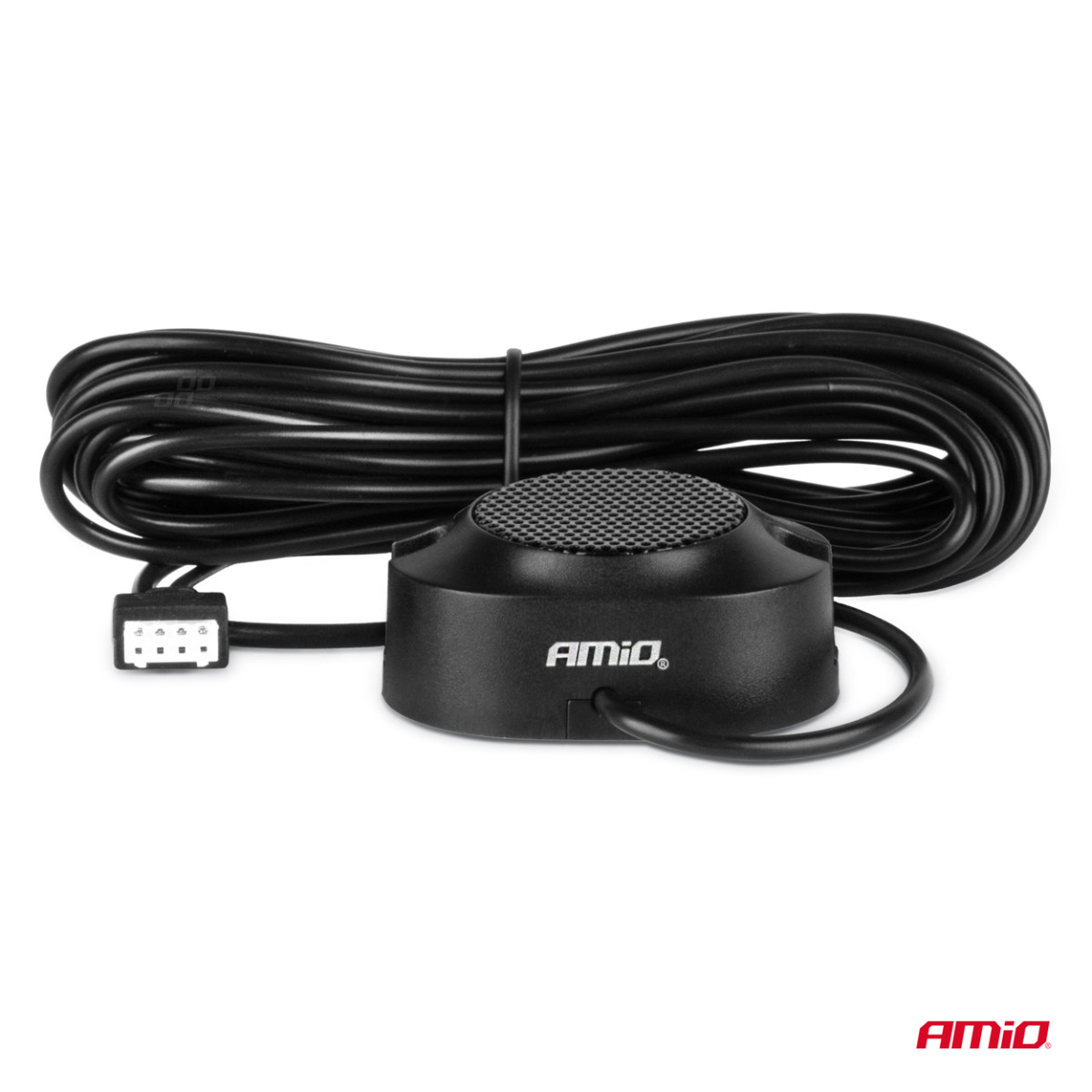

• Buzzer – sound signal transmitter

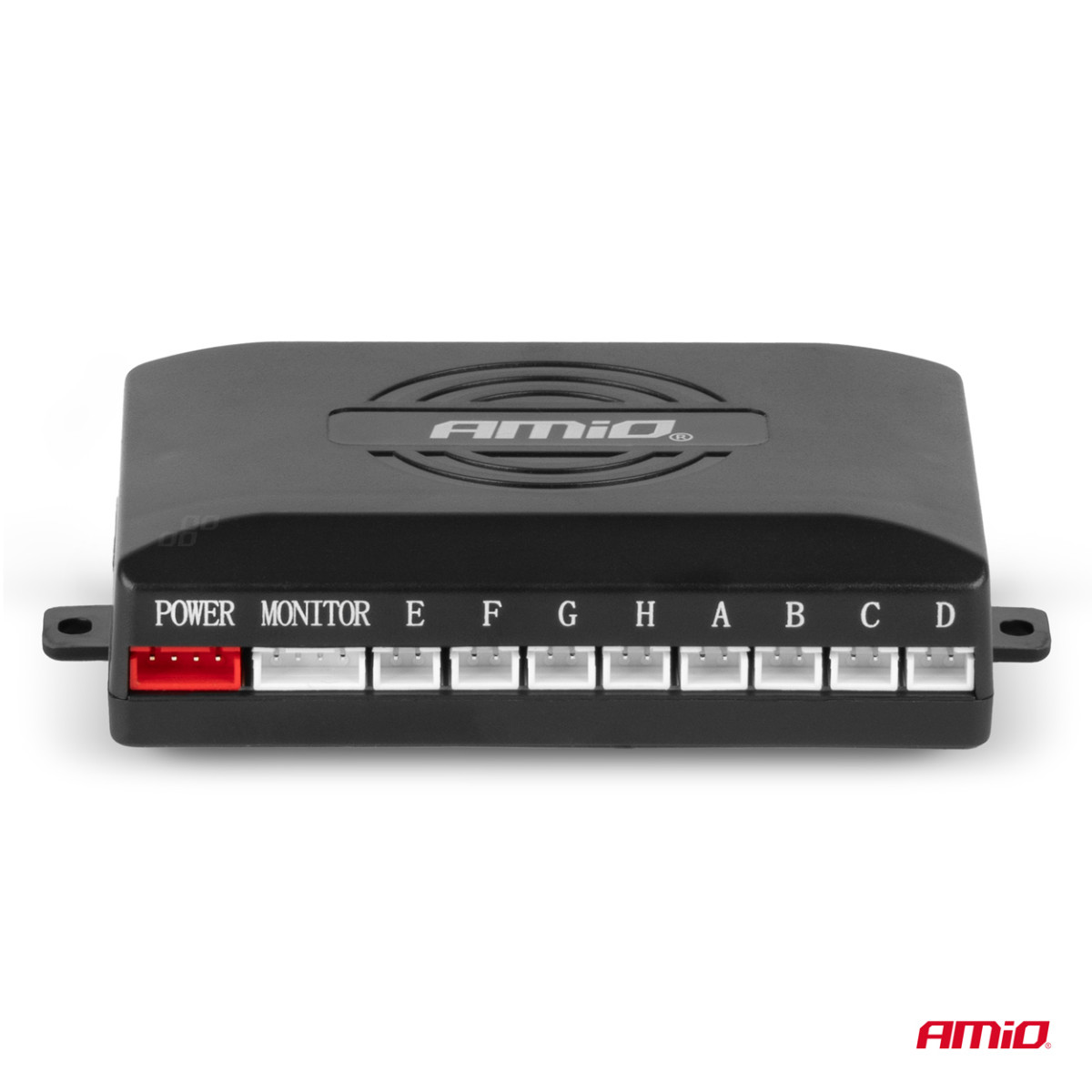

• 8-sensor control panel (A–D rear, E–H front)
• Drill bit for drilling holes in the bumper
• Installation instructions

Specification:

• Working distance/sensitivity: 0-2.5 m
• Voltage: 12V
• Operating frequency range: 40 kHz
• Operating temperature: -30 °C – +70 °C
• Mounting diameter: 16.5 mm
